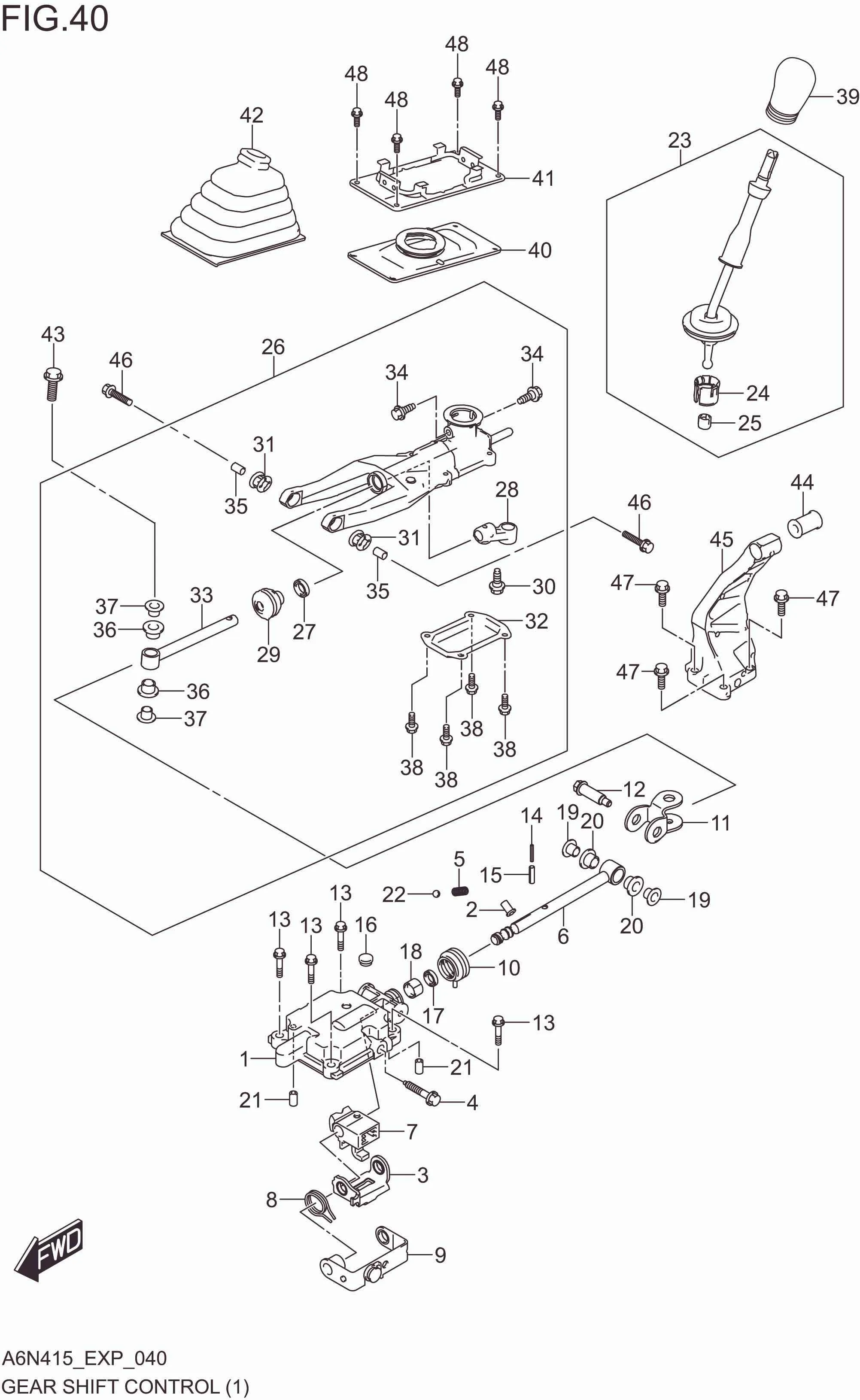

FIG. 040 GEAR SHIFT CONTROL (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	25121M80T20-000	CASE,GEAR SHIFT LEVER	1	Rp388.000
2	25250M53M00-000	LOCATING,SELECT RETURN	1	Rp11.000
3	25310M80T00-000	PLATE, GEAR SHF INTERLOCK	1	Rp248.000
4	25321-84A00-000	BOLT,GEAR SHIFT STOP	1	Rp47.000
5	25415M80T00-000	SPRING,GEAR SHF LOCATING	1	Rp13.000
6	25510M80T00-000	SHAFT, GEAR SHIFT	1	Rp209.000
7	25541M80T00-000	ARM,GEAR SHIFT & SELECT	1	Rp453.000
8	25576M80T00-000	SPRING,GEAR SELECT RETURN	1	Rp15.500
9	25580M80T00-000	PLATE,REV GR SHIFT LIMIT	1	Rp279.000
10	25651M68K00-000	BOOT,SHIFT & SELECT SFT OIL	1	Rp10.500
11	28253M80T00-000	JOINT, GEAR SHF CONT	1	Rp134.000
12	28254M80T00-000	BOLT, CONT SHAFT JOINT	1	Rp23.500
13	09103M08534-000	BOLT (8X30)	4	Rp9.500
14	09205M03049-000	PIN,SPRING (3X25)	1	Rp6.500
15	09205M06023-000	PIN,SPRING (6X25)	1	Rp4.000
16	09250M12020-000	CAP (OD:17)	1	Rp16.500
17	09283M14018-000	SEAL,OIL (14X22X6.0)	1	Rp18.500
18	25243M77P00-000	BUSH,GEAR SHIFT SHAFT	1	Rp12.500
19	09306M12015-000	BUSH (16X10)	2	Rp12.500
20	09320M14032-000	BUSH	2	Rp16.000
21	DISCONTINUE SUB: 04211-09169-000	PIN (9X16)	2	-
22	06111M10004-000	BALL	1	Rp5.500
23	28101M80T00-000	LEVER, GEAR SHIFT CONTROL	1	Rp524.500
24	28116M80T00-000	.SEAT, GEAR SHIFT CONT LEVER	1	Rp11.000
25	28151M80T00-000	.BUSH, GR SHF CONTROL LEVER	1	Rp4.500
26	28102M80T00-000	ARM ASSY, GEAR SHIFT CONT	1	Rp1.584.500
27	25517M80T00-000	.SEAL, GEAR SHIFT SHAFT OIL	1	Rp68.500
28	25531M80T00-000	.ARM, GEAR SHIFT CONTROL	1	Rp89.500
29	25651M80T00-000	.BOOT, SHIFT & SELECT SFT	1	Rp22.500
30	25701-60B10-000	.BOLT,GEAR SHIFT YOKE	1	Rp25.500
31	28119M80T00-000	.BUSH, SHIFT CONTROL ARM	2	Rp17.000
32	28242M80T00-000	.PLATE, GEAR SHIFT CONTROL	1	Rp39.000
33	28270M80T00-000	.SHAFT, GEAR SHIFT CONT	1	Rp134.500
34	28243M80T00-000	.BOLT (8X18.4)	2	Rp29.500
35	28249M80T00-000	.SPACER (8.5X12X17)	2	Rp8.000
36	28273M80T00-000	.BUSH	2	Rp6.500
37	28274M80T00-000	.BUSH	2	Rp6.000
38	01550-0816A-000	.BOLT	4	Rp6.000
39	28113M79M41-C48	KNOB,GR SHF CONT LVR (CHROME/BLACK)	1	Rp155.000
40	28135M80T00-000	BOOT, GEAR SHF LEVER NO.1	1	Rp40.500
41	28137M80T00-000	COVER, GEAR SHIFT CONT BOOT	1	Rp69.500
42	28138M80T00-5PK	BOOT, GEAR SHF LEVER NO.3 (BLACK)	1	Rp63.000
43	28254M80T00-000	BOLT, CONT SHAFT JOINT	1	Rp23.500
44	28222M80T00-000	BUSH, GEAR SHIFT CONT BRACKET	1	Rp18.000
45	28291M80T00-000	BRACKET, GR SHF CONT RR	1	Rp280.000
46	DISCONTINUE SUB: 09118-08147-000	BOLT (8X35)	2	-
47	01551-1030A-000	BOLT	3	Rp27.000
48	02162-0620A-000	SCREW (6X16)	4	Rp5.500
