< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AGS CLUTCH (5AGS)AGS TRANSMISSION GEAR (5AGS)AGS TRANSMISSION CASE (5AGS)AGS GEAR SHIFT FORK (5AGS)AGS ACTUATOR (5AGS)GEAR SHIFT CONTROL (5MT)SELECT LEVER (5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

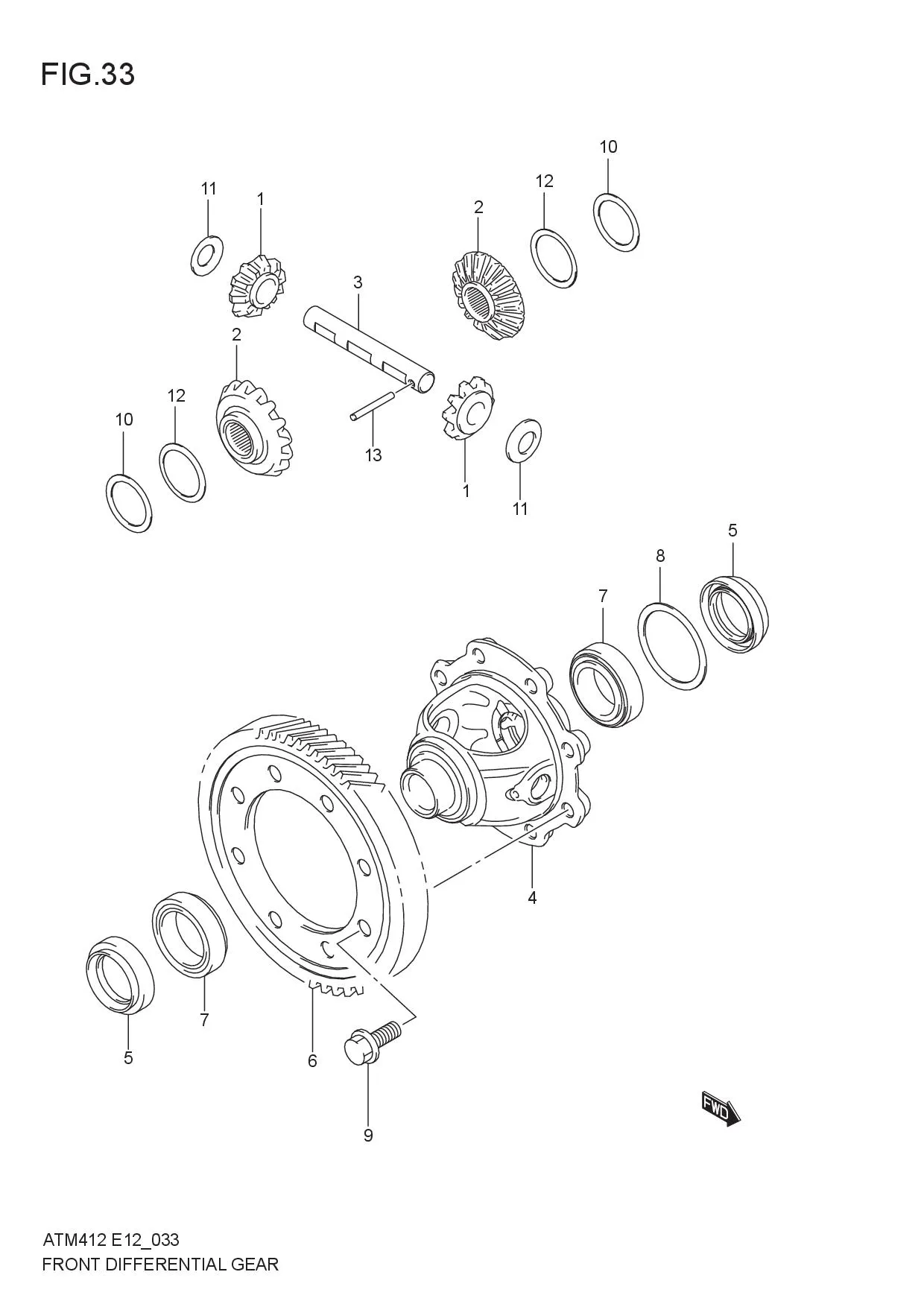

FRONT DIFFERENTIAL GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	27331M55K00-000	PINION, DIFFERENTIAL	2	Rp163.500
2	27341M68K02-000	GEAR, DIFFERENTIAL	2	Rp238.000
3-1	27351M76M20-000 SUB: 27351M76M00-000	SHAFT, DIFFERENTIAL PINION	1	Rp75.000
3-2	27351M76M20-000	SHAFT, DIFFERENTIAL PINION	1	Rp75.000
4	27411M68P00-000	CASE, DIFFERENTIAL	1	Rp571.500
5	27432M74LB0-000 SUB: 27432M74LA0-000	SEAL, DIFF SIDE OIL LH	2	Rp81.500
6	27511M68P20-000	GEAR, FINAL	1	Rp1.690.500
7	27521M83M00-000	BEARING ASSY, DIFF SIDE	2	Rp298.500
8-11	29541M83M00-106	SHIM, DIFF SIDE BRG (T:1.06)	0	Rp18.500
8-14	29541M83M00-118	SHIM, DIFF SIDE BRG (T:1.18)	0	Rp19.500
8-12	29541M83M00-110	SHIM, DIFF SIDE BRG (T:1.10)	0	Rp19.500
8-13	29541M83M00-114	SHIM, DIFF SIDE BRG (T:1.14)	0	Rp19.500
8-15	29541M83M00-122	SHIM, DIFF SIDE BRG (T:1.22)	0	Rp19.500
8-16	29541M83M00-126	SHIM, DIFF SIDE BRG (T:1.26)	0	Rp19.500
8-17	29541M83M00-130	SHIM, DIFF SIDE BRG (T:1.30)	0	Rp19.500
8-18	29541M83M00-134	SHIM, DIFF SIDE BRG (T:1.34)	0	Rp20.500
8-19	29541M83M00-138	SHIM, DIFF SIDE BRG (T:1.38)	0	Rp20.500
8-20	29541M83M00-142	SHIM, DIFF SIDE BRG (T:1.42)	0	Rp20.500
8-9	29541M83M00-098	SHIM, DIFF SIDE BRG (T:0.98)	0	Rp16.500
8-8	29541M83M00-094	SHIM, DIFF SIDE BRG (T:0.94)	0	Rp18.500
8-7	29541M83M00-090	SHIM, DIFF SIDE BRG (T:0.90)	0	Rp16.500
8-6	29541M83M00-086	SHIM, DIFF SIDE BRG (T:0.86)	0	Rp18.500
8-5	29541M83M00-082	SHIM, DIFF SIDE BRG (T:0.82)	0	Rp18.500
8-4	29541M83M00-078	SHIM, DIFF SIDE BRG (T:0.78)	0	Rp18.500
8-3	29541M83M00-074	SHIM, DIFF SIDE BRG (T:0.74)	0	Rp17.000
8-2	29541M83M00-070	SHIM, DIFF SIDE BRG (T:0.70)	0	Rp17.000
8-1	29541M83M00-066	SHIM, DIFF SIDE BRG (T:0.66)	0	Rp15.000
8-10	29541M83M00-102	SHIM, DIFF SIDE BRG (T:1.02)	0	Rp18.500
9	09103-10189-000	BOLT	8	Rp29.000
10-2	09181M35157-000	WASHER,DIFF SIDE GEAR T0.65	0	Rp9.000
10-10	09160M35023-000	WASHER,DIFF SIDE GEAR T1.05	0	Rp10.000
10-9	09160M35018-000	WASHER,DIFF SIDE GEAR T1.0	0	Rp20.500
10-8	09160M35022-000	WASHER,DIFF SIDE GEAR T0.95	0	Rp10.000
10-7	09160M35021-000	WASHER,DIFF SIDE GEAR T0.9	0	Rp10.000
10-6	09181M35159-000	WASHER,DIFF SIDE GEAR T0.85	0	Rp9.000
10-5	DISCONTINUE SUB: 09160B35013N000	WASHER,DIFF SIDE GEAR T0.8	0	-
10-4	09181M35158-000	WASHER,DIFF SIDE GEAR T0.75	0	Rp9.000
10-3	09160M35014-000	WASHER,DIFF SIDE GEAR T0.7	0	Rp10.000
10-1	09160M35015-000	WASHER,DIFF SIDE GEAR T0.6	0	Rp6.500
11	09164M17006-000	WASHER (17.3X32X1)	2	Rp8.000
12	09164-35003-000	WASHER (35.2X44X0.3)	2	Rp47.500
13	09205M05007-000	PIN (5X36)	1	Rp5.000
