IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AGS CLUTCH (5AGS)AGS TRANSMISSION GEAR (5AGS)AGS TRANSMISSION CASE (5AGS)AGS GEAR SHIFT FORK (5AGS)AGS ACTUATOR (5AGS)GEAR SHIFT CONTROL (5MT)SELECT LEVER (5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

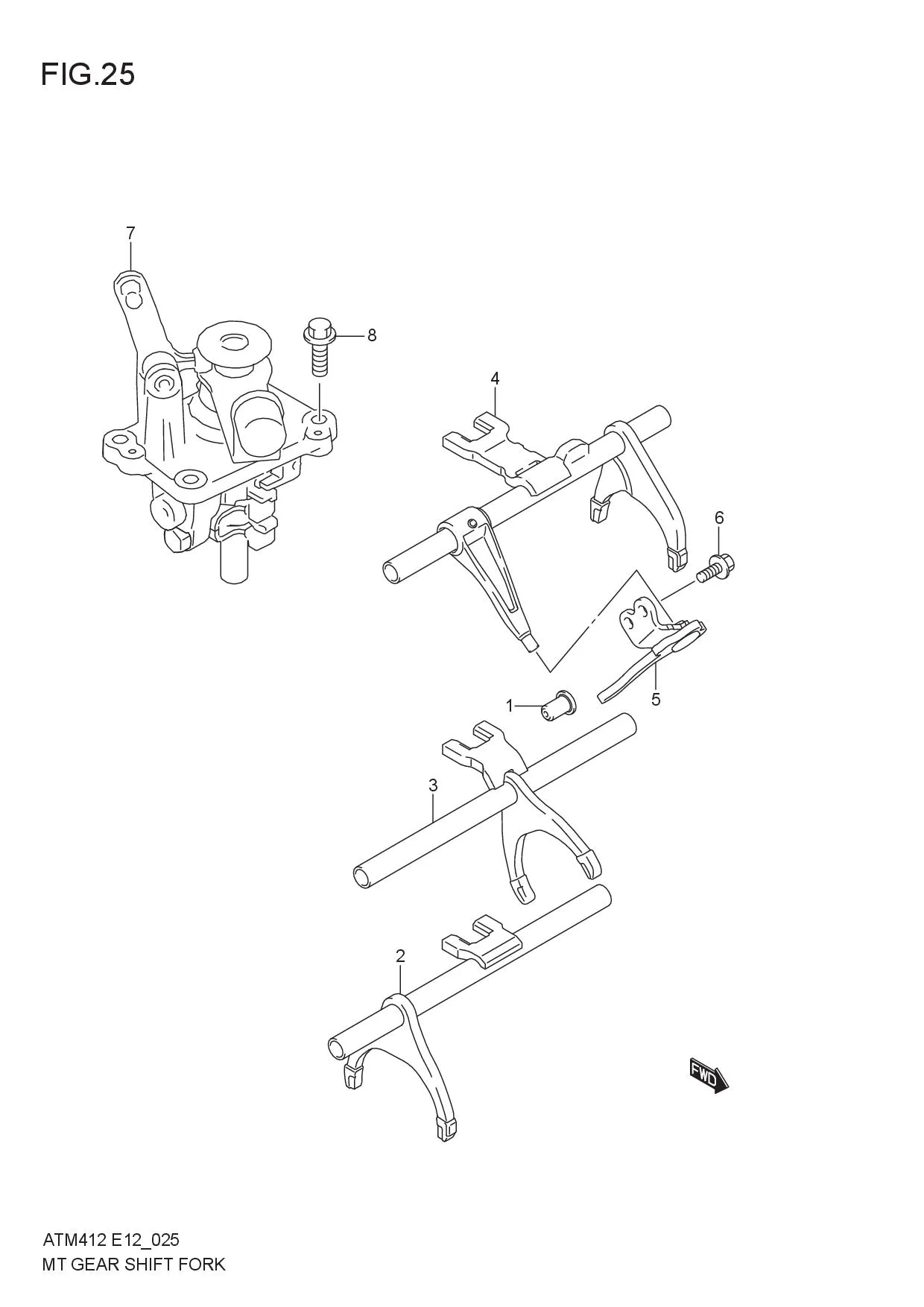

MT GEAR SHIFT FORK (5MT)

MT GEAR SHIFT FORK (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1-1 25250M53M00-000 LOCATING, REV SHIFT 1 Rp11.000 VENDOR:IFB AUTOMOTIVE
1-2 25250M53M20-000 LOCATING, REV SHIFT 1 Rp20.500 VENDOR:TUBE INVESTMENTS OF INDIIMITED
2-1 25401M68P20-000
SUB: 25401M68P00-000		 SHAFT, LOW SPEED GEAR SHF 1 Rp554.500 VENDOR:KHM DRIVE SYSTEMS
2-2 25401M68P20-000 SHAFT, LOW SPEED GEAR SHF 1 Rp554.500 VENDOR:BEST KOKI AUTOMOTIVE
3 25402M68P00-000 SHAFT, HIGH SPEED GEAR SHF 1 Rp515.000
4 25403M68PE0-000 SHAFT, 5TH & REV GR SHF 1 Rp675.000
5-1 25460M68P00-000 LEVER, REVERSE GEAR SHIFT 1 Rp61.500 VENDOR:TUBE INVESTMENTS OF INDIIMITED
5-2 25460M68P20-000 LEVER, REVERSE GEAR SHIFT 1 Rp55.000 VENDOR:IFB INDUSTRIES LIMITED
6 09103M06317-000 BOLT(6X16) 2 Rp6.500
7 25010M68P41-000 SHAFT ASSY, GEAR SHIFT & 1 Rp1.621.500
8 01550M0825B-000 BOLT 4 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
