Preview Engine Transmission Electrical Suspension Body

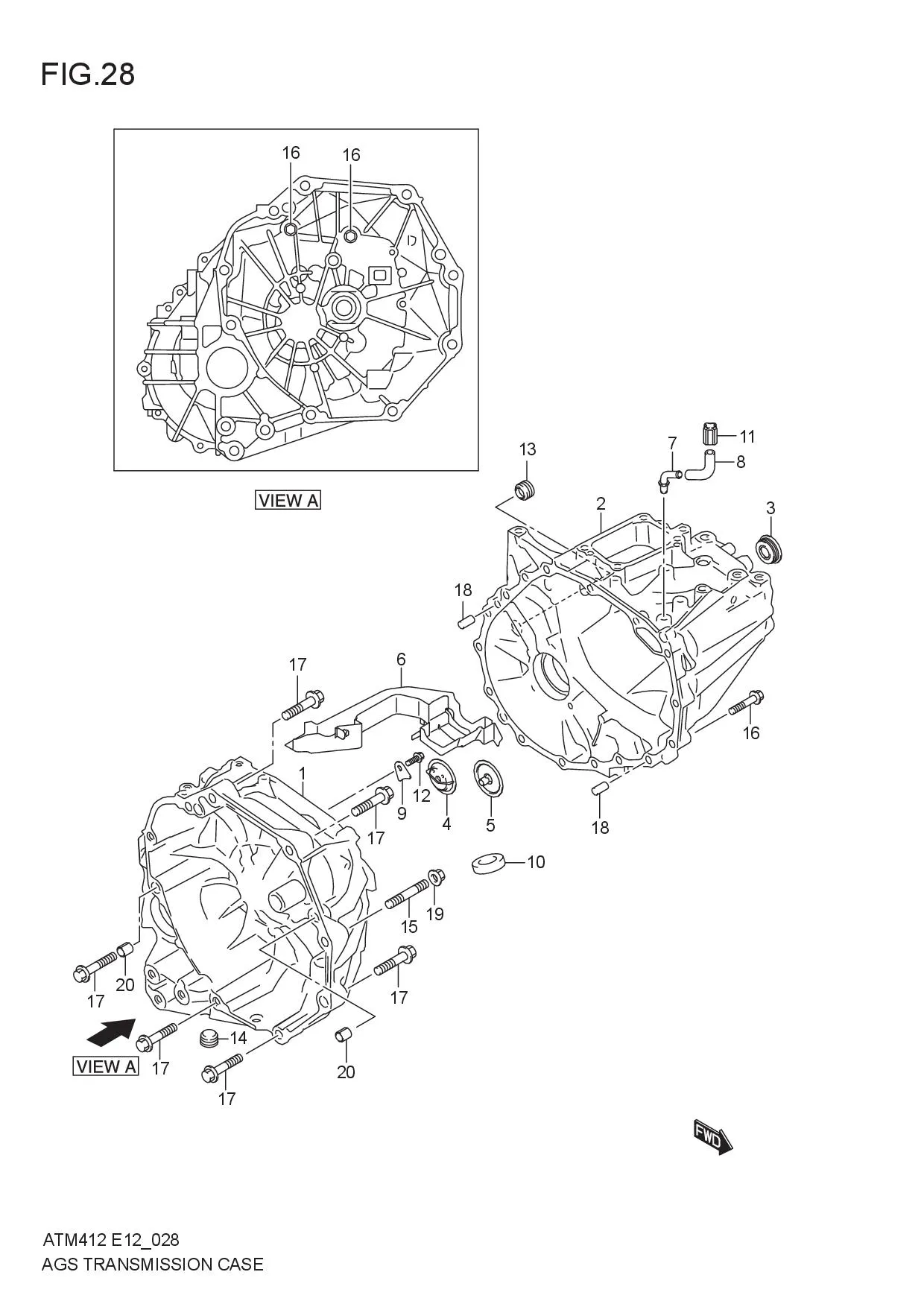

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24711M68P22-000	CASE, TRANSAXLE RIGHT	1	Rp4.703.000
2	24721M66RE1-000 SUB: 24721M66RE0-000	CASE, TRANSAXLE LEFT	1	Rp3.923.500
3	24726M76M00-000	PLUG, TRANSAXLE CASE	1	Rp32.000
4-1	24733M76M00-000	CHANNEL, OIL COUNTERSHAFT	1	Rp11.500	VENDOR:PRECISION TECH ENTERPRISES
4-2	24733M76M00-000 SUB: 24733M76M20-000	CHANNEL, OIL COUNTERSHAFT	1	Rp11.500	VENDOR:SUN VACUUM FORMERS PVT.LTD
5	24734M76M00-000	CHANNEL, OIL INPUT SHAFT	1	Rp13.000
6-1	24811M76M00-000	GUTTER, INPUT OIL	1	Rp65.500	VENDOR:PRECISION TECH ENTERPRISES
6-2	24811M76M00-000 SUB: 24811M76M20-000	GUTTER, INPUT OIL	1	Rp65.500	VENDOR:SUN VACUUM FORMERS PVT.LTD
7	24821M86J00-000	UNION, BREATHER	1	Rp19.000
8	24825M63J00-000 SUB: 24825M86J00-000	HOSE, BREATHER	1	Rp6.000
9-2	24852M76M21-000	PLATE, COUNTERSHAFT R BRG	1	Rp8.000
9-1	24852M76M01-000	PLATE, COUNTERSHAFT R BRG	1	Rp7.000
10	24861M76M00-000	MAGNET, OIL CLEANER	1	Rp31.000
11	27991M79G00-000	PLUG, BREATHER	1	Rp35.000
12	09103M06317-000	BOLT	1	Rp6.500
13	09246M16009-000 SUB: 09246M16016-000	PLUG	1	Rp14.500
14	09246M16017-000	PLUG	1	Rp24.500
15	01421-1045A-000	BOLT	1	Rp29.500
16	01550-0840A-000 SUB: 01550B0840AN000	BOLT	16	Rp3.500
17	01550-1050A-000	BOLT	6	Rp6.000
18	04211M13189-000 SUB: 04211M13149-000	PIN	2	Rp9.000
19	08316-1010A-000 SUB: 08316B1010AN000	NUT	1	Rp3.500
20	11519M67L00-000	PIN	2	Rp6.000
