IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AGS CLUTCH (5AGS)AGS TRANSMISSION GEAR (5AGS)AGS TRANSMISSION CASE (5AGS)AGS GEAR SHIFT FORK (5AGS)AGS ACTUATOR (5AGS)GEAR SHIFT CONTROL (5MT)SELECT LEVER (5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

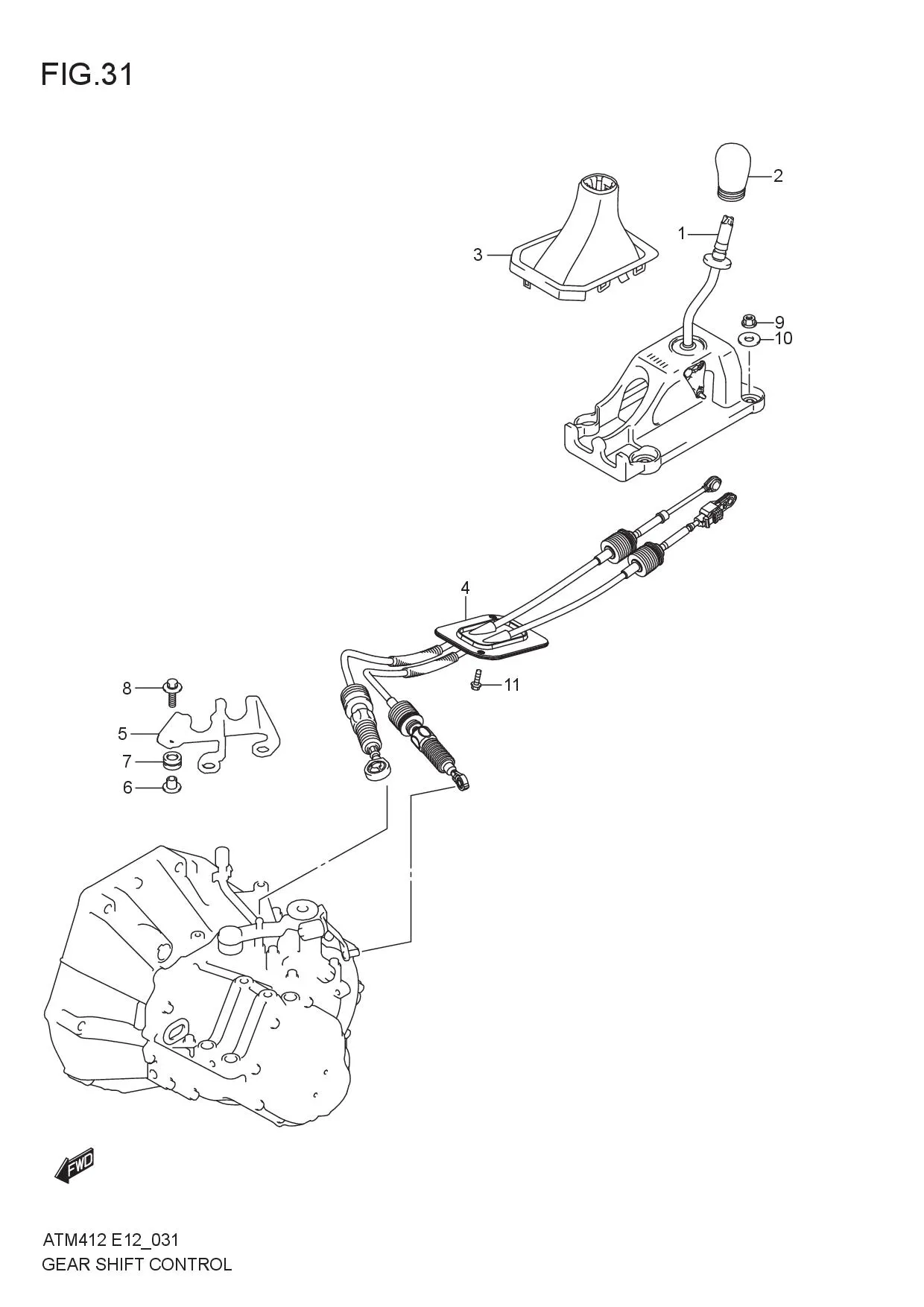

GEAR SHIFT CONTROL (5MT)

GEAR SHIFT CONTROL (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 28100M60M21-000 LEVER ASSY, GEAR SHF CONT 1 Rp458.000
2-1 28113M79M21-5PK
SUB: 28113M79M20-5PK		 KNOB, GEAR SHIFT CONT LEVER 1 Rp129.500 GL
2-2 28113M79M41-C48
SUB: 28113M79M00-C48		 KNOB, GEAR SHIFT CONT LEVER 1 Rp155.000 GX
3-1 28130M66R00-5PK BOOT, SHIFT LEVER 1 Rp71.500 GL
3-2 28130M66R20-CP3 BOOT, SHIFT LEVER 1 Rp578.500 GX
4 28300M66R00-000 CABLE ASSY, SHIFT & SELECT CONTROL 1 Rp841.500
5 28391M68P00-000 BRACKET, T/M CONT CABLE 1 Rp66.000
6 28392M55KD0-000 SPACER, T/M CONT CABLE BRACKET 3 Rp8.000
7 28393M79M00-000 CUSHION, T/M CONT CABLE BRACKET 3 Rp20.500
8 09118-08167-000 BOLT 3 Rp23.000
9 09159-08127-000
SUB: 09159M08153-000		 NUT 4 Rp11.000
10 09160-08151-000
SUB: 09160M08151-000		 WASHER 4 Rp16.500
11 02162-0620A-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
