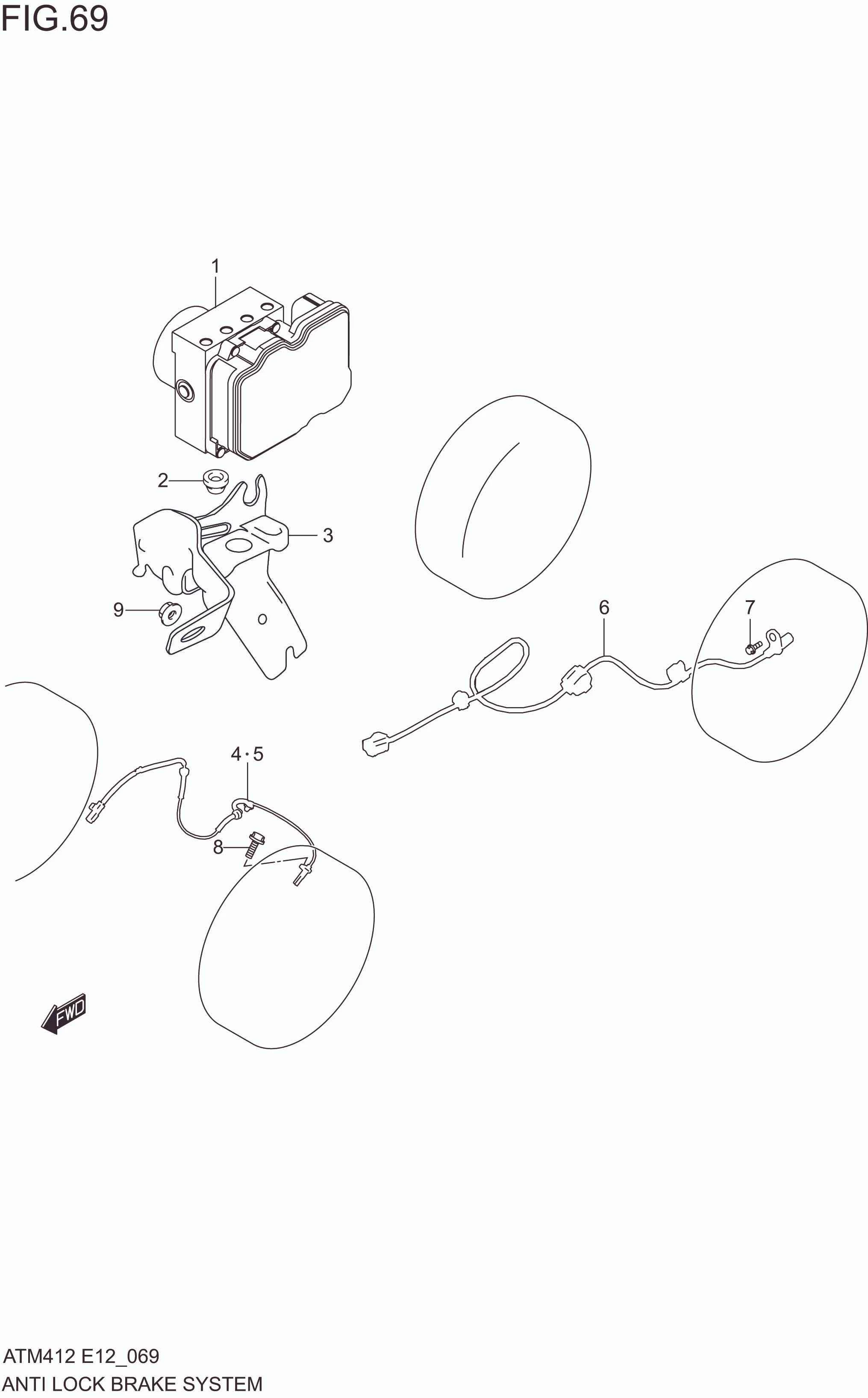

FIG. 69 ANTI LOCK BRAKE SYSTEM

FIG. 69 ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1-1 56130M66R01-000
SUB: 56130M66R00-000		 ACTUATOR ASSY, ABS 1 - TYPE1,TYPE2
1-2 56130M66RA0-000 ACTUATOR ASSY,ESP 1 Rp10.733.000 TYPE-3;GL
1-3 56130M66RB0-000 ACTUATOR ASSY,ESP 1 Rp10.733.000 TYPE-3;GLX
2 56121-58J00-000 DAMPER, ACTUATOR MOUNT 1 Rp40.500
3-1 56161M66R00-000 BRACKET, ACTUATOR 1 Rp44.500 TYPE-1,TYPE-2
3-2 56161M81R00-000 BRACKET, ACTUATOR 1 Rp71.500 TYPE-3
4 56210M62R00-000 SENSOR, FR WHEEL RH 1 Rp424.000
5 56220M76R00-000 SENSOR, FR WHEEL LH 1 Rp423.500
6-1 56310M62R01-000 SENSOR, RR WHEEL 2 Rp349.500 TYPE-1
6-2 56310M76R00-000 SENSOR, RR WHEEL 2 Rp319.500 TYPE-2
7 01550M0612A-000 BOLT,RR WHEEL SENSOR 6 Rp5.000
8 02162-0616A-000 BOLT,FR WHEEL SENSOR 2 Rp3.000
9 08316-1008A-000 NUT,ACTUATOR BRACKET 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
