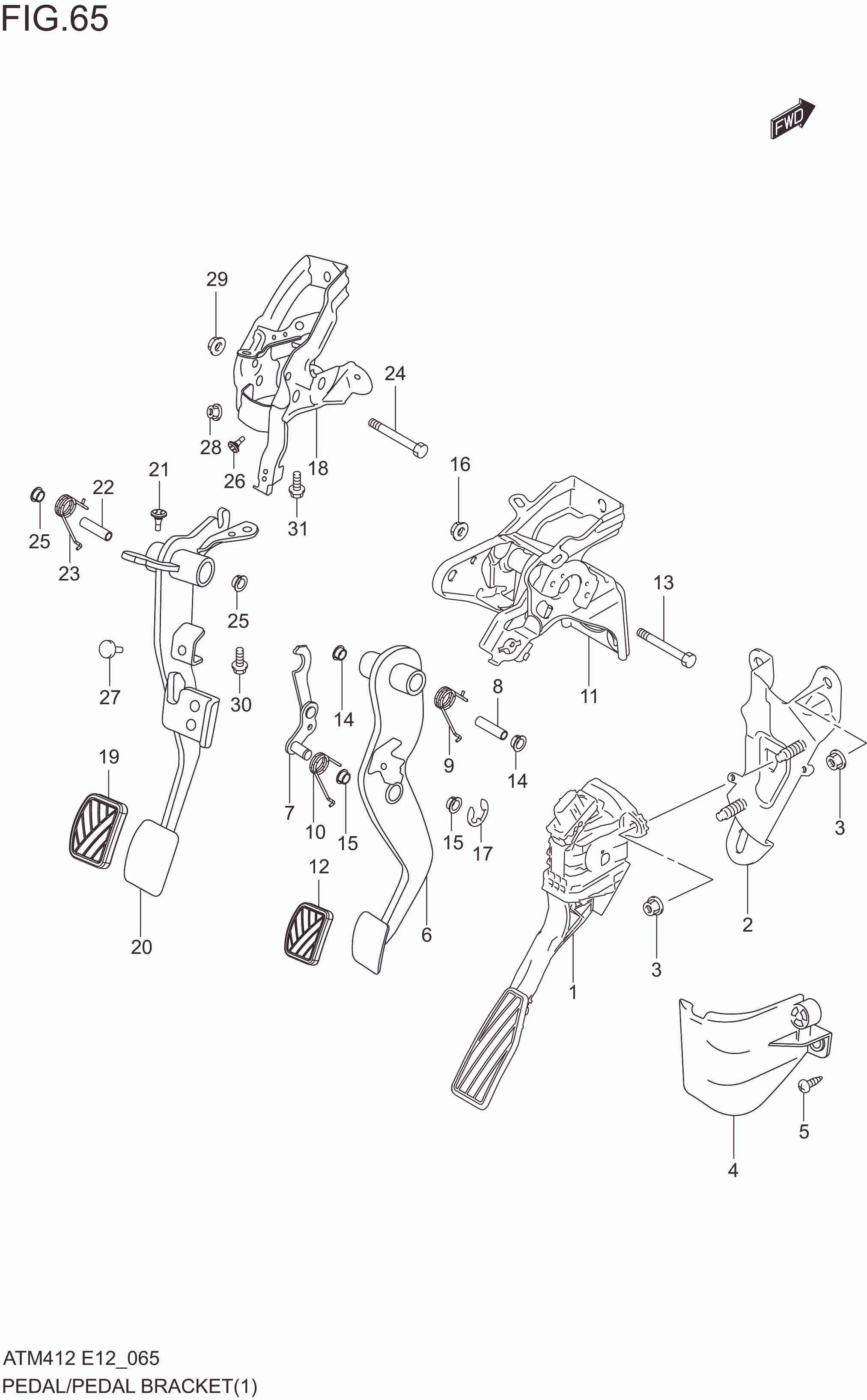

FIG. 65 PEDAL/PEDAL BRACKET (5MT)

FIG. 65 PEDAL/PEDAL BRACKET (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1-2 49400M69R40-000 PEDAL ASSY, ACCELERATOR 1 Rp642.000 TYPE-2,TYPE-3
1-1 49400M66R40-000 PEDAL ASSY, ACCELERATOR 1 Rp830.000 TYPE-1
2 49511M66R00-000 BRACKET, ACCELERATOR PEDAL 1 Rp31.500
3 09159-08127-000 NUT 4 Rp11.000
4 49451M62R00-000 COVER,ACCELERATOR PEDAL 1 Rp24.500
5 03241M0512A-000 SCREW,ACCEL PEDAL COVER 2 Rp4.000
6 49610M66RL0-000 PEDAL, BRAKE 1 Rp112.500
7 49630M62R00-000 LEVER COMP,BRAKE PEDAL 1 Rp62.000
8 49671M74P00-000 SPACER,BRAKE PEDAL SHAFT 1 Rp10.500
9 49691M66R10-000 SPRING,BRAKE PEDAL RETURN 1 Rp16.000
10 49691M73H20-000 SPRING,BRAKE PEDAL RELEASE 1 Rp9.000
11 49710M62R00-000 BRACKET COMP,BRAKE PEDAL 1 Rp134.000
12 49751M58J00-000 PAD,PEDAL 1 Rp9.500
13 09100-10124-000 BOLT,BRAKE PEDAL SHAFT 1 Rp19.500
14 09306M13004-000 BUSH,PEDAL BOSS 2 Rp11.500
15 09306M13004-000 BUSH,PEDAL BOSS 2 Rp11.500
16 08316-1010A-000 NUT,BRAKE PEDAL SHAFT 1 Rp3.500
17 08332-1110A-000 E-RING,BRAKE PEDAL LEVER COMP 1 Rp12.500
18 49720M62R00-000 BRACKET,CLUTCH PEDAL 1 Rp156.000
19 49751M58J00-000 PAD, PADEL 1 Rp9.500
20 49810M66R20-000 PEDAL, CLUTCH 1 Rp162.500
21 49825M74L10-000 CUSHION,CLUTCH PEDAL START SW 1 Rp9.000
22 49871M80F00-000 SPACER,CLUTCH PEDAL SHAFT 1 Rp8.500
23 49891M62R00-000 SPRING,CLUTCH PEDAL 1 Rp9.000
24 DISCONTINUE
SUB: 09100-10304-000		 BOLT 1 -
25 09306M13004-000 BUSH 2 Rp11.500
26 09321M06026-000 CUSHION 1 Rp4.500
27 09321-06033-000 CUSHION 1 Rp19.000
28 08310-0006A-000 NUT 1 Rp2.500
29 08316-1010A-000 NUT 1 Rp3.500
30 09100-10324-000 BOLT,CLUTCH PEDAL SHAFT 1 Rp51.500
31 09100M06150-000 BOLT,CLUTCH PEDAL STOP 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
