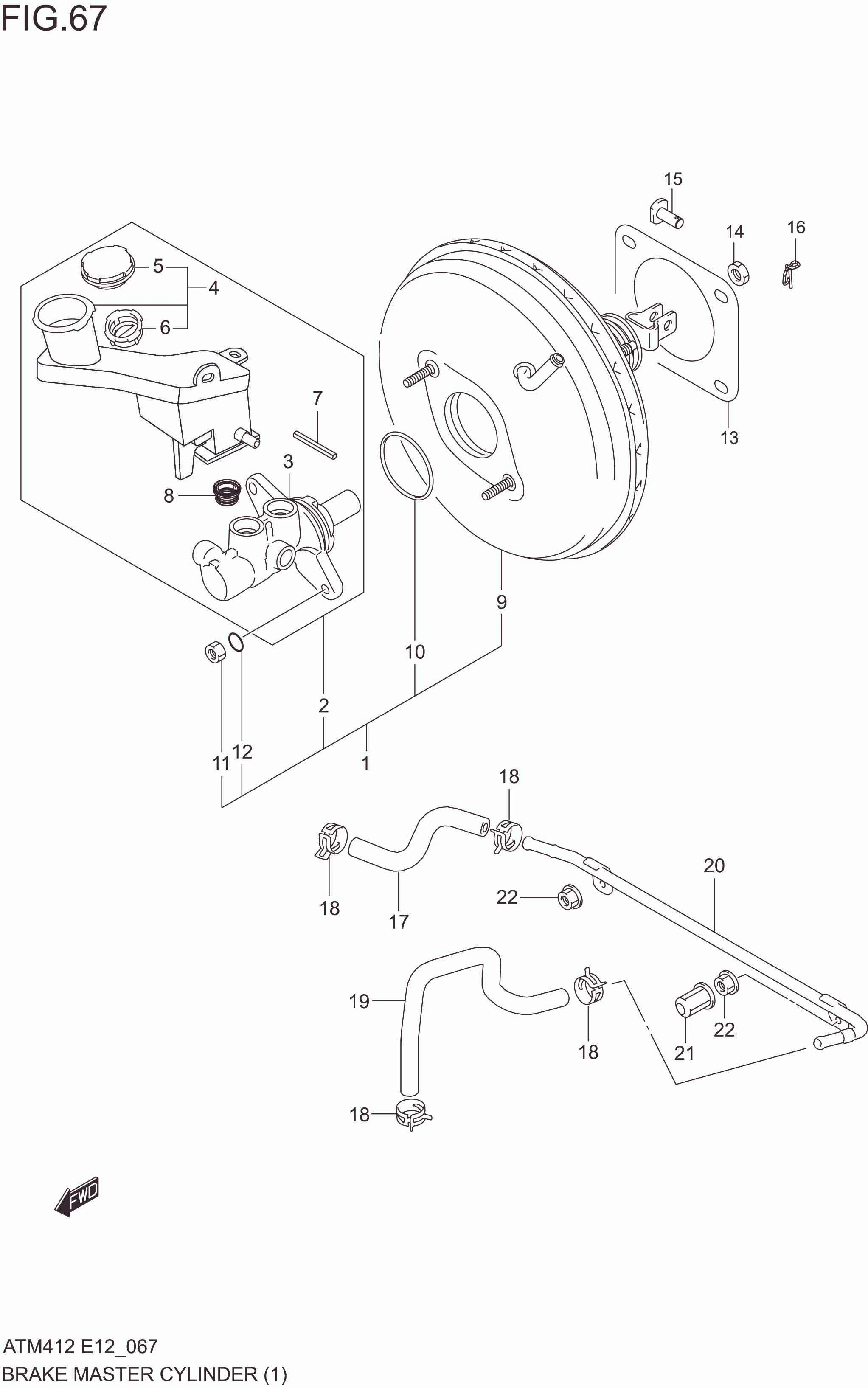

FIG. 67 BRAKE MASTER CYLINDER

FIG. 67 BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 51000M81R30-000 BOOSTER MASTER CYLINDER ASSY 1 Rp2.416.500 TYPE-3
1-1 51000M66R00-000 BOOSTER MASTER CYLINDER ASSY 1 Rp2.342.000 TYPE-1,TYPE-2
2-1 51100M66R20-000 .CYLINDER ASSY, BRAKE MASTER 1 Rp2.069.000 TYPE-1,TYPE-2
2-2 51100M81R10-000 .CYLINDER ASSY, BRAKE MASTER 1 Rp1.734.500 TYPE-3
3-1 51110M66R00-000 ..MASTER CYLINDER ASSY W/RES 1 Rp1.682.500 TYPE-1,TYPE-2
3-2 51110M81R10-000 ..MASTER CYLINDER ASSY W/RES 1 Rp1.220.000 TYPE-3
4-1 51200M66R00-000 ..RESERVOIR ASSY, BRAKE MASTER 1 Rp554.500 TYPE-1,TYPE-2
4-2 51200M81R00-000 ..RESERVOIR ASSY, BRAKE MASTER 1 Rp563.500 TYPE-3
5-1 51220M60M00-000 ...CAP, RESERVOIR 1 Rp41.000 TYPE-1,TYPE-2
5-2 51220M79M00-000 ...CAP, RESERVOIR 1 Rp46.000 TYPE-3
6 51240M67LA0-000 ...FILTER 1 Rp51.500
7 51233M65J00-000 ..PIN 1 Rp29.500
8-1 51232M74L00-000 ..GROMMET 2 Rp37.500 TYPE-1,TYPE-2
8-2 51232M76M00-000 ..GROMMET KIT 1 Rp20.000 TYPE-3
9-1 51300M66R00-000 .BOOSTER ASSY, BRAKE MASTER 1 Rp1.714.000 TYPE-1,TYPE-2
9-2 51300M81R20-000 .BOOSTER ASSY, BRAKE MASTER 1 Rp1.076.000 TYPE-3
10-1 51311M68K00-000 .O RING 1 Rp10.500 TYPE-1,TYPE-2
10-2 51311M76M00-000 .O RING 1 Rp41.500 TYPE-3
11-1 08310M68K00-000 .NUT 2 Rp11.500 TYPE-1,TYPE-2
11-2 51313M76M00-000 .NUT KIT 1 Rp10.500 TYPE-3
12 08321M0108A-000
SUB: 08321M01083-000		 .WASHER 2 Rp11.000
13 51132M79G10-000 PACKING, BRAKE MASTER CYLINDER 1 Rp5.500
14 09159-08127-000 NUT 4 Rp11.000
15 51120M60M00-000 PIN, BRAKE MASTER CYLINDER 1 Rp10.500
16 09385M08L01-000 CLIP 1 Rp9.000
17-1 51020M66R50-000 HOSE COMP,VACUUM BSTR TO PIPE 1 Rp22.500 TYPE-1,TYPE-2
17-2 51020M69R00-000 HOSE COMP,VACUUM BSTR TO PIPE 1 Rp154.000 TYPE-3
18 09401M15422-000 CLAMP 4 Rp9.000
19 51821M66R50-000 HOSE,BRAKE VACUUM PIPE TO INTK 1 Rp34.000
20 51870M66R50-000 PIPE COMP,BRAKE VACUUM 1 Rp90.000
21 75162M63H10-000 CLIP,STUD COVER 1 Rp8.000
22 08316-1006A-000 NUT,BRAKE VACUUM PIPE 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
