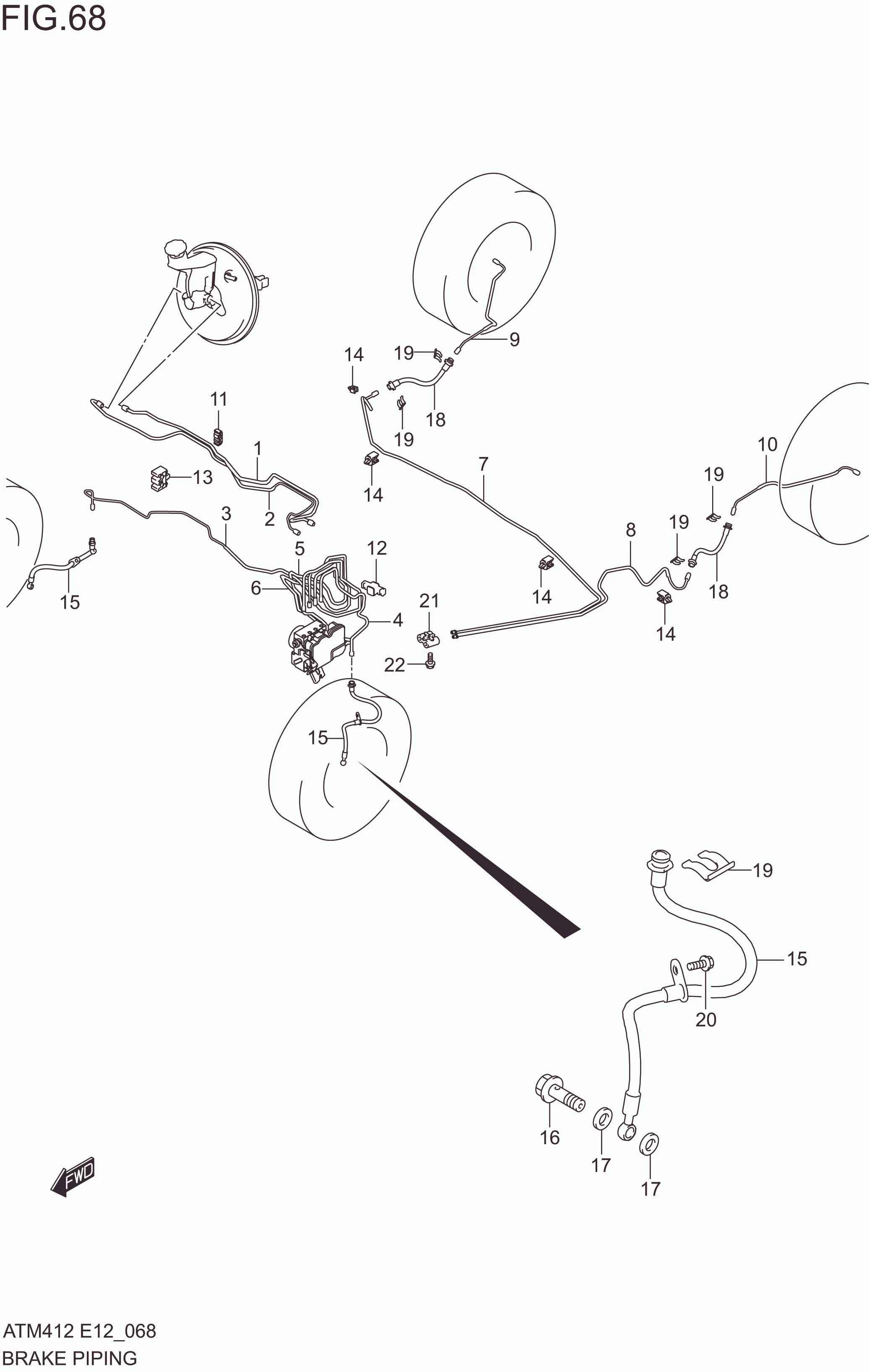

FIG. 68 BRAKE PIPING

FIG. 68 BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1-2 51410M81R10-000 PIPE,MA PRI TO HU 1 Rp71.500 TYPE-3
1-1 51410M66R60-000 PIPE,MA PRI TO HU 1 Rp59.000 TYPE-1,TYPE-2
2-4 51420M66R60-000 PIPE,MA SEC TO HU 1 Rp64.000 TYPE-1,TYPE-2
2-2 51420M81R10-000 PIPE,MA SEC TO HU 1 Rp84.500 TYPE-3
3 51430M66R60-000 PIPE,HU TO FR BK HOSE,R 1 Rp102.000
4 51440M66R60-000 PIPE,HU TO FR BK HOSE,L 1 Rp39.000
5 51450M66R60-000 PIPE,HU TO JOINT,R 1 Rp71.000
6 51460M66R60-000 PIPE,HU TO JOINT,L 1 Rp65.500
7-1 51470M66R00-000 PIPE,JOINT TO RR BK HOSE,R 1 Rp191.000 TYPE-1
7-2 51470M66R10-000 PIPE,JOINT TO RR BK HOSE,R 1 Rp137.500 TYPE-2,TYPE-3
8-1 51480M66R00-000 PIPE,JOINT TO RR BK HOSE,L 1 Rp135.500 TYPE-1
8-2 51480M66R10-000 PIPE,JOINT TO RR BK HOSE,L 1 Rp101.000 TYPE-2,TYPE-3
9 51510M66R00-000 PIPE,RR BK HOSE TO RR W/C,R 1 Rp39.500
10 51520M66R00-000 PIPE,RR BK HOSE TO RR W/C,L 1 Rp39.500
11-1 51751M67P00-000 CLAMP,BK PIPE DASH TRIPLE 1 Rp8.000 TYPE-1,TYPE-2
11-2 51751M66R10-000 CLAMP,BK PIPE DASH TRIPLE 1 Rp8.000 TYPE-3
12 51751M68P00-000 CLAMP,BK PIPE 4 1 Rp46.000
13-1 51761-70F00-000 CLAMP,BK PIPE DASH DOUBLE 1 Rp33.500 TYPE-1,TYPE-2
13-2 51761M81R00-000 CLAMP,BK PIPE DASH DOUBLE 1 Rp6.500 TYPE-3
14 51761M60M20-000 CLAMP,BK PIPE REAR FL SINGLE 4 Rp5.500
15 51550M69R01-000
SUB: 51550M69R00-000		 HOSE, FR BRAKE FLEXIBLE 2 Rp125.000
16 51561M55K00-000 BOLT, FR DISC FLEXIBLE HOSE 2 Rp8.500
17 51562M55K00-000 WASHER, FR DISC FLEXIBLE HOSE 4 Rp8.500
18 51570M69R00-000 HOSE, RR BRAKE FLEXIBLE 2 Rp111.000
19 09383M13005-000 E-RING 6 Rp7.000
20 01551-0816C-000 BOLT 2 Rp13.500
21 51630M70F00-000 JOINT, 4WAY BRAKE 1 Rp122.000
22 02162-0625A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
