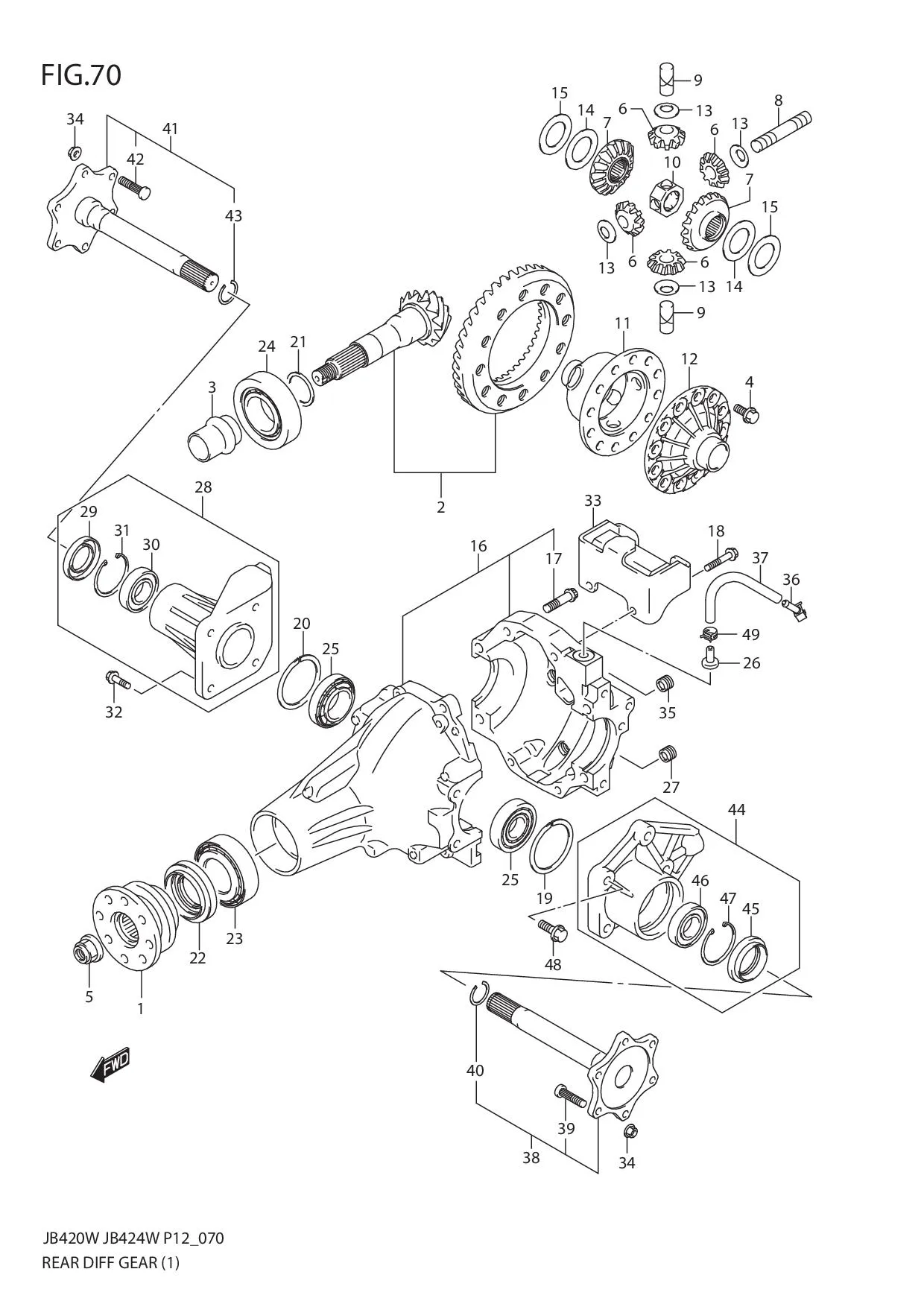

FIG.70 REAR DIFF GEAR (JB420W)

FIG.70 REAR DIFF GEAR (JB420W)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 27110-66J10-000		 FLANGE, UNIVERSAL JOINT 1 -
2-1 DISCONTINUE
SUB: 27300-66840-000		 BEVEL PINION & GEAR SET 1 - MT
2-2 DISCONTINUE
SUB: 27300-66831-000		 BEVEL PINION & GEAR SET 1 - AT
3 27315-78E50-000 SPACER 1 Rp191.500
4 DISCONTINUE
SUB: 27323-54J00-000		 BOLT, BEVEL GEAR 12 -
5 27375-60A00-000 NUT 1 Rp78.000
6 DISCONTINUE
SUB: 27331-68D00-000		 PINION, DIFFERENTIAL 4 -
7 DISCONTINUE
SUB: 27341-66J10-000		 GEAR, DIFFERENTIAL 2 -
8 DISCONTINUE
SUB: 27351-68D00-000		 SHAFT, DIFF PINION NO.1 1 -
9 DISCONTINUE
SUB: 27355-68D00-000		 SHAFT, DIFF PINION NO.2 2 -
10 DISCONTINUE
SUB: 27356-68D00-000		 JOINT, DIFF PINION 1 -
11 DISCONTINUE
SUB: 27421-66J10-000		 CASE, DIFFERENTIAL RH 1 -
12 DISCONTINUE
SUB: 27411-66J10-000		 CASE, DIFFERENTIAL LH 1 -
13 09164-19003-000 WASHER 4 Rp27.500
14 DISCONTINUE
SUB: 09164-40012-000		 WASHER 2 -
15-1 09181-40037-000 SHIM (T:0.6) 0 Rp29.000
15-2 09181-40038-000 SHIM (T:0.7) 0 Rp31.000
15-3 09181-40039-000 SHIM (T:0.8) 0 Rp31.000
16 DISCONTINUE
SUB: 27450-66J20-000		 CARRIER ASSY, DIFFERENTIAL 1 -
17 09111-12010-000 •BOLT (12X58) 4 Rp54.500
18 01550-1060A-000 BOLT 4 Rp5.500
19-2 DISCONTINUE
SUB: 27453-54J10-185		 SHIM (T:1.85) 0 -
19-3 DISCONTINUE
SUB: 27453-54J10-195		 SHIM (T:1.95) 0 -
19-4 DISCONTINUE
SUB: 27453-54J10-200		 SHIM (T:2.00) 0 -
19-5 DISCONTINUE
SUB: 27453-54J10-205		 SHIM (T:2.05) 0 -
19-6 DISCONTINUE
SUB: 27453-54J10-215		 SHIM (T:2.15) 0 -
19-7 DISCONTINUE
SUB: 27453-54J10-225		 SHIM (T:2.25) 0 -
19-1 DISCONTINUE
SUB: 27453-54J10-175		 SHIM (T:1.75) 0 -
20-4 DISCONTINUE
SUB: 27453-54J00-300		 SHIM (T:3.00) 0 -
20-7 DISCONTINUE
SUB: 27453-54J00-325		 SHIM (T:3.25) 0 -
20-6 DISCONTINUE
SUB: 27453-54J00-315		 SHIM (T:3.15) 0 -
20-5 DISCONTINUE
SUB: 27453-54J00-305		 SHIM (T:3.05) 0 -
20-3 DISCONTINUE
SUB: 27453-54J00-295		 SHIM (T:2.95) 0 -
20-2 DISCONTINUE
SUB: 27453-54J00-285		 SHIM (T:2.85) 0 -
20-1 DISCONTINUE
SUB: 27453-54J00-275		 SHIM (T:2.75) 0 -
21-12 09181-35125-000 SHIM (T:1.30) 0 Rp22.500
21-11 09181-35124-000 SHIM (T:1.27) 0 Rp30.500
21-3 DISCONTINUE
SUB: 09181-35112-000		 SHIM (T:1.03) 0 -
21-10 09181-35122-000 SHIM (T:1.24) 0 Rp31.000
21-9 09181-35121-000 SHIM (T:1.21) 0 Rp30.500
21-8 09181-35119-000 SHIM (T:1.18) 0 Rp31.000
21-6 09181-35117-000 SHIM (T:1.12) 0 Rp31.000
21-7 09181-35118-000 SHIM (T:1.15) 0 Rp22.500
21-1 09181-35101-000
SUB: 09181-35023-000		 SHIM (T:0.30) 0 Rp14.500
21-2 09181-35111-000 SHIM (T:1.00) 0 Rp32.500
21-4 09181-35114-000 SHIM (T:1.06) 0 Rp32.000
21-5 09181-35115-000 SHIM (T:1.09) 0 Rp32.000
22 09283-40027-000
SUB: 09283-40022-000		 SEAL, OIL (40X72X11) 1 Rp91.000
23 09265-30017-000 BEARING (30X72X20.75) 1 Rp487.000
24 09265-35011-000 BEARING (35X80X22.75) 1 Rp690.000
25 09265-45002-000 BEARING (45.2X80X19.8) 2 Rp636.000
26 09364-08004-000 UNION, BREATHER 1 Rp13.000
27 09246-16021-000
SUB: 09246-16010-000		 PLUG (L:15) 1 Rp48.000
28 DISCONTINUE
SUB: 27670-66J00-000		 RETAINER, REAR DRIVE RH 1 -
29 09283-35052-000 •SEAL, OIL (35X62X10) 1 Rp81.000
30 DISCONTINUE
SUB: 08133-62067-000		 •BEARING 1 -
31 08331-41629-000
SUB: 08331-4162A-000		 •CIRCLIP 1 Rp27.000
32 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 4 Rp25.500
33 DISCONTINUE
SUB: 27475-66J01-000		 DAMPER, DIFF CARRIER 1 - MT
34 09159-10116-000 NUT 12 Rp18.000
35 09246-16021-000
SUB: 09246-16010-000		 PLUG (L:15) 1 Rp48.000
36 DISCONTINUE
SUB: 27992-68H00-000		 UNION, BREATHER 1 -
37 09352-70119-600
SUB: 09352-70113-600		 HOSE, BREATHER 1 Rp86.500 L:600->260
38 DISCONTINUE
SUB: 27480-66J01-000		 SHAFT, RR DRIVE LH 1 -
39 DISCONTINUE
SUB: 09119-10083-000		 •BOLT (10X30) 6 -
40 DISCONTINUE
SUB: 09381-27002-000		 •RING, SNAP 1 -
41 DISCONTINUE
SUB: 27490-66J01-000		 SHAFT, REAR DRIVE RH 1 -
42 DISCONTINUE
SUB: 09119-10083-000		 •BOLT (10X30) 6 -
43 DISCONTINUE
SUB: 09381-27002-000		 •RING, SNAP 1 -
44 DISCONTINUE
SUB: 27660-66J00-000		 RETAINER, REAR DRIVE LH 1 -
45 09283-35052-000 •SEAL, OIL (35X62X10) 1 Rp81.000
46 DISCONTINUE
SUB: 08133-62067-000		 •BEARING 1 -
47 08331-41629-000
SUB: 08331-4162A-000		 •CIRCLIP 1 Rp27.000
48 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 5 Rp25.500
49 09401-10409-000
SUB: 09401B10409N000		 CLIP, HOSE 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
