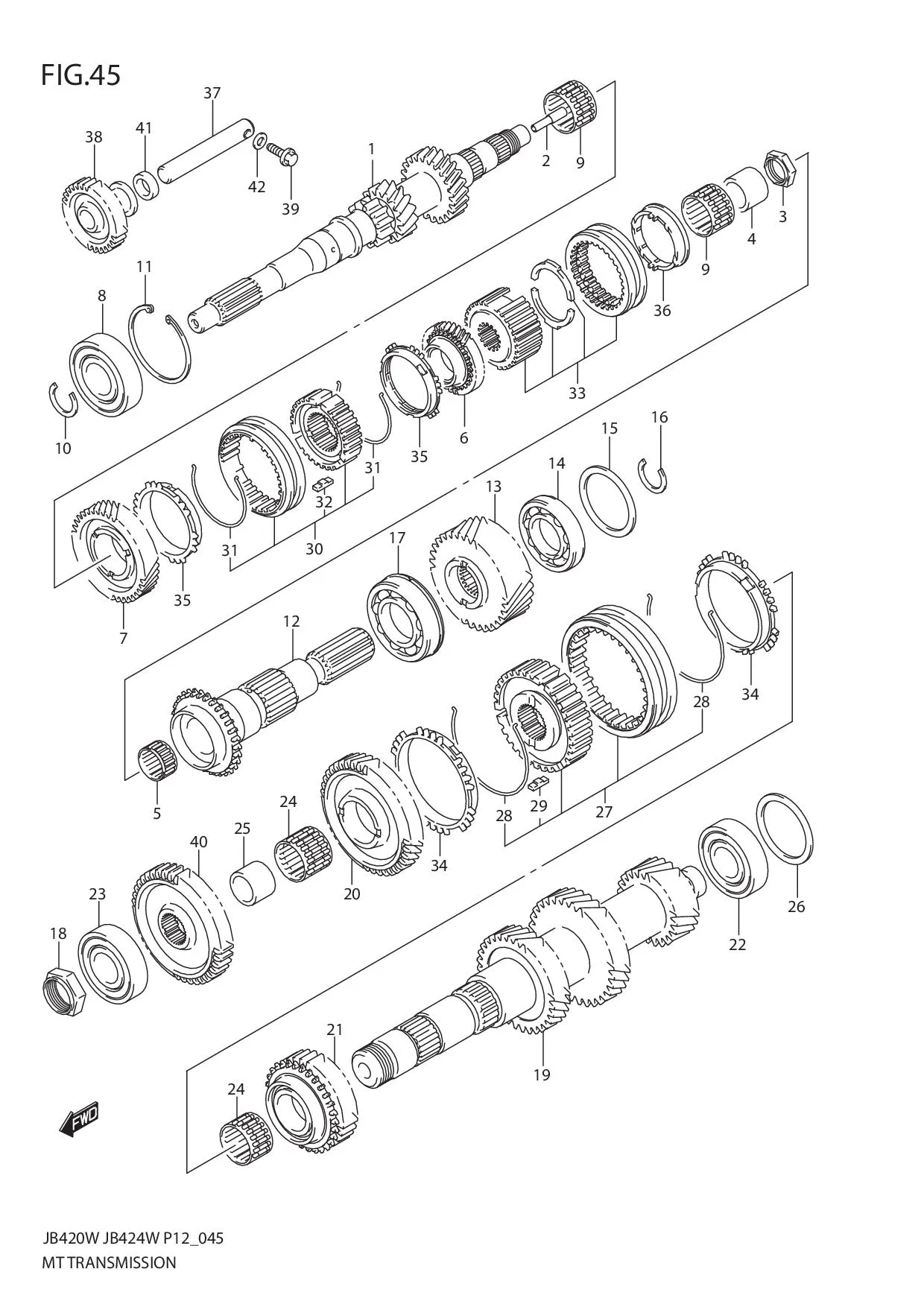

FIG.45 MT TRANSMISSION

FIG.45 MT TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1-2 24111-65J01-000 SHAFT, TRANSMISSION INPUT 1 Rp3.403.500 FROM 2006-11
1-1 24111-65J01-000
SUB: 24111-65J00-000		 SHAFT, TRANSMISSION INPUT 1 Rp3.403.500 ->24111-65J01 USED WITH 24311-64J02 AND 24320-84A02
2 DISCONTINUE
SUB: 24113-84A00-000		 UNION, INPUT SHAFT 1 - TO 2007-7
3 24117-84A00-000 NUT, INPUT SHAFT 5TH HUB 1 Rp85.000
4 24119-84A00-000 BUSH, INPUT SHAFT 3RD NDL 1 Rp147.500
5 24152-85F00-000 BEARING, INPUT SHAFT NDL 1 Rp172.500
6-1 24230-64810-000
SUB: 24230-64J01-000		 GEAR, INPUT SHAFT 3RD 1 Rp3.220.000 ->24230-64810
6-2 24230-64J02-000 GEAR, INPUT SHAFT 3RD 1 Rp1.602.500 FROM 2007-6
7 24241-84A00-000 GEAR, INPUT SHAFT 4TH 1 Rp1.462.500
8 09262-30119-000 BEARING (30X72X19) 1 Rp322.000
9 09263-35015-000 BEARING (35X40X26.8) 2 Rp120.000
10 09380-30007-000 RING, SNAP 1 Rp25.500
11 09381-72001-000 CIRCLIP 1 Rp73.500
12 DISCONTINUE
SUB: 24121-64J00-000		 SHAFT, TRANSMISSION OUTPUT 1 -
13-1 24122-64J00-000 GEAR, T/M OUTPUT SHAFT 1 Rp1.132.500
13-2 24122-78K00-000 GEAR, T/M OUTPUT SHAFT 1 Rp897.000 FROM 2008-6
14 24126-64J01-000 BEARING, T/M OUTPUT SHAFT 1 Rp417.000
15-12 DISCONTINUE
SUB: 09181-62015-000		 SHIM (T:1.2) 0 - TYPE 4
15-2 DISCONTINUE
SUB: 09181-62008-000		 SHIM (T:0.2) 0 - TYPE 3
15-11 DISCONTINUE
SUB: 09181-62014-000		 SHIM (T:1.1) 0 - TYPE 4
15-10 DISCONTINUE
SUB: 09181-62013-000		 SHIM (T:1.0) 0 - TYPE 4
15-9 DISCONTINUE
SUB: 09181-62012-000		 SHIM (T:0.9) 0 - TYPE 4
15-8 DISCONTINUE
SUB: 09181-62011-000		 SHIM (T:0.8) 0 - TYPE 4
15-7 DISCONTINUE
SUB: 09181-62007-000		 SHIM (T:0.7) 0 -
15-6 DISCONTINUE
SUB: 09181-62010-000		 SHIM (T:0.6) 0 -
15-5 DISCONTINUE
SUB: 09181-62005-000		 SHIM (T:0.5) 0 -
15-4 09181-62009-000 SHIM (T:0.4) 0 Rp24.000 TYPE 3
15-3 DISCONTINUE
SUB: 09181-62004-000		 SHIM (T:0.3) 0 - TYPE 3
15-1 09181-62003-000 SHIM (T:0.1) 0 Rp22.000 TYPE 3
16 09380-30007-000 RING, SNAP 1 Rp25.500
17 24125-60K00-000
SUB: 08173-62070-000		 BEARING 1 Rp121.500
18 24117-84A00-000 NUT, COUNTERSHAFT FR BRG 1 Rp85.000
19-1 DISCONTINUE
SUB: 24131-64J00-000		 SHAFT, TRANSMISSION COUNTER 1 -
19-2 DISCONTINUE
SUB: 24131-78K00-000		 SHAFT, TRANSMISSION COUNTER 1 - FROM 2008-6
20-1 DISCONTINUE
SUB: 24311-64J01-000		 GEAR, COUNTER SHAFT 1ST 1 -
20-2 24311-64J02-000 GEAR, COUNTER SHAFT 1ST 1 Rp1.295.000 FROM 2006-11
21-1 DISCONTINUE
SUB: 24320-84A01-000		 GEAR, COUNTER SHAFT 2ND 1 -
21-2 DISCONTINUE
SUB: 24320-84A02-000		 GEAR, COUNTER SHAFT 2ND 1 - FROM 2006-11
22 24136-60K00-000
SUB: 09262-25128-000		 BEARING (25X62X17) 1 Rp158.500
23 24135-60K00-000
SUB: 09262-25125-000		 BEARING (25X62X17) 1 Rp162.000
24 09263-35040-000 BEARING (35X40X31.8) 2 Rp73.000
25 09300-28005-000 BUSH 1 Rp103.000
26-10 09181-50011-000 SHIM (T:1.8) 0 Rp57.500
26-9 09181-50010-000 SHIM (T:1.7) 0 Rp53.000
26-8 09181-50009-000 SHIM (T:1.6) 0 Rp53.000
26-7 09181-50008-000 SHIM (T:1.5) 0 Rp53.500
26-6 09181-50007-000 SHIM (T:1.4) 0 Rp53.500
26-4 09181-50005-000 SHIM (T:1.2) 0 Rp53.500
26-3 09181-50012-000 SHIM (T:1.1) 0 Rp53.000
26-2 09181-50013-000 SHIM (T:1.0) 0 Rp53.000
26-1 09181-50014-000 SHIM (T:0.9) 0 Rp57.500
26-5 09181-50006-000 SHIM (T:1.3) 0 Rp53.500
27 24400-84A00-000 HUB ASSY, LOW SPEED SYNC 1 Rp1.773.500
28 24441-76A00-000 •SPRING, LOW SPEED SYNC KEY 2 Rp40.500
29 24472-60B00-000 •KEY, LOW SPEED SYNC 3 Rp25.000
30 24410-84A01-000 HUB ASSY, HIGH SPEED SYNC 1 Rp1.609.000
31 24442-70C00-000 •SPRING, HIGH SPEED SYNC KEY 2 Rp23.000
32 24472-60B00-000 •KEY, HIGH SPEED SYNC 3 Rp25.000
33 24420-84A01-000 HUB ASSY, 5TH SPEED SYNC 1 Rp1.911.000
34 24431-83001-000 RING, LOW SPEED SYNC 2 Rp632.000
35 24432-60A00-000 RING, HIGH SPEED SYNC 2 Rp562.000
36 24435-84A20-000
SUB: 24435-84A00-000		 RING, 5TH SPEED SYNC 1 Rp280.500
37 24551-84A00-000 SHAFT, TRANSMISSION REV GEAR 1 Rp147.500
38 24560-84A20-000 GEAR, REVERSE IDLER 1 Rp775.000
39 24565-60B00-000 BOLT, REVERSE SHAFT 1 Rp21.500
40 24581-84A00-000 GEAR, COUNTERSHAFT REVERSE 1 Rp985.500
41 09161-18004-000 WASHER (18X27X5.5) 1 Rp34.500
42 09168M08030-000
SUB: 09168-08030-000		 GASKET (8.2X17X1) 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
