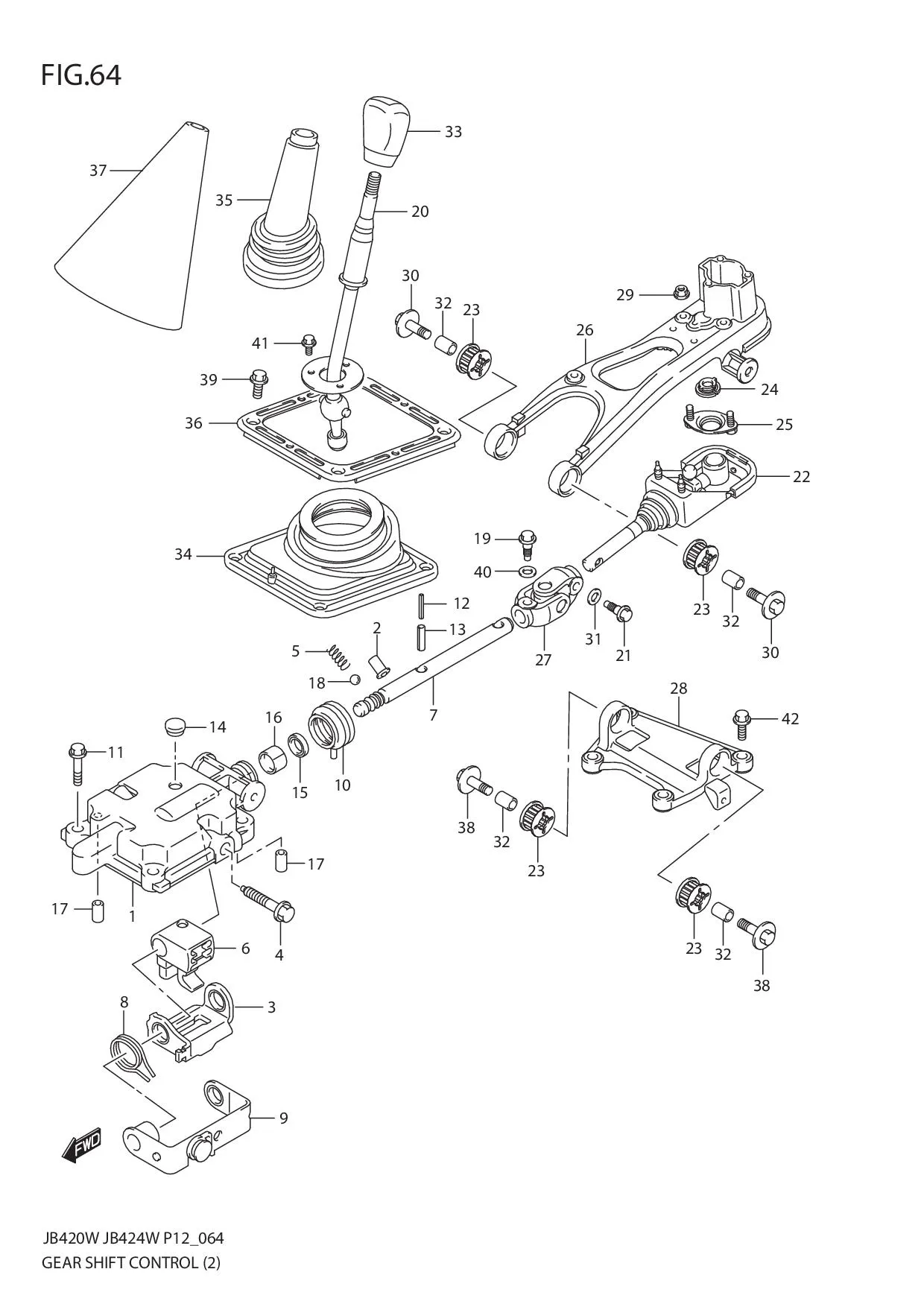

FIG.64 GEAR SHIFT CONTROL (JB424W)

No	No. Part	Description	Qty	Price Per Pcs
1	25121-76J00-000	CASE, GEAR SHIFT LEVER	1	Rp733.500
2	25250-77A00-000	LOCATING, SELECT RETURN	1	Rp74.000
3	DISCONTINUE SUB: 25310-84A20-000	PLATE, GEAR SHIFT INTERLOCK	1	-
4	25321-84A00-000	BOLT, GEAR SHIFT STOP	1	Rp47.000
5	25415-77D00-000	SPRING, GEAR SHIFT LOCATING	1	Rp25.000
6	DISCONTINUE SUB: 25541-84A20-000	ARM, GEAR SHIFT & SELECT	1	-
7	DISCONTINUE SUB: 25571-78K00-000	SHAFT, GEAR SHIFT & SELECT	1	-
8	DISCONTINUE SUB: 25576-84A00-000	SPRING, GEAR SELECT RETURN	1	-
9	DISCONTINUE SUB: 25580-84A00-000	PLATE, REV GEAR SHIFT LIMIT	1	-
10	25651-74B00-000	BOOT, GEAR SHIFT SHAFT	1	Rp50.500
11	09103-08153-000	BOLT (8X30)	4	Rp18.500
12	09205-03037-000	SPRING PIN (3X25)	1	Rp11.500
13	09205M06016-000 SUB: 09205-06007-000	SPRING PIN (6X25)	1	Rp4.500
14	09250-12004-000	CAP (OD:17)	1	Rp17.500
15	09283M14005-000 SUB: 09283-14006-000	SEAL, OIL (14X22X6)	1	Rp9.000
16	09304-14020-000	BUSH	1	Rp27.000
17	DISCONTINUE SUB: 04211-09169-000	PIN	2	-
18	06111-10003-000	BALL	1	Rp10.000
19	25701-60B10-000	BOLT, GEAR SHIFT CONTROL JOINT	1	Rp25.500
20	28101-78K02-000 SUB: 28101-78K00-000	LEVER, GEAR SHIFT CONTROL	1	Rp988.500
21	25701-60B10-000	BOLT, GEAR SHIFT CONTROL JOINT	1	Rp25.500
22	28104-78K04-000 SUB: 28104-78K00-000	SHAFT, GEAR SHIFT REAR	1	Rp1.024.500
23	28119-78K00-000	BUSH, GEAR SHIFT CONTROL	4	Rp51.000
24	28152-84A00-000	BUSH, GEAR SHIFT CONTROL JOINT	1	Rp32.500
25	DISCONTINUE SUB: 28180-84A20-000	PLATE, GEAR SHIFT STOPPER	1	-
26	28241-78K00-000	ARM, GEAR SHIFT CONTROL	1	Rp1.186.500
27	DISCONTINUE SUB: 28250-78K00-000	JOINT, GEAR SHIFT CONTROL	1	-
28	DISCONTINUE SUB: 28261-78K00-000	BRACKET, GEAR SHIFT CONTROL	1	-
29	DISCONTINUE SUB: 57870-03G00-000	NUT, GEAR SHIFT STOPPER PLATE	2	-
30	09118-08130-000	BOLT (8X35)	2	Rp22.000
31	09160-08121-000 SUB: 09160-08120-000	WASHER (8.5X18X2)	1	Rp6.500
32	09180-08193-000	SPACER (8.5X12X17)	4	Rp26.500
33	28113-50J07-BWK SUB: 28113-50J06-BWK	KNOB, CONTROL LEVER (GRAY/BLACK)	1	Rp941.000
34	DISCONTINUE SUB: 28135-78K00-000	BOOT, CONTROL LEVER NO.1	1	-
35	DISCONTINUE SUB: 28136-78K00-000	BOOT, CONTROL LEVER NO.2	1	-
36	DISCONTINUE SUB: 28137-78K00-000	COVER, GEAR SHIFT CONTROL BOOT	1	-
37	DISCONTINUE SUB: 28139-67J00-000	SILENCER, GEAR SHIFT LEVER	1	-
38	09118-08130-000	BOLT (8X35)	2	Rp22.000
39	DISCONTINUE SUB: 09118-08165-000	BOLT (8X25)	4	-
40	09160-08121-000 SUB: 09160-08120-000	WASHER (8.5X18X2)	1	Rp6.500
41	DISCONTINUE SUB: 01550B0612AN000	BOLT	3	-
42	01550-0830A-000 SUB: 01550B0830AN000	BOLT	4	Rp4.000
