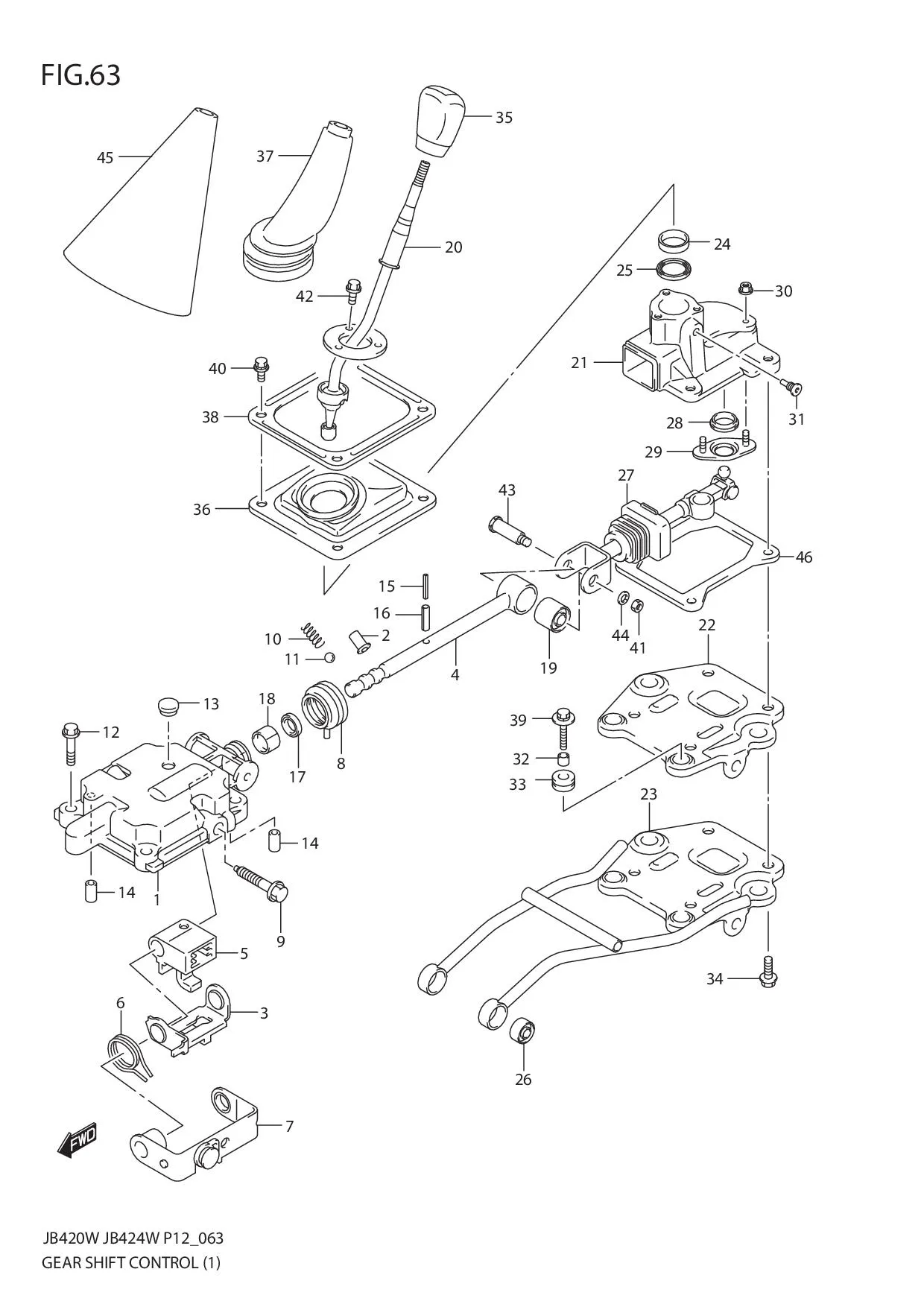

FIG.63 GEAR SHIFT CONTROL (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	25121-76J00-000	CASE, GEAR SHIFT LEVER	1	Rp733.500
2	25250-77A00-000	LOCATING	1	Rp74.000
3	DISCONTINUE SUB: 25310-84A20-000	PLATE, INTERLOCK	1	-
4	25510-64J00-000	SHAFT, GEAR SHIFT	1	Rp386.500
5	DISCONTINUE SUB: 25541-84A02-000	ARM, GEAR SHIFT/SELECT	1	-
6	25576-84A20-000	SPRING, RETURN	1	Rp33.500
7	DISCONTINUE SUB: 25580-84A00-000	PLATE, LIMIT	1	-
8	25651-74B00-000	BOOT, SHAFT OIL	1	Rp50.500
9	25321-84A00-000	BOLT, GEAR SHIFT STOP	1	Rp47.000
10	25415-77D00-000	SPRING, GEAR SHIFT LOCATING	1	Rp25.000
11	06111-10003-000	BALL	1	Rp10.000
12	09103-08153-000	BOLT (8X30)	4	Rp18.500
13	09250-12004-000	CAP (OD:17)	1	Rp17.500
14	DISCONTINUE SUB: 04211-09169-000	PIN	2	-
15	09205-03037-000	SPRING PIN (3X25)	1	Rp11.500
16	09205M06016-000 SUB: 09205-06007-000	SPRING PIN (6X25)	1	Rp4.500
17	09283M14005-000 SUB: 09283-14006-000	SEAL, OIL (14X22X6)	1	Rp9.000
18	09304-14020-000	BUSH	1	Rp27.000
19	28119-64J00-000	BUSH, GEAR SHIFT SHAFT	1	Rp180.000
20	28101-64J01-000	LEVER, GEAR SHIFT CONTROL	1	Rp1.201.000
21	25121-64J00-000	CASE, GEAR SHIFT LEVER	1	Rp1.165.000
22	DISCONTINUE SUB: 25129-64J00-000	PLATE, CASE	1	-	TO 2006-9
23	DISCONTINUE SUB: 25129-64J40-000	PLATE, CASE	1	-	FROM 2006-10
24	28117-82C02-000	SEAT, LOWER	1	Rp81.500
25	28118-64J00-000	RING, CASE	1	Rp21.500
26	DISCONTINUE SUB: 28119-84A00-000	BUSH, SHIFT LEVER	2	-	FROM 2006-10
27	28104-64J02-000 SUB: 28104-64J00-000	SHAFT	1	Rp843.500
28	28152-84A00-000	BUSH, JOINT	1	Rp32.500
29	DISCONTINUE SUB: 28180-64J00-000	PLATE, STOPPER	1	-
30	DISCONTINUE SUB: 57870-03G00-000	NUT, STOPPER PLATE	2	-
31	09103-08384-000 SUB: 28243-64J00-000	BOLT, LOCATING	2	Rp30.500
32	DISCONTINUE SUB: 28367-64J00-000	SPACER, CUSHION	4	-
33-1	DISCONTINUE SUB: 09320-12076-000	CUSHION	4	-
33-2	DISCONTINUE SUB: 28368-64J00-000	CUSHION, GEAR SHIFT CASE	4	-	FROM 2006-10
34	DISCONTINUE SUB: 57895-03G50-000	BOLT	4	-
35-1	28113-50J07-BWK SUB: 28113-50J06-BWK	KNOB (GRAY/BLACK)	1	Rp941.000
35-2	DISCONTINUE SUB: 28113-50J05-KN1	KNOB (WOOD/BLACK)	1	-
36	28135-64810-000	BOOT, LEVER NO.1	1	Rp392.500
37	DISCONTINUE SUB: 28136-64J00-000	BOOT, LEVER NO.2	1	-
38	DISCONTINUE SUB: 28137-64J00-000	COVER, BOOT	1	-
39	DISCONTINUE SUB: 09118-08119-000	BOLT (8X25)	4	-
40	DISCONTINUE SUB: 09118-08165-000	BOLT (8X25)	4	-
41	09140-08021-000	NUT	1	Rp19.500
42	DISCONTINUE SUB: 01550B0612AN000	BOLT	3	-
43-1	DISCONTINUE SUB: 09111-08091-000	BOLT (8X44)	1	-
43-2	DISCONTINUE SUB: 28256-64J00-000	BOLT, SHIFT LEVER NO.1	1	-	FROM 2006-10
44	09162-08008-000	WASHER	1	Rp16.500
45	DISCONTINUE SUB: 28139-67J00-000	SILENCER	1	-
46	DISCONTINUE SUB: 25122-64J00-000	GASKET, GEAR SHIFT LEVER CASE	1	-
