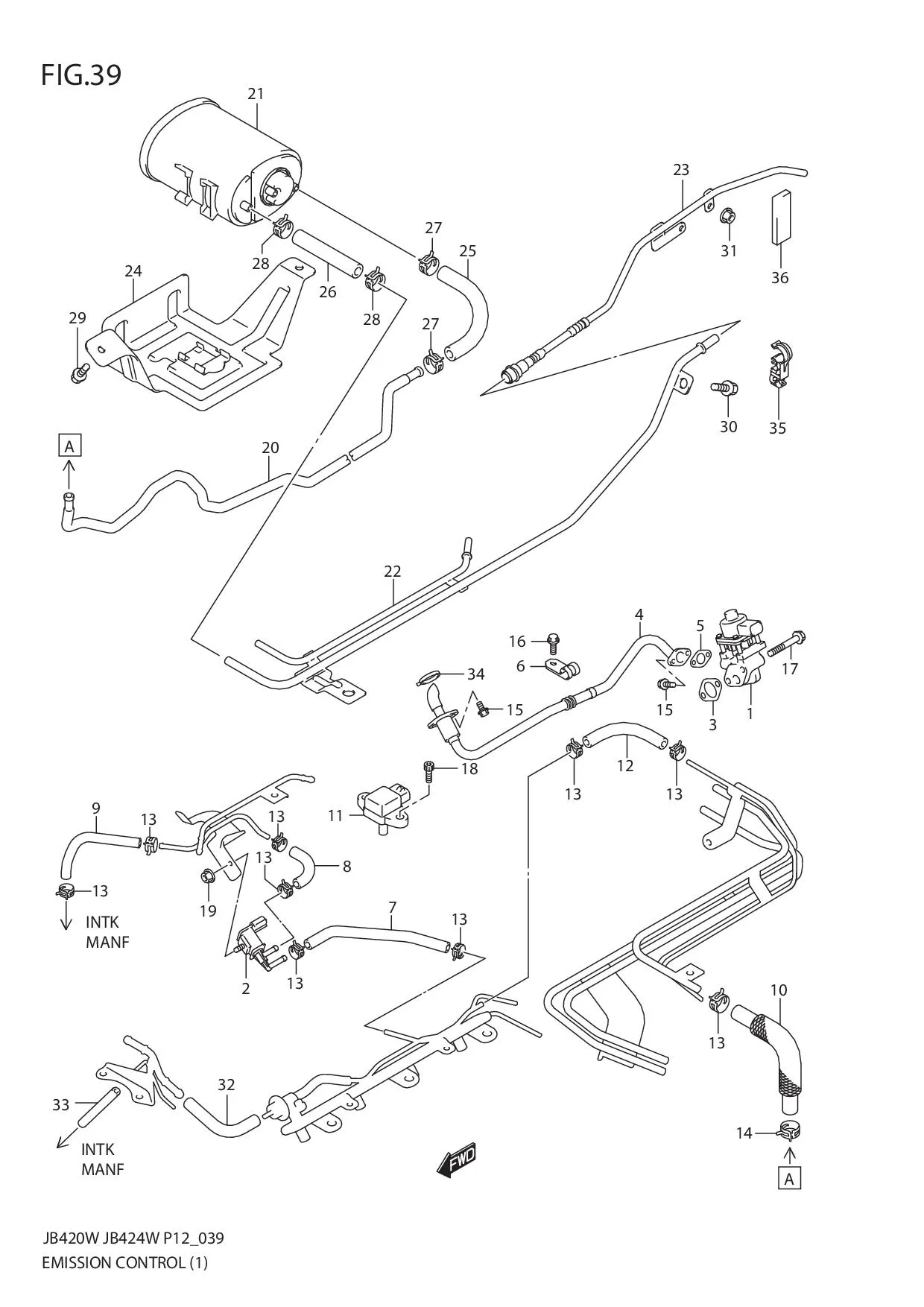

FIG.39 EMISSION CONTROL (JB420W)

FIG.39 EMISSION CONTROL (JB420W)
No No. Part Description Qty Price Per Pcs Remarks
1 18111-69G01-000 VALVE, EGR 1 Rp3.581.000
2 18117M73M00-000
SUB: 18117-52G10-000		 VALVE, SOLENOID 1 Rp486.500
3 18529-69G00-000 GASKET 1 Rp23.500
4 18530-65J00-000 PIPE, EGR 1 Rp1.314.500
5 18533-77E00-000 GASKET 1 Rp29.500
6 DISCONTINUE
SUB: 18536-65J00-000		 CLAMP 1 -
7-1 09355-54115-600 HOSE, PURGE (DLVRY TO PIPE) 1 Rp106.500 L:600->250 ->09355-56128-380(L:380->250) USED WITH 09401-11419(2PCS)
7-2 09355-56128-600
SUB: 09355-56128-380		 HOSE, PURGE (DLVRY TO PIPE) 1 Rp94.000 L:380->250 FROM 2007-2
8-1 18563-65J01-000
SUB: 18563-65J00-000		 HOSE, PURGE (VALVE TO PIPE) 1 Rp70.500 ->18563-65J01 USED WITH 09401-11419(2PCS)
8-2 18563-65J01-000 HOSE, PURGE (VALVE TO PIPE) 1 Rp70.500 FROM 2007-2
9-1 DISCONTINUE
SUB: 18564-65J00-000		 HOSE, PURGE (PIPE TO MANF) 1 - ->18564-65J01 USED WITH 09401-11419(2PCS)
9-2 DISCONTINUE
SUB: 18564-65J01-000		 HOSE, PURGE (PIPE TO MANF) 1 - FROM 2007-2
9-3 09355-56128-600
SUB: 09355-56128-380		 HOSE, PURGE (PIPE TO MANF) 1 Rp94.000 L:380->120 FROM 2007-12
10-1 18567-65J02-000
SUB: 18567-65J01-000		 HOSE, PURGE (BODY TO ENG) 1 Rp130.000 ->18567-65J02 USED WITH 09401-11419 AND 09401-12404
10-2 18567-65J02-000 HOSE, PURGE (BODY TO ENG) 1 Rp130.000 FROM 2007-2
11 18590-68H00-000
SUB: 18590-72F21-000		 SENSOR, PRESSURE 1 Rp1.998.500
12-1 09355-54115-600 HOSE, PURGE (PIPE TO DLVRY) 1 Rp106.500 L:600->180 ->09355-56128-380(L:380->180) USED WITH 09401-11419(2PCS)
12-2 09355-56128-600
SUB: 09355-56128-380		 HOSE, PURGE (PIPE TO DLVRY) 1 Rp94.000 L:380->180 FROM 2007-2
13-1 09401-10409-000
SUB: 09401B10409N000		 CLIP 9 Rp7.500
13-2 09401M11419-000 CLIP 9 Rp6.000 FROM 2007-2
14-1 09401M11419-000 CLIP 1 Rp6.000
14-2 09401-12405-000
SUB: 09401-12404-000		 CLIP 1 Rp16.500 FROM 2007-2
15 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 4 Rp3.500
16 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
17 01550-0850A-000 BOLT 2 Rp3.500
18 DISCONTINUE
SUB: 07130-0516A-000		 BOLT 2 -
19 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
20 DISCONTINUE
SUB: 18351-65J03-000		 PIPE, PURGE 1 -
21 18560-76A31-000 CANISTER 1 Rp1.041.500
22 DISCONTINUE
SUB: 18566-65J01-000		 PIPE, CNSTR SUCTION 1 -
23-1 DISCONTINUE
SUB: 18569-65J00-000		 PIPE, CNSTR SUCTION 1 - ->18569-78K10 USED WITH 18565-65J20(2PCS)
23-2 DISCONTINUE
SUB: 18569-78K10-000		 PIPE, CNSTR SUCTION 1 - FROM 2006-11
24 DISCONTINUE
SUB: 18570-65J00-000		 BRACKET 1 -
25-1 09355-54115-600 HOSE, PURGE (CNSTR TO PIPE) 1 Rp106.500 L:600->170 ->09355-56128-380(L:380->170) USED WITH 09401-11419(2PCS)
25-2 09355-56128-600
SUB: 09355-56128-380		 HOSE, PURGE (CNSTR TO PIPE) 1 Rp94.000 L:380->170 FROM 2007-1
26 09355-70125-600 HOSE, SUCTION (CNSTR TO OUTLET) 1 Rp76.500 L:600->140
27-1 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500
27-2 09401M11419-000 CLIP 2 Rp6.000 FROM 2007-1
28 09401-10409-000
SUB: 09401-11415-000		 CLIP 2 Rp7.500
29 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
30 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
31 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000 TO 2006-10
32 09355-35006-601
SUB: 09355-35754-601		 HOSE, VAC (RLTR TO PIPE) 1 Rp66.000 L:600->80
33 DISCONTINUE
SUB: 18419-65J02-000		 HOSE, VAC (PIPE TO MANF) 1 -
34 18534-86G00-000 GASKET, EGR VALVE 1 Rp56.500
35 DISCONTINUE
SUB: 18565-65J20-000		 CLAMP 2 - FROM 2006-11
36 DISCONTINUE
SUB: 18568-65J20-000		 PACKING, CSTR SUCTION PIPE 1 - FROM 2006-4

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
