GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (JB420W)FIG.2 ENGINE GASKET SET (JB424W)FIG.3 CYLINDER HEAD (JB420W)FIG.4 CYLINDER HEAD (JB424W)FIG.5 CYLINDER (JB420W)FIG.6 CYLINDER (JB424W)FIG.7 OIL PAN (JB420W)FIG.8 OIL PAN (JB424W)FIG.9 ENGINE MOUNTING (JB420W)FIG.10 ENGINE MOUNTING (JB424W)FIG.11 CRANKSHAFT (JB420W)FIG.12 CRANKSHAFT (JB424W)FIG.13 CAM SHAFT (JB420W)FIG.14 CAM SHAFT (JB424W)FIG.15 CAM CHAIN (JB420W)FIG.16 CAM CHAIN (JB424W)FIG.17 INTAKE MANIFOLD (JB420W)FIG.18 INTAKE MANIFOLD (JB424W)FIG.19 THROTTLE BODY (JB420W)FIG.20 THROTTLE BODY (JB424W)FIG.21 AIR CLEANER (JB420W)FIG.22 AIR CLEANER (JB424W)FIG.23 EXHAUST MANIFOLD (JB420W)FIG.24 EXHAUST MANIFOLD (JB424W)FIG.25 MUFFLER (JB420W)FIG.26 MUFFLER (JB424W)FIG.27 FUEL PUMP (JB420W)FIG.28 FUEL PUMP (JB424W)FIG.29 DELIVERY PIPE (JB420W)FIG.30 DELIVERY PIPE (JB424W)FIG.31 OIL PUMP (JB420W)FIG.32 OIL PUMP (JB424W)FIG.33 WATER PUMP (JB420W)FIG.34 WATER PUMP (JB424W)FIG.35 RADIATOR (JB420W)FIG.36 RADIATOR (JB424W)FIG.37 WATER HOSE (JB420W)FIG.38 WATER HOSE (JB424W)FIG.39 EMISSION CONTROL (JB420W)FIG.40 EMISSION CONTROL (JB424W)FIG.41 VACUUM TANK (JB420W)FIG.42 LABEL

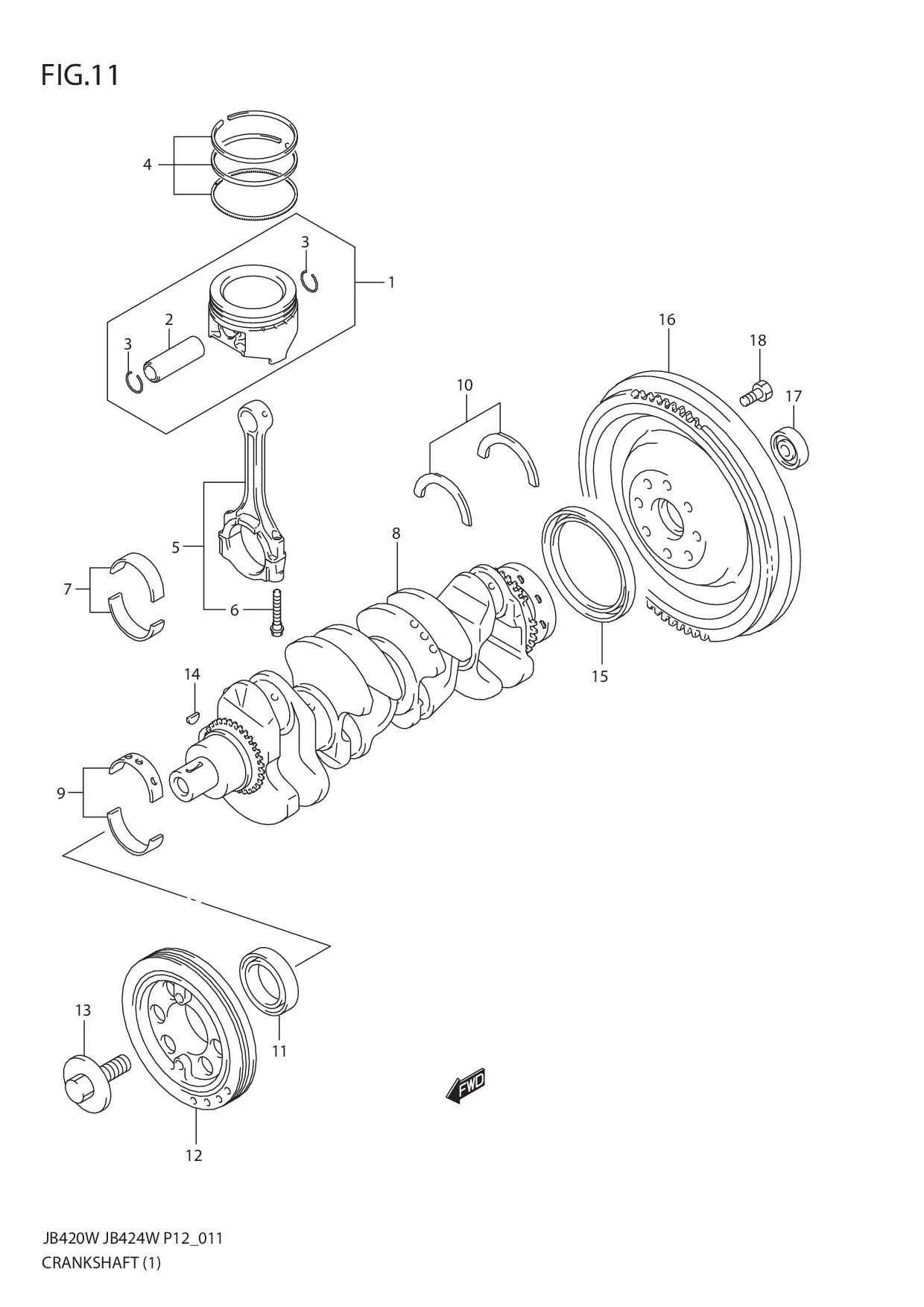

FIG.11 CRANKSHAFT (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	12100-65831-0B0	PISTON SET (STD MARK 2)	4	Rp882.000
1-3	12100-65831-050	PISTON SET (OS:0.50)	4	Rp825.000
1-1	12100-65831-0A0	PISTON SET (STD MARK 1)	4	Rp825.000
2	12151-86FA0-000	•PIN	4	Rp70.500
3	09381-21002-000	•CIRCLIP	8	Rp9.500
4-1	12140-65J50-000	RING SET, PISTON (STD)	4	Rp656.000
4-2	12140-65J50-050	RING SET, PISTON (OS:0.50)	4	Rp655.500
5	12160-59J10-000 SUB: 12160-59J00-000	CON ROD ASSY	4	Rp1.140.500
6	12163-59J00-000	•BOLT	8	Rp27.500
7-3	12100-85824-0C0	BEARING SET (NON)	4	Rp233.000	STD,T:1.5
7-6	12100-85824-025	BEARING SET	4	Rp233.000	US:0.25,T:1.625
7-5	12100-85824-0E0	BEARING SET (BLUE)	4	Rp233.000	STD,T:1.5
7-4	12100-85824-0D0	BEARING SET (YELLOW)	4	Rp233.000	STD,T:1.5
7-2	12100-85824-0B0	BEARING SET (BLACK)	4	Rp233.000	STD,T:1.5
7-1	12100-85824-0A0	BEARING SET (GREEN)	4	Rp222.000	STD,T:1.5
8	12220-65J01-000	CRANKSHAFT	1	Rp10.319.500
9-5	12340-85FC0-0E0	BEARING SET (BLUE)	5	Rp301.500	STD,T:2
9-14	12300-85860-0EA	BEARING SET (RED/BLUE)	5	Rp322.000	US:0.25,T:2.125
9-13	12300-85860-0DA	BEARING SET (RED/YELLOW)	5	Rp322.000	US:0.25,T:2.125
9-12	12300-85860-0CA	BEARING SET (RED)	5	Rp322.000	US:0.25,T:2.125
9-11	12300-85860-0BA	BEARING SET (RED/BLACK)	5	Rp322.000	US:0.25,T:2.125
9-10	12300-85860-0AA	BEARING SET (RED/GREEN)	5	Rp322.000	US:0.25,T:2.125
9-9	12340-85FC0-D0E	BEARING SET (YELLOW/BLUE)	5	Rp322.000	STD,T:2
9-7	12340-85FC0-B0C	BEARING SET (BLACK/NON)	5	Rp322.000	STD,T:2
9-6	DISCONTINUE SUB: 12340-85FC0-A0B	BEARING SET (GREEN/BLACK)	5	-	STD,T:2
9-4	12340-85FC0-0D0	BEARING SET (YELLOW)	5	Rp322.000	STD,T:2
9-3	12340-85FC0-0C0	BEARING SET (NON)	5	Rp322.000	STD:T:2
9-2	12340-85FC0-0B0	BEARING SET (BLACK)	5	Rp322.000	STD,T:2
9-1	12340-85FC0-0A0	BEARING SET (GREEN)	5	Rp322.000	STD,T:2
9-8	12340-85FC0-C0D	BEARING SET (NON/YELLOW)	5	Rp322.000	STD,T:2
10-2	12300-85830-012	BEARING SET, THRUST	1	Rp174.000	OS:0.125,T:2.563
10-1	12300-85830-000	BEARING SET, THRUST	1	Rp158.000	STD,T:2.5
11	09283-45012-000	SEAL, FR OIL (45X63X7.5)	1	Rp173.500
12	12610-62G12-000	PULLEY, CRANKSHAFT	1	Rp2.330.500
13	12615-85FA0-000	BOLT	1	Rp158.500
14	08341M31059-000 SUB: 08341-31059-000	KEY	1	Rp4.500
15	09283-98002-000	SEAL, RR OIL (98X116X10)	1	Rp479.500
16	12620-77EA0-000	FLYWHEEL	1	Rp3.795.000	MT
17	12623-61J00-000 SUB: 12623-71C01-000	BEARING, INPUT	1	Rp39.500	MT
18	09103-10282-000	BOLT (10X18.5)	8	Rp34.500	MT
