GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (JB420W)FIG.2 ENGINE GASKET SET (JB424W)FIG.3 CYLINDER HEAD (JB420W)FIG.4 CYLINDER HEAD (JB424W)FIG.5 CYLINDER (JB420W)FIG.6 CYLINDER (JB424W)FIG.7 OIL PAN (JB420W)FIG.8 OIL PAN (JB424W)FIG.9 ENGINE MOUNTING (JB420W)FIG.10 ENGINE MOUNTING (JB424W)FIG.11 CRANKSHAFT (JB420W)FIG.12 CRANKSHAFT (JB424W)FIG.13 CAM SHAFT (JB420W)FIG.14 CAM SHAFT (JB424W)FIG.15 CAM CHAIN (JB420W)FIG.16 CAM CHAIN (JB424W)FIG.17 INTAKE MANIFOLD (JB420W)FIG.18 INTAKE MANIFOLD (JB424W)FIG.19 THROTTLE BODY (JB420W)FIG.20 THROTTLE BODY (JB424W)FIG.21 AIR CLEANER (JB420W)FIG.22 AIR CLEANER (JB424W)FIG.23 EXHAUST MANIFOLD (JB420W)FIG.24 EXHAUST MANIFOLD (JB424W)FIG.25 MUFFLER (JB420W)FIG.26 MUFFLER (JB424W)FIG.27 FUEL PUMP (JB420W)FIG.28 FUEL PUMP (JB424W)FIG.29 DELIVERY PIPE (JB420W)FIG.30 DELIVERY PIPE (JB424W)FIG.31 OIL PUMP (JB420W)FIG.32 OIL PUMP (JB424W)FIG.33 WATER PUMP (JB420W)FIG.34 WATER PUMP (JB424W)FIG.35 RADIATOR (JB420W)FIG.36 RADIATOR (JB424W)FIG.37 WATER HOSE (JB420W)FIG.38 WATER HOSE (JB424W)FIG.39 EMISSION CONTROL (JB420W)FIG.40 EMISSION CONTROL (JB424W)FIG.41 VACUUM TANK (JB420W)FIG.42 LABEL

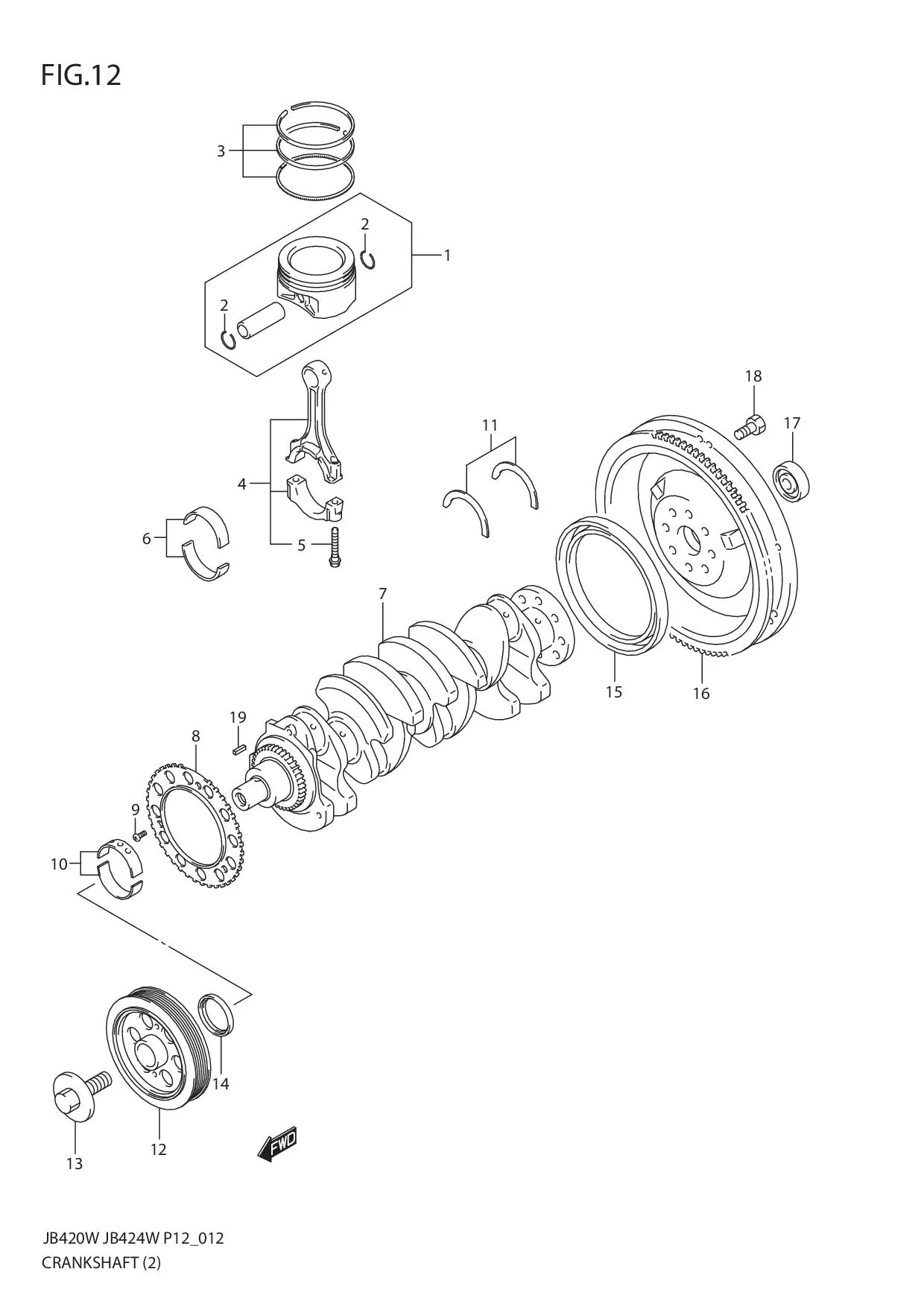

FIG.12 CRANKSHAFT (JB424W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	12100-78831-0B0	PISTON	4	Rp853.000	MARK 2
1-1	12100-78831-0A0	PISTON	4	Rp853.000	MARK 1
2	09381-21002-000	•CIRCLIP	8	Rp9.500
3	12140-78K50-000	RING SET, PISTON	4	Rp702.500
4	12160-78K20-000 SUB: 12160-78K00-000	CONNROD ASSY	4	Rp1.348.500
5	12163-78K00-000	•BOLT, CONNROD	8	Rp26.000
6-5	DISCONTINUE SUB: 12100-78840-0E0	BEARING SET, CONNROD (BLUE)	4	-	STD,T:1.5
6-6	12100-78840-025	BEARING SET, CONNROD US (0.25)	4	Rp229.500	US:0.25,T:1.625
6-4	12100-78840-0D0	BEARING SET, CONNROD (YELLOW)	4	Rp257.500	STD,T:1.5
6-3	12100-78840-0C0	BEARING SET, CONNROD (NON)	4	Rp222.000	STD,T:1.5
6-2	12100-78840-0B0	BEARING SET, CONNROD (BLACK)	4	Rp253.500	STD,T:1.5
6-1	12100-78840-0A0	BEARING SET, CONNROD (GREEN)	4	Rp224.000	STD,T:1.5
7	12220-78K00-000	CRANKSHAFT	1	Rp11.875.000
8	12222-78K00-000	PLATE, SENSOR	1	Rp120.000
9	12223-69G00-000	SCREW, SENSOR PLATE	3	Rp13.500
10-3	12301-78820-0C0 SUB: 12300-78880-0C0	BEARING SET, CRANKSHAFT (NON)	5	Rp314.500	STD,T:2
10-10	12301-78820-0EA SUB: 12300-78880-0EA	BEARING SET, CRANKSHAFT (RED/BLUE)	5	Rp326.000	US:0.25,T:2.125
10-9	12301-78820-0DA SUB: 12300-78880-0DA	BEARING SET, CRANKSHAFT (RED/YELLOW)	5	Rp294.500	US:0.25,T:2.125
10-8	12301-78820-0CA SUB: 12300-78880-0CA	BEARING SET, CRANKSHAFT (RED)	5	Rp356.000	US:0.25,T:2.125
10-7	12301-78820-0BA SUB: 12300-78880-0BA	BEARING SET, CRANKSHAFT (RED/BLACK)	5	Rp312.000	US:0.25,T:2.125
10-6	12301-78820-0AA SUB: 12300-78880-0AA	BEARING SET, CRANKSHAFT (RED/GREEN)	5	Rp356.000	US:0.25,T:2.125
10-5	DISCONTINUE SUB: 12300-78880-0E0	BEARING SET, CRANKSHAFT (BLUE)	5	-	STD,T:2
10-4	12301-78820-0D0 SUB: 12300-78880-0D0	BEARING SET, CRANKSHAFT (YELLOW)	5	Rp326.000	STD,T:2
10-2	12301-78820-0B0 SUB: 12300-78880-0B0	BEARING SET, CRANKSHAFT (BLACK)	5	Rp282.000	STD,T:2
10-1	12301-78820-0A0 SUB: 12300-78880-0A0	BEARING SET, CRANKSHAFT (GREEN)	5	Rp282.000	STD,T:2
11-1	12300-78890-000	BEARING, CRANK THRUST	1	Rp172.500	STD,T:2.5
11-2	12300-78890-012	BEARING, CRANK THRUST OS (0.12)	1	Rp167.500	OS:0.125,T:2.563
12	12610-78K00-000	PULLEY, CRANKSHAFT	1	Rp1.103.000
13	12615-85FA0-000	BOLT, CRANKSHAFT PULLEY	1	Rp158.500
14	09283-41003-000 SUB: 09283-41001-000	SEAL (42X53X6)	1	Rp94.500
15	09283-98003-000	SEAL (98X112X7)	1	Rp244.000
16	12620-78K00-000	FLYWHEEL	1	Rp4.650.000	MT
17	12623-61J00-000 SUB: 12623-71C01-000	BEARING, INPUT SHAFT	1	Rp39.500	MT
18	09103-10282-000	BOLT (10X18.5)	8	Rp34.500	MT
19	09421-05010-000	KEY	1	Rp24.500
