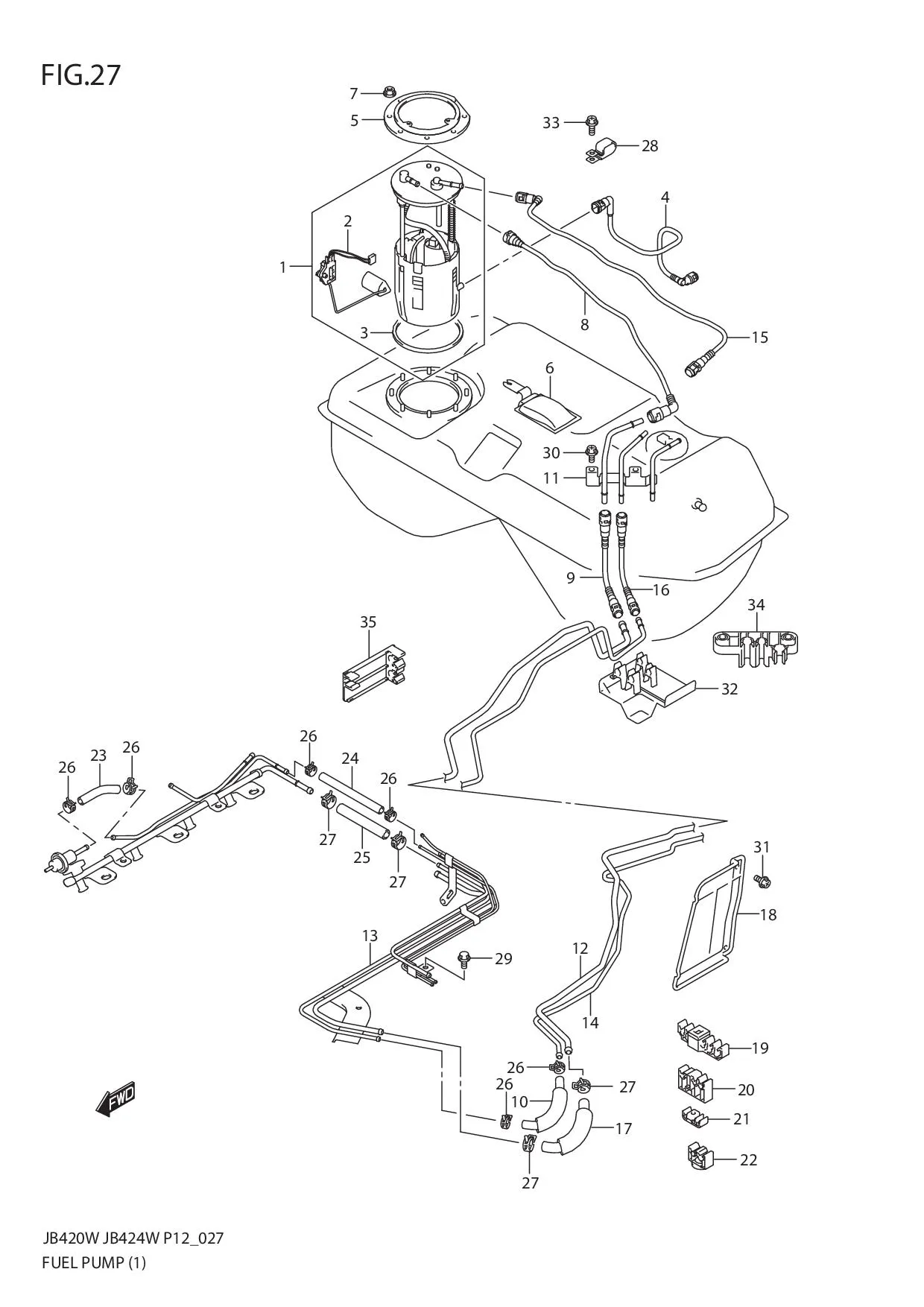

FIG.27 FUEL PUMP (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	15100-65843-000 SUB: 15100-65842-000	PUMP SET, FUEL	1	Rp8.047.000	TYPE 4
1-1	15100-65833-000 SUB: 15100-65832-000	PUMP SET, FUEL	1	Rp8.882.500	TYPE 3
2	34810-65J10-000	•GAUGE ASSY	1	Rp901.500
3	15111-80J00-000	•GASKET	1	Rp96.500
4	15112-65J00-000	PIPE, FUEL SUCTION	1	Rp377.000
5	15121M61J00-000 SUB: 15121-61J00-000	PLATE	1	Rp23.500
6	15195-65J00-000	FILTER, FUEL SUCTION	1	Rp182.500
7	09159-06077-000	NUT	8	Rp17.500
8-1	15814-65J00-000	PIPE, FUEL (PUMP TO PIPE)	1	Rp571.000
8-2	15814-65J01-000	PIPE, FUEL (PUMP TO PIPE)	1	Rp571.500	FROM 2006-7
9	DISCONTINUE SUB: 15815B65J01N000	PIPE, FUEL (FLOOR)	1	-	TO 2006-6
10	15817-65J01-000	HOSE, FUEL (BODY TO ENG)	1	Rp249.500
11	DISCONTINUE SUB: 15820-65J01-000	PIPE ASSY, FUEL (TANK SIDE)	1	-	TO 2006-6
12-1	DISCONTINUE SUB: 15821-65J04-000	PIPE, FUEL FEED	1	-	TYPE 3
12-2	DISCONTINUE SUB: 15821-65J10-000	PIPE, FUEL FEED	1	-	TYPE 4
13	15840-65J01-000	PIPE, FUEL (ENG SIDE)	1	Rp932.500
14-1	DISCONTINUE SUB: 15861-65J04-000	PIPE, FUEL RTN	1	-	TYPE 3
14-2	DISCONTINUE SUB: 15861B65J10N000	PIPE, FUEL RTN	1	-	TYPE 4
15-1	15864-65J00-000	PIPE, FUEL RTN (PIPE TO PUMP)	1	Rp565.500
15-2	15864-65J01-000	PIPE, FUEL RTN (PIPE TO PUMP)	1	Rp566.000	FROM 2006-7
16	15865-65J01-000 SUB: 15865B65J01N000	PIPE, FUEL RTN (FLOOR)	1	Rp179.000	TO 2006-6
17-1	15867-65J02-000	HOSE, FUEL RTN (ENG TO BODY)	1	Rp150.500	TYPE 3
17-2	DISCONTINUE SUB: 15867-65J10-000	HOSE, FUEL RTN (ENG TO BODY)	1	-	TYPE 4
18	DISCONTINUE SUB: 15871-65J00-000	COVER	1	-
19	15892-65J00-000	CLAMP	5	Rp48.500
20	DISCONTINUE SUB: 15893-65J00-000	CLAMP	1	-
21	15894-65J00-000	CLAMP	1	Rp48.500
22	DISCONTINUE SUB: 15895-65J00-000	CLAMP	1	-
23	09356-55117-600	HOSE, FUEL RTN (ENG SIDE)	1	Rp666.000	L:600->100
24	09356-55117-600	HOSE, FUEL RTN (ENG SIDE NO.2)	1	Rp666.000	L:600->140
25	09356-75138-600	HOSE, FUEL (ENG SIDE)	1	Rp315.500	L:600->100
26	09401-10409-000 SUB: 09401B10409N000	CLIP	6	Rp7.500
27	09401-11420-000	CLIP	4	Rp24.500
28-1	DISCONTINUE SUB: 09403-14413-000	CLAMP	1	-
28-2	DISCONTINUE SUB: 09403-13410-000	CLAMP	1	-	FROM 2006-7
29	DISCONTINUE SUB: 01550B0612AN000	BOLT	3	-
30	02162-0610A-000	SCREW	2	Rp5.000
31	02162-0612A-000	SCREW	2	Rp11.000
32	DISCONTINUE SUB: 15872-65J00-000	PROTECTOR	1	-
33	09115-06005-000	BOLT (6X16)	1	Rp14.000
34	DISCONTINUE SUB: 15813-65J00-000	CLAMP, FUEL PIPE	1	-	FROM 2006-7
35	DISCONTINUE SUB: 15875-65J00-000	COVER, PIPE	1	-	FROM 2006-11
