Preview Engine Transmission Electrical Suspension Body

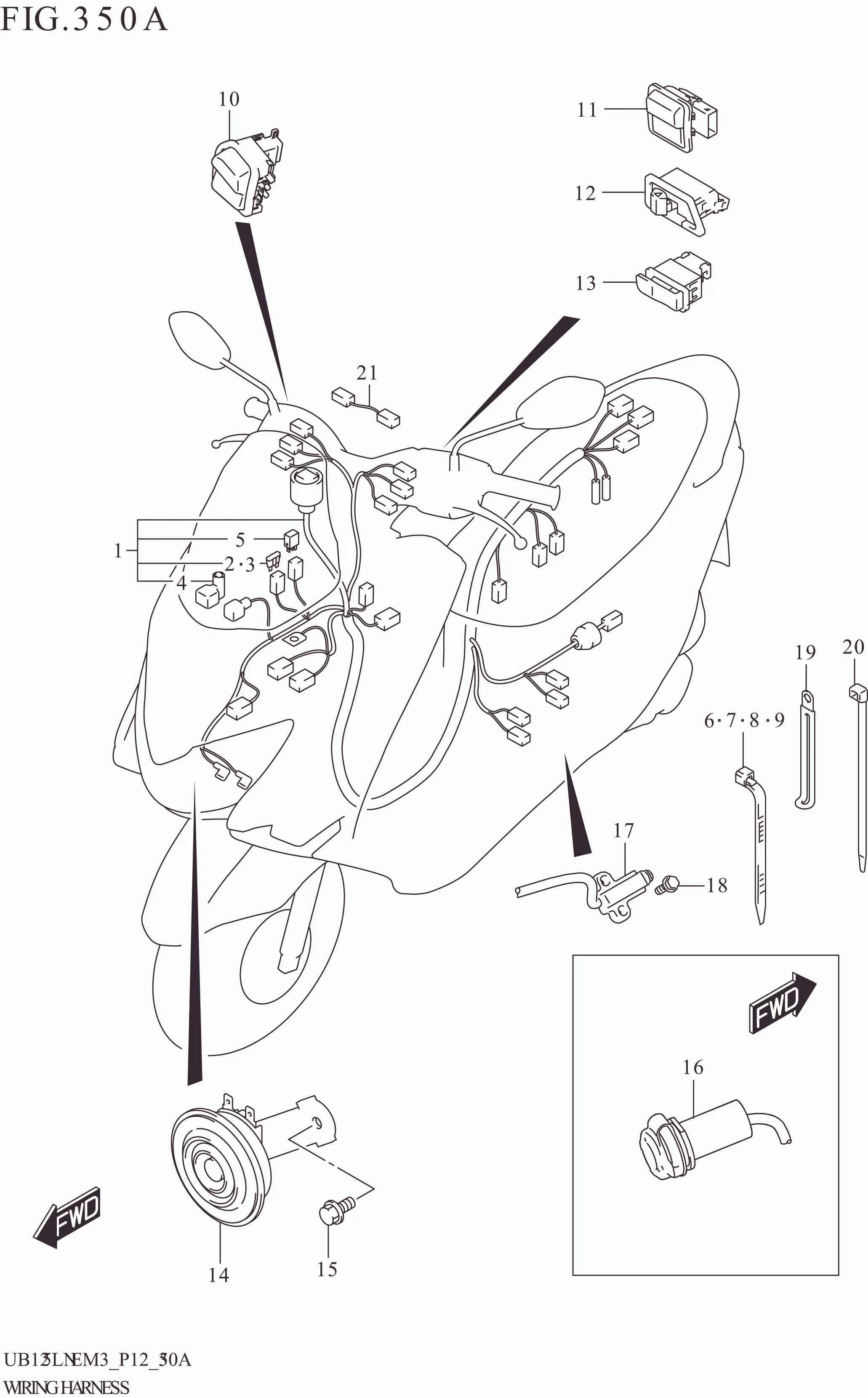

No	No. Part	Description	Qty	Price Per Pcs
1	36610-27L00-000	HARNESS,WIRING	1	Rp2.076.500
2	09481-10501-000	.FUSE (10A)	5	Rp12.000
3	09481-20501-000	.FUSE (20A)	1	Rp14.500
4	33624-23J00-000	.CAP,BATTERY PLUS TERMINAL	1	Rp12.000
5	38860-76F01-000	.RELAY ASSY	1	Rp47.000
6	36990-70F20-000	CLAMP,COMB SW WIRE (L:165)	1	Rp5.500
7	09407-14L01-000	CLAMP (L:125)	3	Rp5.500
8	09407-15L01-000	CLAMP (L:170)	1	Rp14.500
9	09407-29L01-000	CLAMP (L:300)	1	Rp9.500
10	37360-02L10-000	SWITCH ASSY,ST & IDLING STOP	1	Rp168.000
11	37420-02L11-000	SWITCH ASSY,DIMMER	1	Rp21.500
12	37510-33G11-000	SWITCH ASSY,TURNSIGNAL	1	Rp47.000
13	37520-33G11-000	SWITCH ASSY,HORN	1	Rp45.000
14	38500-48G31-000	HORN ASSY	1	Rp113.500
15	01550-0612A-000	BOLT	1	Rp3.500
16	39105-44K22-000 SUB: 39105-44K21-000	SOCKET,USB	1	-
17	37840-02L11-000	SWITCH ASSY,SIDE STAND	1	Rp160.500
18	01550-0620A-000	BOLT (6X20)	2	Rp3.500
19	09404-06429-000	CLAMP (L:45)	1	Rp15.000
20	09407-14407-000	CLAMP (L:145)	1	Rp18.500
21	36852-27L00-000	WIRE,FRONT BRAKE SW LEAD	1	Rp31.500
