Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 304A GENERATORFIG. 310A BATTERYFIG. 312A ELECTRICALFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 335A FRONT TURNSIGNAL LAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRINGHARNESSFIG. 352A LOCK SET

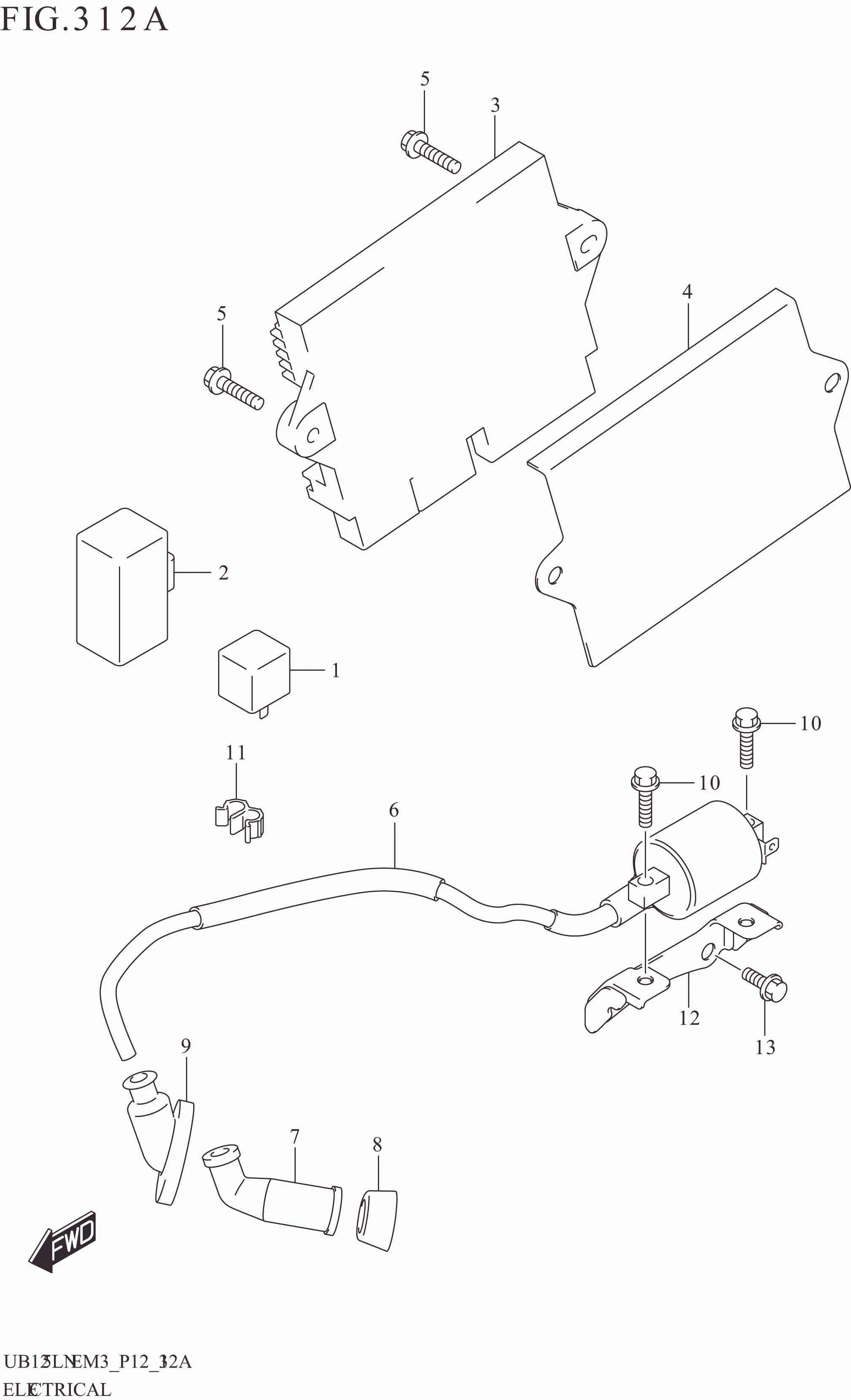

FIG. 312A ELECTRICAL

FIG. 312A ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-27L00-000 RELAY ASSY,STARTING MOTOR 1 Rp91.500
2 31863-27L00-000 HOLDER,RELAY 1 Rp19.000
3 32960-27L01-000
SUB: 32960-27L00-000		 CONTROL UNIT,FI WITH SG 1 Rp4.949.000
4 32832-27L00-000 PLATE,ECM 1 Rp86.500
5 01547-0625A-000 BOLT 2 Rp6.500
6 33410-27L01-000 COIL ASSY,IGNITION 1 Rp131.500
7 33510-08K00-000 CAP,SPARK PLUG 1 Rp46.500
8 33541-08K00-000 SEAL,SPARK PLUG 1 Rp15.500
9 33542-08K01-000 SEAL,HIGH TENSION CORD 1 Rp16.500
10 01547-0620B-000 BOLT 2 Rp6.500
11 09408-00349-000 CLAMP 1 Rp4.000
12 41890-27L00-000 BRACKET,IGNITION COIL 1 Rp13.500
13 01547-0610A-000 BOLT 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
