Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 304A GENERATORFIG. 310A BATTERYFIG. 312A ELECTRICALFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 335A FRONT TURNSIGNAL LAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRINGHARNESSFIG. 352A LOCK SET

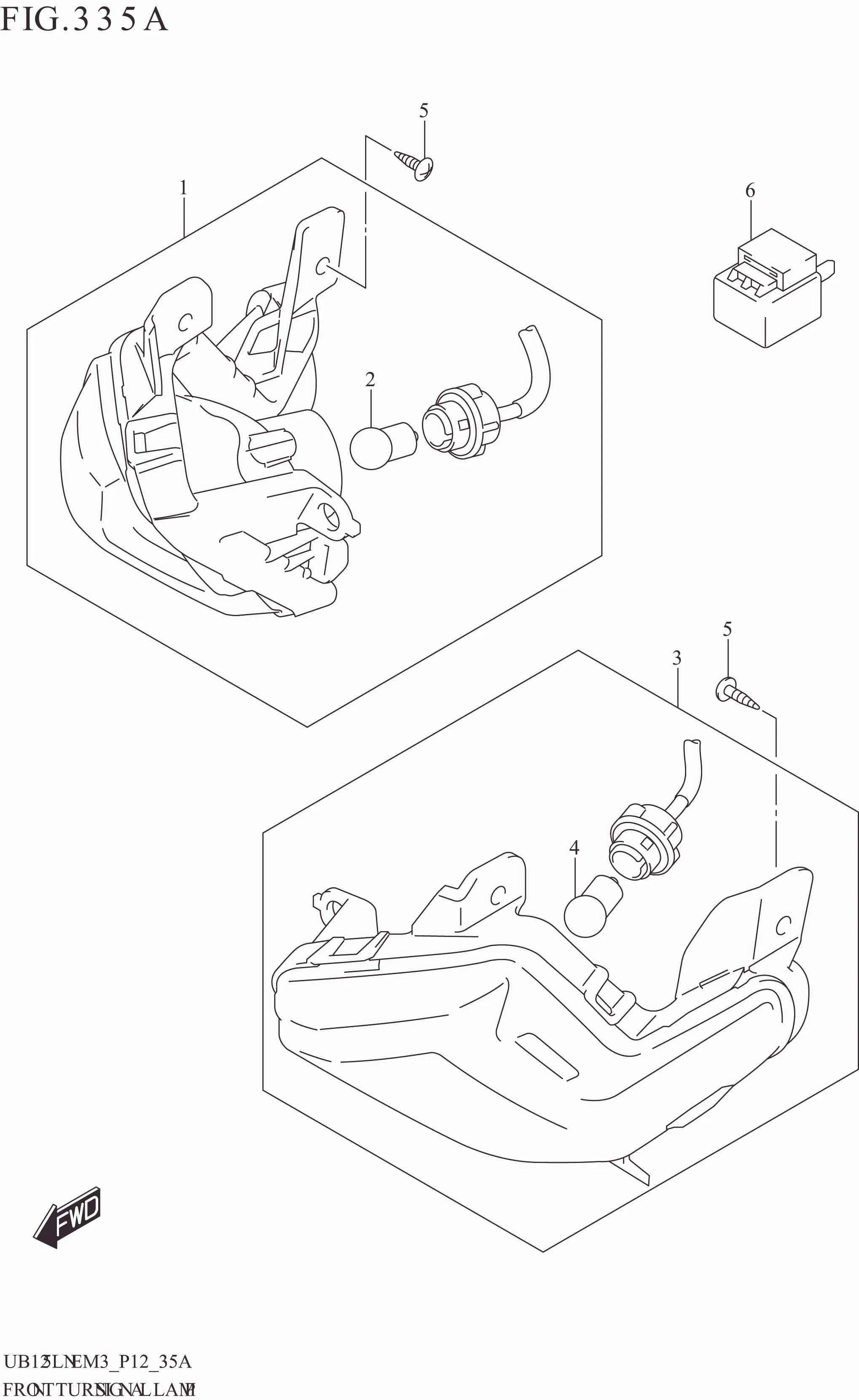

FIG. 335A FRONT TURNSIGNAL LAMP

FIG. 335A FRONT TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-44KA0-000 LAMP ASSY,FRONT TURNSIGNAL,R 1 Rp132.000
2 09471-12226-000 .BULB (12V10W,AMBER) 1 Rp47.000
3 35602-44KA0-000 LAMP ASSY,FRONT TURNSIGNAL,L 1 Rp132.000
4 09471-12226-000 .BULB (12V10W,AMBER) 1 Rp47.000
5 03541-0516A-000 SCREW 4 Rp3.500
6-1 38610-23J40-000
SUB: 38610-23J10-000		 RELAY ASSY,TURNSIGNAL 1 Rp48.000
6-2 38610-27K00-000 RELAY ASSY,TURNSIGNAL 1 Rp75.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
