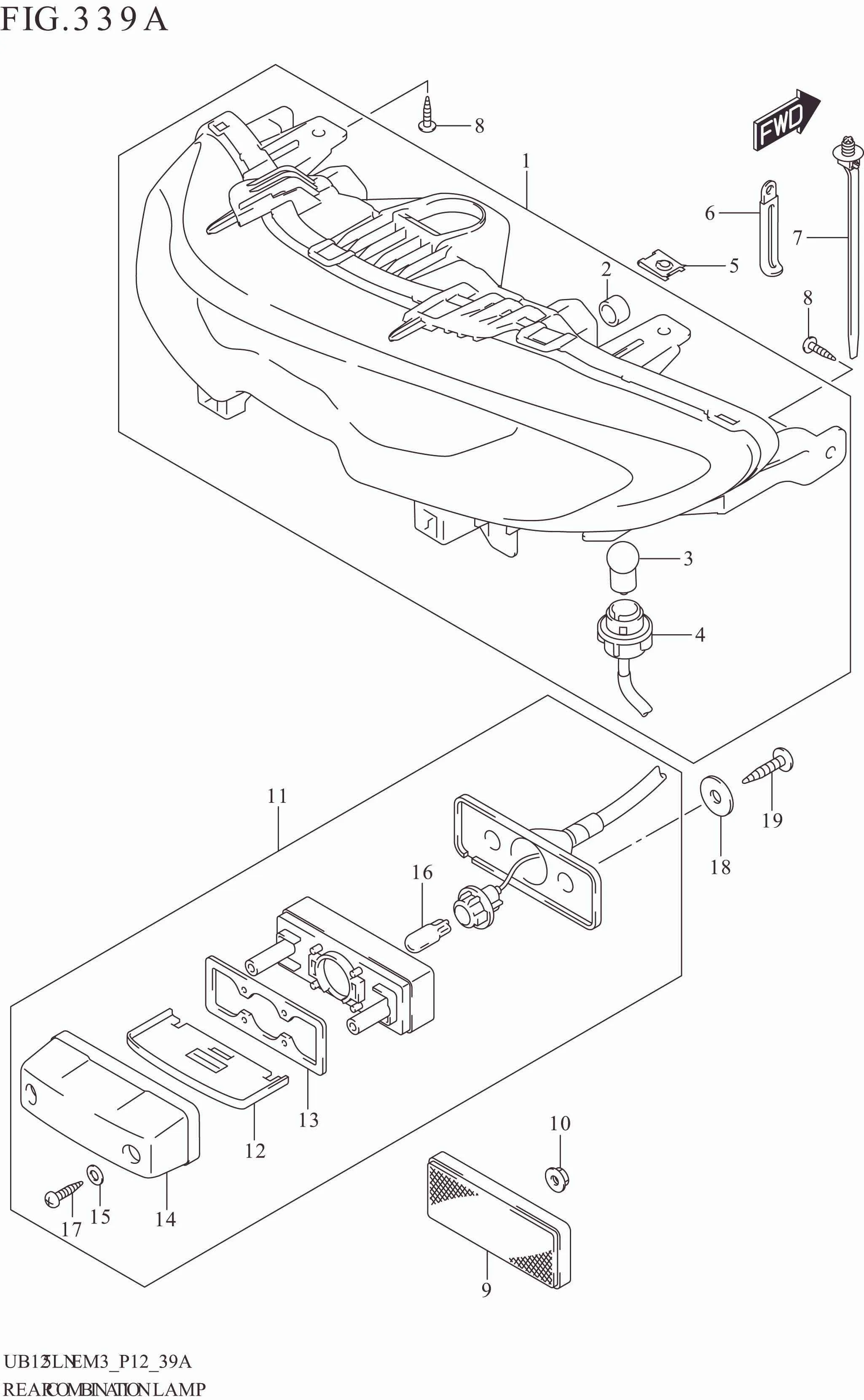

FIG. 339A REAR COMBINATION LAMP

FIG. 339A REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-44KA0-000 LAMP ASSY,REAR COMB 1 Rp988.000
2 35650-44K00-000 .CAP 2 Rp3.500
3 35718-44K00-000 .SOCKET & CORD 1 Rp28.500
4 09471-12226-000 .BULB (12V10W,AMBER) 2 Rp47.000
5 09148-05060-000 NUT (M5) 2 Rp29.500
6 09404-06429-000 CLAMP (L:45) 3 Rp15.000
7 09407-15L01-000 CLAMP (L:170) 1 Rp14.500
8 03541-0516A-000 SCREW 4 Rp3.500
9 35970-28G00-000 REFLECTOR ASSY,RR 1 Rp14.500
10 08316-1005A-000 NUT 1 Rp2.500
11 35910-16GU1-000 LAMP ASSY,LICENSE 1 Rp49.000
12 35912-30H01-000 .LENS 1 Rp18.000
13 35913-30H00-000 .GASKET 1 Rp9.500
14 35917-30H00-000 .COVER 1 Rp10.000
15 35926-30H00-000 .WASHER 2 Rp5.500
16 09471-12216-000 .BULB (12V5W) 1 Rp15.000
17 03211-04207-000 .SCREW 2 Rp8.500
18 09160-05501-000 WASHER (5.5X20X1.2) 2 Rp12.000
19 03541-0520A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
