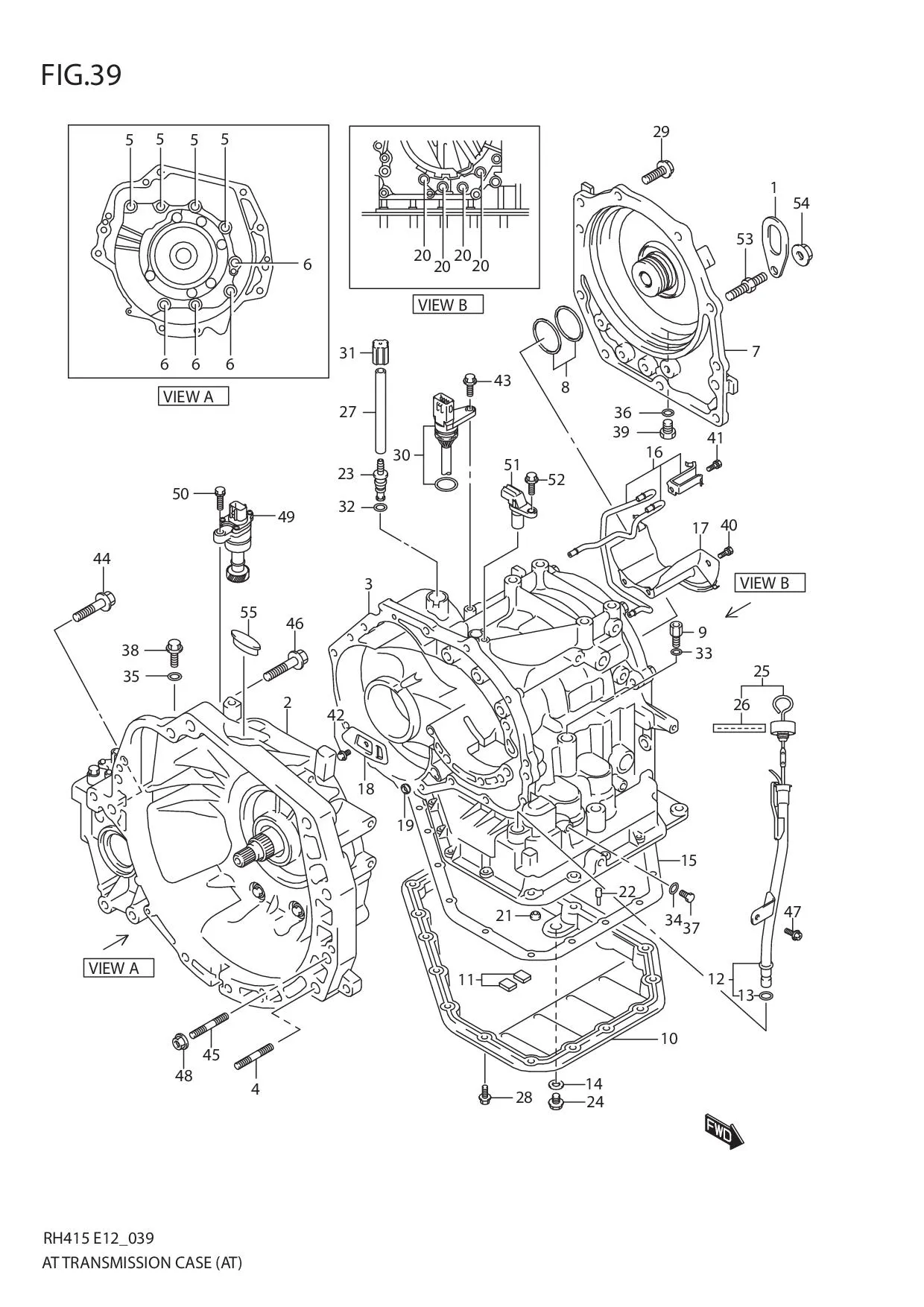

FIG.39 AT TRANSMISSION CASE (AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 11851-62B00-000	HOOK, ENGINE	1	-
2	DISCONTINUE SUB: 24710-55G10-000	HOUSING, TORQUE CONVERTOR	1	-
3	24720-55G10-000	CASE, TRANSMISSION	1	Rp17.608.500
4	DISCONTINUE SUB: 24725-54G10-000	BOLT, HOUSING STUD	1	-
5	DISCONTINUE SUB: 24725-60G10-000	BOLT, HOUSING NO.1	11	-
6	24729-79C10-000	BOLT, HOUSING NO.2	4	Rp32.000
7	24730-55G31-000 SUB: 24730-55G30-000	COVER, REAR	1	Rp3.528.000
8	24732-70H10-000	•RING, REAR COVER SEAL	2	Rp69.500
9	DISCONTINUE SUB: 24743-55G10-000	UNION, OIL OUTLET	2	-
10	24761-55GT0-000	PAN, OIL	1	Rp976.500
11	24745-57B00-000	•MAGNET, OIL PAN	2	Rp69.000
12	DISCONTINUE SUB: 24770-55G10-000	TUBE ASSY, OIL FILLER	1	-
13	09280-09008-000	•O RING	1	Rp20.000
14	24781-57B00-000	GASKET, DRAIN PLUG	2	Rp33.500
15-2	24784-79C10-000 SUB: 24784-68J10-000	GASKET, OIL PAN	1	Rp130.000	TYPE 2
15-1	24784-79C10-000	GASKET, OIL PAN	1	Rp130.000	TYPE 1
16	24811-79JT0-000 SUB: 24811-79CT0-000	TUBE SET, DIFF SIDE BEARING	1	Rp257.000
17	DISCONTINUE SUB: 24813-55G10-000	PLATE, OIL RESERVOIR RH	1	-
18	DISCONTINUE SUB: 24814-79C10-000	PLATE, OIL RESERVOIR LH	1	-
19	24815-60G10-000	GASKET, CASE OIL LINE NO.1	1	Rp74.000
20	24816-60G10-000	GASKET, CASE OIL LINE NO.2	4	Rp72.000
21	24818-68J10-000	GASKET, CASE OIL LINE NO.4	1	Rp71.500
22	24819-79C10-000	GASKET, BRAKE DRUM	1	Rp95.000
23	24821-79C10-000	UNION, BREATHER	1	Rp45.000
24	24823-79C10-000	PLUG, DRAIN	1	Rp31.000
25	DISCONTINUE SUB: 24830-55G30-000	GAUGE, OIL LEVEL	1	-
26	DISCONTINUE SUB: 24839-61A31-000	•EMBLEM, ATF	1	-
27	24856-79C10-000	HOSE, BREATHER	1	Rp77.000
28	24882-79C10-000	BOLT, OIL PAN	18	Rp22.000
29	DISCONTINUE SUB: 24734-60G10-000	BOLT, REAR COVER	8	-
30	DISCONTINUE SUB: 24892-55G30-000	HARNESS, SOLENOID WIRE	1	-
31	27991-65D01-000	PLUG, BREATHER	1	Rp22.500
32	27992-79C10-000	O RING, BREATHER	1	Rp24.000
33	29737-57B00-000	O RING, OIL PIPE	2	Rp71.000
34	29738-57B00-000	O RING, CASE PLUG	1	Rp47.500
35	29738-57B00-000	O RING, CASE PLUG	2	Rp47.500
36	29738-57B00-000	O RING, CASE PLUG	4	Rp47.500
37	DISCONTINUE SUB: 29849-57B00-000	PLUG, CASE	1	-
38	DISCONTINUE SUB: 29849-57B00-000	PLUG, CASE	2	-
39	DISCONTINUE SUB: 29849-57B00-000	PLUG, CASE	4	-
40	29970-57B00-000	BOLT	3	Rp83.000
41	29970-57B00-000	BOLT	1	Rp83.000
42	26449-65G10-000	BOLT	1	Rp27.500
43	29989-57B00-000	BOLT, SPEED SENSOR	1	Rp69.500
44	09103-12060-000	BOLT (12X50)	2	Rp35.500
45	09108-12012-000	STUD BOLT	1	Rp35.000
46	01550-1255A-000	BOLT	4	Rp31.000
47	02162-0612B-000 SUB: 02162-06123-000	SCREW	1	Rp16.000
48	08316-1012A-000 SUB: 08316-10123-000	NUT	1	Rp6.500
49	26130-70H11-000 SUB: 26130-70H10-000	GEAR, SPEEDOMETER	1	Rp1.145.000
50	DISCONTINUE SUB: 26135-79C10-000	BOLT, SPEED SENSOR	1	-
51	26143-79C10-000	SENSOR, SPEED INPUT	1	Rp1.456.000
52	29989-57B00-000	BOLT, SPEED SENSOR	1	Rp69.500
53	DISCONTINUE SUB: 24883-79C10-000	BOLT, REAR COVER STUD	1	-
54	08316-1008A-000 SUB: 08316B10083N000	NUT	1	Rp3.500
55	09250-26005-000	PLUG	1	Rp26.500
