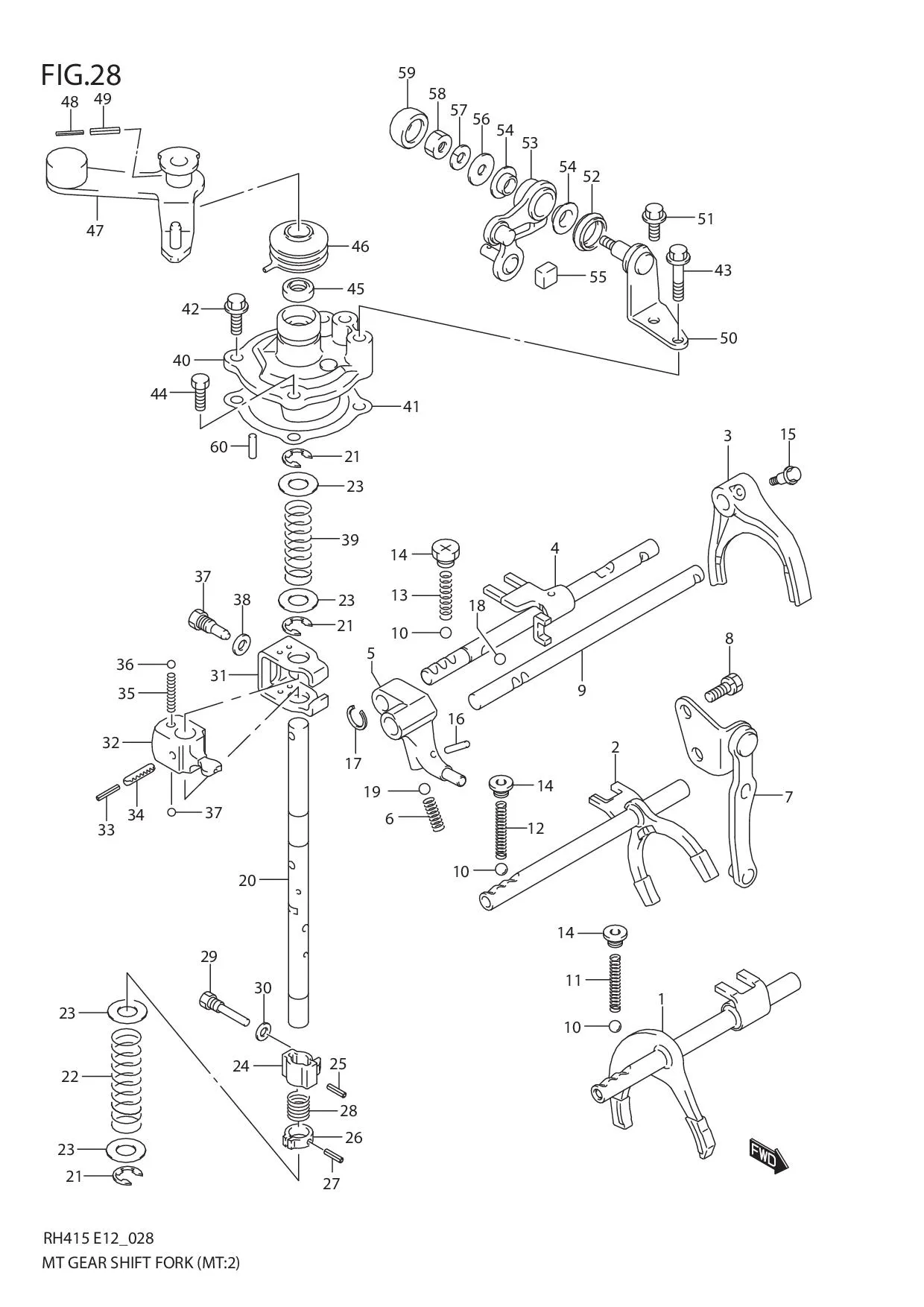

FIG.28 MT GEAR SHIFT FORK (MT:TYPE 2)

FIG.28 MT GEAR SHIFT FORK (MT:TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 25401-55G00-000		 SHAFT, LOW SPEED GEAR SHF 1 -
2 DISCONTINUE
SUB: 25402-55G00-000		 SHAFT, HIGH SPEED GEAR SHF 1 -
3 25231-54G01-000
SUB: 25231-54G00-000		 FORK, 5TH GEAR SHIFT 1 Rp647.500
4 DISCONTINUE
SUB: 25260-55G00-000		 YOKE, 5TH/REVERSE GEAR SHIFT 1 -
5 DISCONTINUE
SUB: 25251-70C01-000		 ARM, REVERSE GEAR SHIFT 1 -
6 DISCONTINUE
SUB: 25255-70C01-000		 SPRING 1 -
7 25460-70C00-000 LEVER, REVERSE GEAR SHIFT 1 Rp200.000
8 01570-0820B-000
SUB: 01570-08203-000		 BOLT 2 Rp31.000
9 DISCONTINUE
SUB: 25431-54G00-000		 SHAFT, 5TH/REVERSE GEAR SHIFT GUIDE 1 -
10 06111-12004-000 BALL 3 Rp14.000
11 25415-70C01-000 SPRING, LOW SPEED 1 Rp39.000
12 25425-70C02-000 SPRING, HIGH SPEED 1 Rp37.000
13 25435-70C02-000 SPRING, GEAR SHIFT 1 Rp39.000
14 09248-12005-000 PLUG 3 Rp34.000
15 25291-70C00-000 BOLT 1 Rp19.500
16 DISCONTINUE
SUB: 09205-04015-000		 SPRING PIN (L:20) 1 -
17 DISCONTINUE
SUB: 09380-13002-000		 RING, SNAP 1 -
18 06111-10003-000 BALL 1 Rp10.000
19 06111-12004-000 BALL 1 Rp14.000
20 DISCONTINUE
SUB: 25571-55G00-000		 SHAFT, GEAR SHIFT/SELECT 1 -
21 08332-1110A-000
SUB: 08332-11126-000		 E RING 3 Rp12.500
22 DISCONTINUE
SUB: 25576-59J00-000		 SPRING, LOW SELECT 1 -
23 08212M14301-000 THRUST WASHER 4 Rp4.500
24 25581-51K01-000
SUB: 25581M50F00-000		 CAM, 5TH/REVERSE GEAR SHIFT 1 Rp199.500
25 DISCONTINUE
SUB: 09205-04015-000		 SPRING PIN (L:20) 1 -
26 DISCONTINUE
SUB: 25582-60B51-000		 GUIDE, 5TH & REVERSE GEAR 1 -
27 DISCONTINUE
SUB: 09205-03020-000		 SPRING PIN (L:22) 1 -
28 25583M60B50-000 SPRING, RETURN 1 Rp6.500
29 DISCONTINUE
SUB: 25584-70C00-000		 BOLT 1 -
30 08322M0108A-000
SUB: 08322M01083-000		 WASHER 1 Rp5.500
31 DISCONTINUE
SUB: 25311-59J00-000		 PLATE, GEAR SHIFT INTER LOCK 1 -
32 DISCONTINUE
SUB: 25541-86G40-000		 LEVER, GEAR SHIFT/SELECT 1 -
33 09205M03016-000 SPRING PIN (L:28) 1 Rp4.500
34 09205M06022-000
SUB: 09205M06004-000		 SPRING PIN (L:28) 1 Rp6.500
35 DISCONTINUE
SUB: 25312-74B00-000		 SPRING, INTER LOCK 1 -
36 06111M07004-000 BALL 2 Rp3.000
37 DISCONTINUE
SUB: 25321-86G00-000		 BOLT 1 -
38 08322-0110B-000
SUB: 08322B01103N000		 WASHER 1 Rp4.500
39 DISCONTINUE
SUB: 25576-83E00-000		 SPRING, REVERSE SELECT 1 -
40 DISCONTINUE
SUB: 25573-86G41-000		 CASE, GEAR SHIFT GUIDE 1 -
41 25574-74B00-000 GASKET, CASE 1 Rp42.500
42 09103-08366-000 BOLT, GUIDE CASE 1 Rp25.500
43 01550-0825A-000
SUB: 01550-08253-000		 BOLT 2 Rp3.500
44 09103-08419-000
SUB: 09103-08152-000		 BOLT (8X45) 1 Rp14.000
45 09283M14005-000
SUB: 09283-14006-000		 SEAL, OIL (14X22X6) 1 Rp9.000
46 25651M68K00-000
SUB: 25651M74B00-000		 BOOT 1 Rp10.500
47 DISCONTINUE
SUB: 25610-60J00-000		 LEVER, SHIFT CABLE 1 -
48 09205M03049-000
SUB: 09205M03037-000		 SPRING PIN 1 Rp6.500
49 09205M06016-000
SUB: 09205-06007-000		 SPRING PIN 1 Rp4.500
50 DISCONTINUE
SUB: 25630-70C01-000		 BRACKET, SELECT LEVER 1 -
51 01550-0820A-000
SUB: 01550-08203-000		 BOLT 1 Rp5.500
52 25624M74B00-000 BOOT 1 Rp6.500
53 DISCONTINUE
SUB: 25620-70C00-000		 LEVER, SELECT CABLE 1 -
54 25558-74B01-000 BUSH, BOSS 2 Rp35.000
55 25559-50F00-000 BUSH, SHAFT 1 Rp53.500
56 09160-08151-000
SUB: 09160-08133-000		 WASHER (8.2X26X1.6) 1 Rp16.500
57 08321M01083-000 LOCK WASHER 1 Rp11.000
58 DISCONTINUE
SUB: 08310B00083N000		 NUT 1 -
59 25625M68K00-000
SUB: 25625M74B00-000		 BOOT 1 Rp6.000
60 09206-06005-000
SUB: 09206B06005N000		 PIN 1 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
