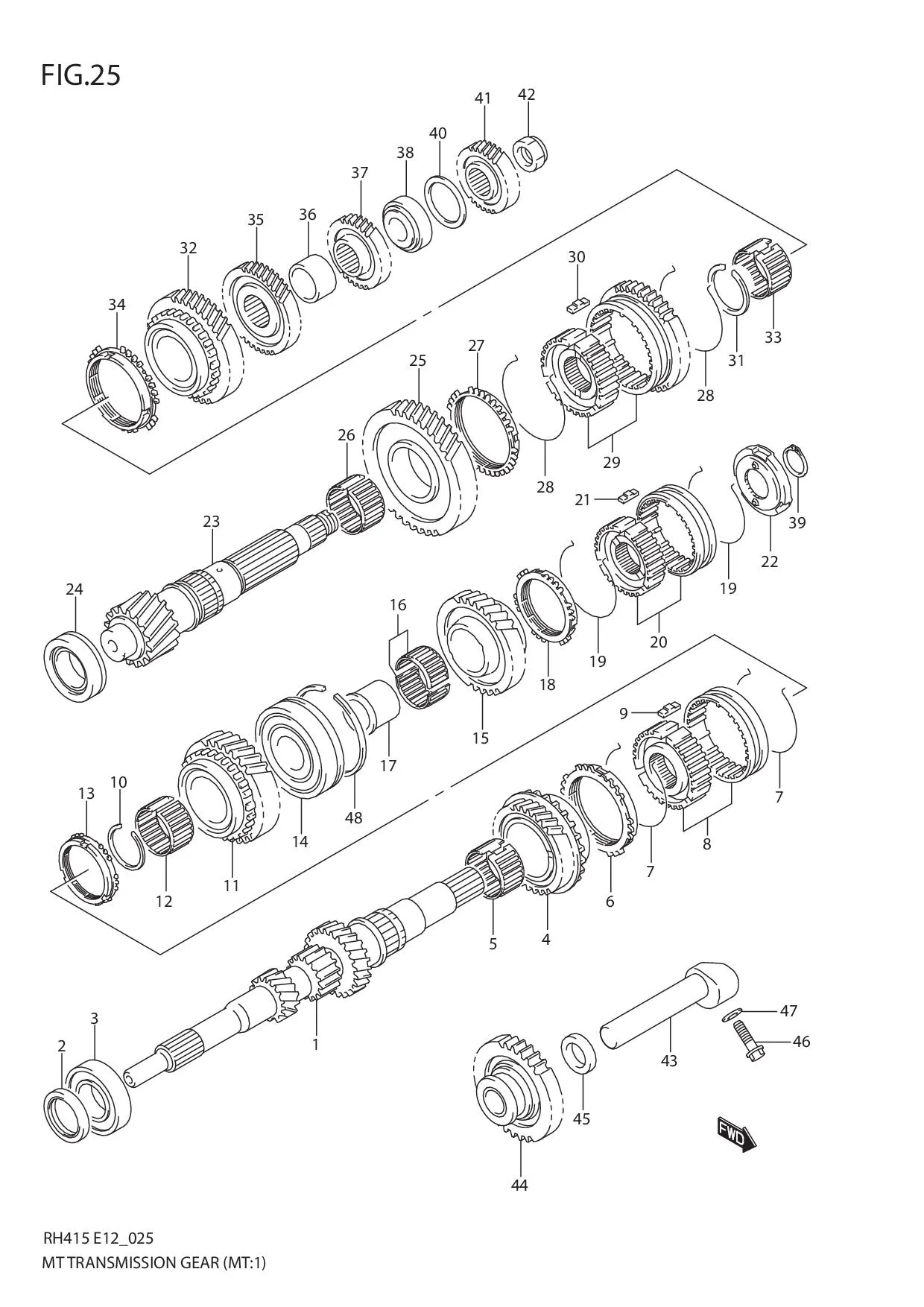

FIG.25 MT TRANSMISSION GEAR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 24111-54G01-000	SHAFT, TRANSAXLE INPUT	1	-
2	09283-25088-000	SEAL, OIL (25X38X6)	1	Rp60.000
3	24117-54G00-000 SUB: 24117B54G00N000	BEARING, INPUT SHAFT RIGHT	1	Rp216.500
4	24230-71C00-000	GEAR, INPUT SHAFT 3RD	1	Rp1.467.000
5	09263-35027-000	BEARING (35X40X22.8)	1	Rp146.000
6	24432-60A00-000	RING, SYNC HIGH SPEED	1	Rp562.000
7	24442-70C00-000	SPRING, HIGH SPEED SYNC	2	Rp23.000
8	24410-70C00-000	HUB ASSY, HIGH SPEED SYNC	1	Rp1.674.000
9-1	24472-60B00-000 SUB: 24472-60B20-000	KEY, SYNCHRONIZER	3	Rp25.000
9-2	24472-60B00-000	KEY, SYNCHRONIZER	3	Rp25.000	2003-9%
10	24451-60B00-000	CIRCLIP	1	Rp30.500
11	24240-71C00-000	GEAR, INPUT SHAFT 4TH	1	Rp1.370.500
12	09263-30030-000	BEARING (30X35X24.8)	1	Rp135.500
13	24432-60A00-000	RING, SYNC HIGH SPEED	1	Rp562.000
14	24165-77M00-000 SUB: 09262B25106N000	BEARING (25X72X19)	1	Rp220.000
15	24114-71C01-000	GEAR, INPUT SHAFT 5TH	1	Rp1.456.000
16	24200-70800-000	BEARING SET	1	Rp261.000
17	24119-70C00-000	SPACER, INPUT SHAFT 5TH GEAR	1	Rp255.000
18	24431-63B20-000	RING, 2ND GEAR SYNC	1	Rp247.000
19	24441-60B00-000	SPRING, LOW SPEED SYNC	2	Rp22.000
20	24420-70C01-000	HUB ASSY, 5TH SPEED SYNC	1	Rp1.237.000
21	24473-70C00-000	KEY, 5TH SPEED SYNC	3	Rp32.000
22	24415-54G00-000	PLATE, 5TH SYNC HUB	1	Rp54.000
23	DISCONTINUE SUB: 24131-71C40-000	SHAFT, TRANSMISSION COUNTER	1	-
24	09265-28005-000	BEARING ASSY (28X52X16)	1	Rp667.000
25	DISCONTINUE SUB: 24311-71C00-000	GEAR, COUNTERSHAFT 1ST	1	-
26	09263-37005-000	BEARING (37X42X23.8)	1	Rp189.500
27	24431-70C00-000	RING, 1ST GEAR SYNCH	1	Rp315.500
28	24441-70C00-000	SPRING, LOW SPEED SYNC	2	Rp23.000
29	24400-55G00-000	HUB SET, LOW SPEED	1	Rp1.870.500
30	24471-70C00-000	KEY, LOW SPEED SYNC	3	Rp30.000
31	24451-70C00-000	CIRCLIP, LOW SPEED SYNC HUB	1	Rp31.000
32	24321-55G01-000 SUB: 24321-55G00-000	GEAR, COUNTERSHAFT 2ND	1	Rp1.279.500
33	09263-35027-000	BEARING (35X40X22.8)	1	Rp146.000
34	24430-55G01-000 SUB: 24430-55G00-000	RING, 2ND GEAR SYNC	1	Rp1.048.500
35	DISCONTINUE SUB: 24331-71C00-000	GEAR, COUNTERSHAFT 3RD	1	-
36	DISCONTINUE SUB: 24336-70C00-000	SPACER, 3RD & 4TH GEAR	1	-
37	24341-71C00-000	GEAR, COUNTERSHAFT 4TH	1	Rp1.001.000
38	09265-25029-000	BEARING (25X48X15.85)	1	Rp601.000
39	08331-3124A-000 SUB: 08331-31246-000	CIRCLIP	1	Rp15.000
40-7	09181-41008-000	SHIM (T:0.85)	0	Rp44.000
40-13	09181-41014-000	SHIM (T:1.15)	0	Rp44.000
40-12	09181-41013-000	SHIM (T:1.10)	0	Rp44.000
40-11	09181-41012-000	SHIM (T:1.05)	0	Rp44.000
40-10	09181-41011-000	SHIM (T:1.00)	0	Rp47.500
40-9	09181-41010-000	SHIM (T:0.95)	0	Rp44.000
40-8	09181-41009-000	SHIM (T:0.90)	0	Rp44.000
40-6	09181-41007-000	SHIM (T:0.80)	0	Rp47.500
40-5	09181-41006-000	SHIM (T:0.75)	0	Rp44.000
40-4	09181-41005-000	SHIM (T:0.70)	0	Rp44.000
40-3	09181-41004-000	SHIM (T:0.65)	0	Rp44.000
40-2	DISCONTINUE SUB: 09181-41003-000	SHIM (T:0.60)	0	-
40-1	DISCONTINUE SUB: 09181-41002-000	SHIM (T:0.55)	0	-
41	24351-71C00-000	GEAR, COUNTERSHAFT 5TH	1	Rp1.019.500
42	09159-20009-000	NUT	1	Rp74.000
43	DISCONTINUE SUB: 24551-70C02-000	SHAFT, REVERSE GEAR	1	-
44	24560-70C60-000 SUB: 24560-70C20-000	GEAR, REVERSE IDLER	1	Rp924.000
45	09161-18004-000	WASHER (18X27X5.5)	1	Rp34.500
46	24565-60B00-000	BOLT, REVERSE SHAFT	1	Rp21.500
47	09168-08016-000 SUB: 09168B08016N000	GASKET (8.2X14X1)	1	Rp25.000
48	09380-72002-000	RING	1	Rp42.500	2003-3%
