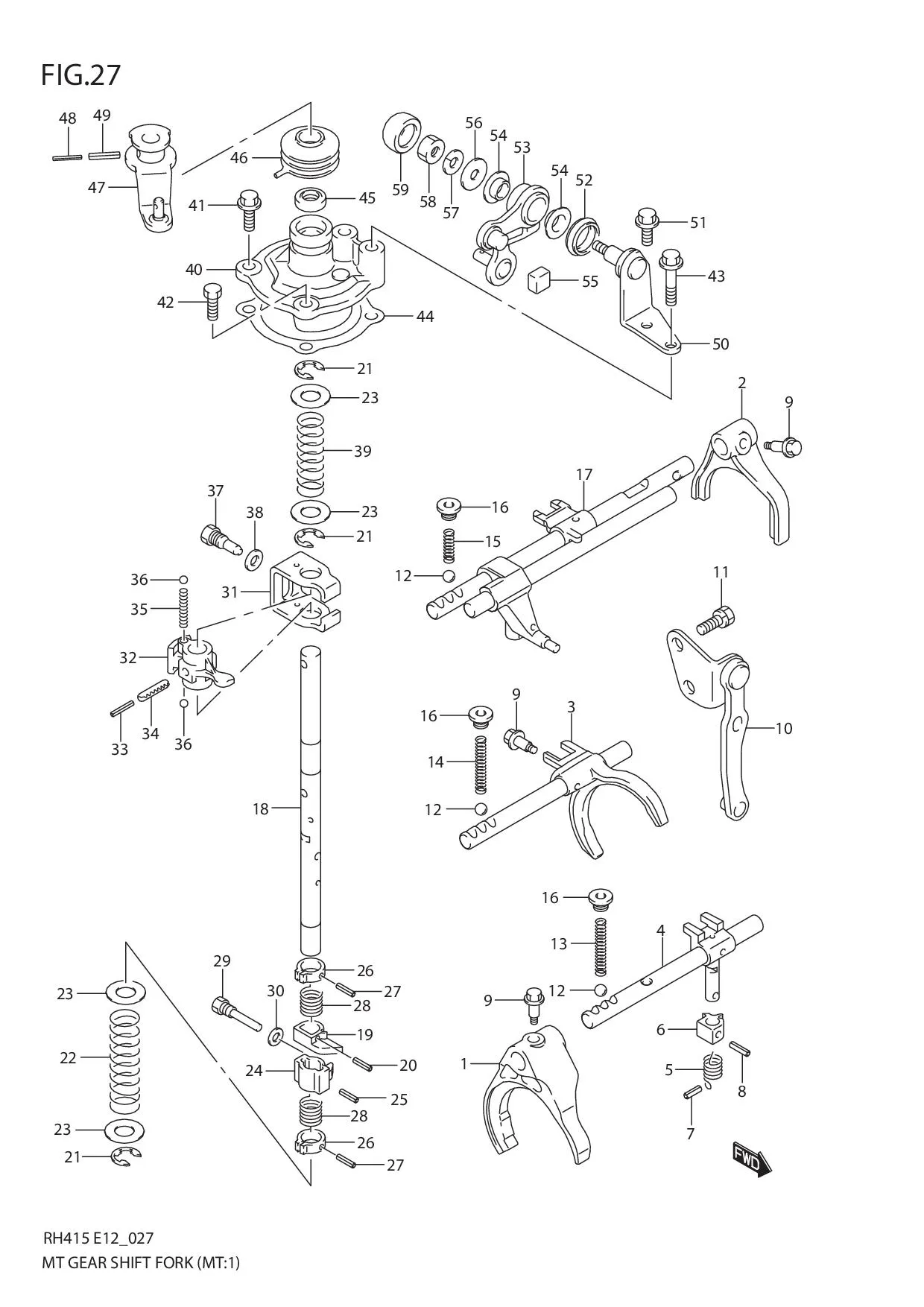

FIG.27 MT GEAR SHIFT FORK (MT:TYPE 1)

FIG.27 MT GEAR SHIFT FORK (MT:TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 25211-70C01-000		 FORK, LOW SPEED GEAR SHIFT 1 -
2 25231-54G01-000
SUB: 25231-54G00-000		 FORK, 5TH GEAR SHIFT 1 Rp647.500
3 DISCONTINUE
SUB: 25280-74C00-000		 YOKE ASSY, HIGH SPEED GEAR SHF 1 -
4 DISCONTINUE
SUB: 25270-74C00-000		 YOKE ASSY, LOW SPEED GEAR SHF 1 -
5 DISCONTINUE
SUB: 25292-74C01-000		 SPRING, CAM RETURN NO.2 1 -
6 DISCONTINUE
SUB: 25293-74C00-000		 CAM, GEAR SHIFT NO.2 1 -
7 DISCONTINUE
SUB: 09205-04015-000		 SPRING PIN (4.5X20) 1 -
8 DISCONTINUE
SUB: 09205-04017-000		 SPRING PIN (4.5X15) 1 -
9 25291-70C00-000 BOLT, LOW & HIGH SPEED FORK 3 Rp19.500
10 25460-70C00-000 LEVER, REVERSE GEAR SHIFT 1 Rp200.000
11 01570-0820B-000
SUB: 01570-08203-000		 BOLT 2 Rp31.000
12 06111-12004-000 BALL 3 Rp14.000
13 25415-70C01-000 SPRING, LOW SPEED LOCATING 1 Rp39.000
14 25425-70C02-000 SPRING, HIGH SPEED LOCATING 1 Rp37.000
15 25435-70C02-000 SPRING, 5TH SPEED LOCATING 1 Rp39.000
16 09248-12005-000 PLUG 3 Rp34.000
17 DISCONTINUE
SUB: 25403-54G01-000		 SHAFT, 5TH & REV GEAR SHF 1 -
18 DISCONTINUE
SUB: 25571-74C03-000		 SHAFT, GEAR SHIFT & SELECT 1 -
19 DISCONTINUE
SUB: 25331-74C00-000		 CAM, GEAR SHIFT NO.1 1 -
20 DISCONTINUE
SUB: 09205-04015-000		 SPRING PIN (4.5X20) 1 -
21 08332-1110A-000
SUB: 08332-11126-000		 E RING 3 Rp12.500
22 DISCONTINUE
SUB: 25576-60D20-000		 SPRING, LOW SELECT 1 -
23 08212M14301-000 WASHER 4 Rp4.500
24 25581-51K01-000
SUB: 25581M50F00-000		 CAM, 5TH & REVERSE 1 Rp199.500
25 DISCONTINUE
SUB: 09205-04015-000		 SPRING PIN (4.5X20) 1 -
26 DISCONTINUE
SUB: 25582-60B51-000		 GUIDE, 5TH & REV GEAR SHF 2 -
27 DISCONTINUE
SUB: 09205-03020-000		 SPRING PIN (3X22) 2 -
28 25583M60B50-000 SPRING, CAM GUIDE RETURN 2 Rp6.500
29 DISCONTINUE
SUB: 25584-70C00-000		 BOLT, 5TH TO REVERSE GUIDE 1 -
30 08322M0108A-000
SUB: 08322M01083-000		 WASHER 1 Rp5.500
31 DISCONTINUE
SUB: 25311-74C00-000		 PLATE, GEAR SHIFT INTERLOCK 1 -
32 DISCONTINUE
SUB: 25541-70C00-000		 LEVER, GEAR SHIFT & SELECT 1 -
33 09205M03016-000 SPRING PIN (3.5X28) 1 Rp4.500
34 09205M06022-000
SUB: 09205M06004-000		 SPRING PIN (6X28) 1 Rp6.500
35 DISCONTINUE
SUB: 25312-70C00-000		 SPRING, GEAR SHIFT INTERLOCK 1 -
36 06111M07004-000 BALL 2 Rp3.000
37 DISCONTINUE
SUB: 25321-60B01-000		 BOLT, GEAR SHIFT INTERLOCK 1 -
38 08322-0110B-000
SUB: 08322B01103N000		 WASHER 1 Rp4.500
39 DISCONTINUE
SUB: 25576-83E00-000		 SPRING, REVERSE SELECT 1 -
40-1 DISCONTINUE
SUB: 25573-70C00-000		 CASE, GEAR SHIFT GUIDE 1 -
40-2 DISCONTINUE
SUB: 25573-86G41-000		 CASE, GEAR SHIFT GUIDE 1 - 2003-7%
41 01550-0825A-000
SUB: 01550-08253-000		 BOLT 2 Rp3.500
42 09103-08419-000
SUB: 09103-08152-000		 BOLT (8X25) 1 Rp14.000
43 09103-08366-000 BOLT (8X45) 1 Rp25.500
44 25574-74B00-000 GASKET, GEAR SHIFT GUIDE CASE 1 Rp42.500
45 09283M14005-000
SUB: 09283-14006-000		 SEAL, OIL (14X22X6) 1 Rp9.000
46 25651M68K00-000
SUB: 25651M74B00-000		 BOOT, SHIFT & SELECT SHIFT OIL 1 Rp10.500
47 DISCONTINUE
SUB: 25610-80G00-000		 LEVER, SHIFT CABLE 1 -
48 09205M03049-000
SUB: 09205M03037-000		 SPRING PIN (3X25) 1 Rp6.500
49 09205M06016-000
SUB: 09205-06007-000		 SPRING PIN (6X25) 1 Rp4.500
50 DISCONTINUE
SUB: 25630-70C01-000		 BRACKET, SELECT LEVER 1 -
51-1 01550-0820A-000
SUB: 01550-08203-000		 BOLT 1 Rp5.500
51-2 01550-0825A-000
SUB: 01550-08253-000		 BOLT 1 Rp3.500 2004-1%
52 25624M74B00-000 BOOT, SELECT LEVER INSIDE 1 Rp6.500
53 DISCONTINUE
SUB: 25620-70C00-000		 LEVER, SELECT CABLE 1 -
54 25558-74B01-000 BUSH, SELECT LEVER BOSS 2 Rp35.000
55 25559-50F00-000 BUSH, SELECT LEVER SHAFT 1 Rp53.500
56 09160-08151-000
SUB: 09160-08133-000		 WASHER (8.5X26X1.6) 1 Rp16.500
57 08321M01083-000 LOCK WASHER 1 Rp11.000
58 DISCONTINUE
SUB: 08310B00083N000		 NUT 1 -
59 25625M68K00-000
SUB: 25625M74B00-000		 BOOT, SELECT LEVER OUTSIDE 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
