DT25 30 P40 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER (DT25K P36)FIG 2 CYLINDER (DT30 P40)FIG 3 CYLINDER (DT30R P40)FIG 4 CRANKSHAFT (DT25K P36)FIG 5 CRANKSHAFT (DT30 P40)FIG 6 CRANKSHAFT (DT30R P40)FIG 7 INLET CASE (DT25K P36)FIG 8 INLET CASE (DT30 P40)FIG 9 INLET CASE (DT30R P40)FIG 10 CARBURETOR (DT25K P36)FIG 11 CARBURETOR (DT30 P40)FIG 12 CARBURETOR (DT30R P40)FIG 13 OIL SEAL HOUSING (DT25K P36)FIG 14 OIL SEAL HOUSING (DT30 P40)FIG 15 OIL SEAL HOUSING (DT30R P40)FIG 16 EXHAUST TUBE (DT25K P36)FIG 17 EXHAUST TUBE (DT30 P40)FIG 18 EXHAUST TUBE (DT30R P40)FIG 19 FUEL PUMP (DT25K P36)FIG 20 FUEL PUMP (DT30 P40)FIG 21 FUEL PUMP (DT30R P40)FIG 22 WATER PUMP (DT25K P36)FIG 23 WATER PUMP (DT30 P40)FIG 24 WATER PUMP (DT30R P40)FIG 25 RECOIL STARTER (DT25K P36)FIG 26 RECOIL STARTER (DT30 P40)FIG 27 RECOIL STARTER (DT30R P40)FIG 28 THROTTLE CONTROL (DT25K P36)FIG 29 THROTTLE CONTROL (DT30 P40)FIG 30 THROTTLE CONTROL (DT30R P40)FIG 31 CLUTCH (DT25K P36)FIG 32 CLUTCH (DT30 P40)FIG 33 CLUTCH (DT30R P40)FIG 34 TRANSMISSION (DT25K P36)FIG 35 TRANSMISSION (DT30 P40)FIG 36 TRANSMISSION (DT30R P40)FIG 37 STARTING MOTOR (DT30 P40)FIG 38 STARTING MOTOR (DT30R P40)FIG 39 MAGNETO (DT25K P36)FIG 40 MAGNETO (DT30 P40)FIG 41 MAGNETO (DT30R P40)FIG 42 IGNITION (DT25K P36)FIG 43 IGNITION (DT30 P40)FIG 44 IGNITION (DT30R P40)FIG 45 HARNESS (DT25K P36)FIG 46 HARNESS (DT30 P40)FIG 47 HARNESS (DT30R P40)FIG 48 SWITCH (DT25K P36)FIG 49 SWITCH (DT30 P40)FIG 50 SWITCH (DT30R P40)FIG 51 CLAMP BRACKETFIG 52 SWIVEL BRACKET (DT25K P36)FIG 53 SWIVEL BRACKET (DT30 P40)FIG 54 SWIVEL BRACKET (DT30R P40)FIG 55 DRIVE SHAFT HOUSING (DT25K P36)FIG 56 DRIVE SHAFT HOUSING (DT30 P40)FIG 57 DRIVE SHAFT HOUSING (DT30R P40)FIG 58 GEAR CASEFIG 59 UNDER COVER (DT25K P36)FIG 60 UNDER COVER (DT30 P40)FIG 61 UNDER COVER (DT30R P40)FIG 62 ENGINE COVER (DT25K P36)FIG 63 ENGINE COVER (DT30 P40)FIG 64 ENGINE COVER (DT30R P40)FIG 65 HANDLE (DT25K P36)FIG 66 HANDLE (DT30 P40)FIG 67 FUEL TANK (RESIN,12L) (DT25K P36)FIG 68 FUEL TANK (RESIN,25L) (DT25K P36)FIG 69 FUEL TANK (RESIN,25L) (DT30 P40)FIG 70 FUEL TANK (RESIN,25L) (DT30R P40)FIG 71 REMOCON PARTS (DT30R P40)FIG 72 REMOTE CONTROL (DT30R P40)FIG 73 DRAG LINK (DT30R P40)FIG 74 OPT:ELECTRICAL (MANUAL STARTER) (DT25K P36)FIG 75 OPT:ELECTRICAL (MANUAL STARTER) (DT30 P40)FIG 76 OPT:ELECTRICAL (ELECTRIC STARTER) (DT30 P40)FIG 77 OPT:ELECTRICAL (ELECTRIC STARTER) (DT30R P40)FIG 78 OPT:REGULATOR (DT25K P36)FIG 79 OPT:REGULATOR (DT30 P40)FIG 80 OPT:REGULATOR (DT30R P40)FIG 81 OPT:METER (DT30 P40)FIG 82 OPT:METER (DT30R P40)FIG 83 OPT:SWITCH PANEL (DT30 P40)FIG 84 OPT:SWITCH PANEL (DT30R P40)FIG 85 OPT:REMOCON PARTSFIG 86 OPT:REMOTE CONTROLFIG 87 OPT:DRAG LINK

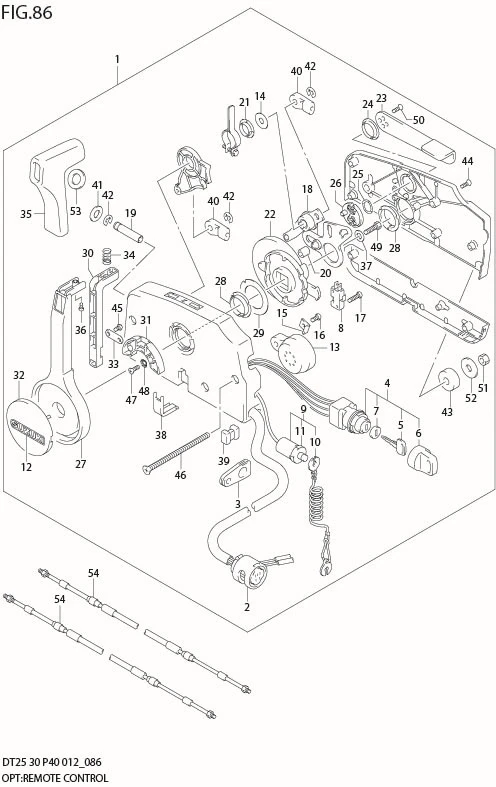

FIG 86 OPT:REMOTE CONTROL

FIG 86 OPT:REMOTE CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1-2 67200-939B4-000
SUB: 67200-939B2-000		 REMOTE CONTROL ASSY 1 Rp3.089.500
1-1 DISCONTINUE
SUB: 67200-97E42-000		 REMOTE CONTROL ASSY 1 -
2 36620-95D10-000 ?WIRE ASSY 1 Rp2.067.000 FOR 67200-97E42
3 36628-92E00-000 ?GROMMET 1 Rp42.000
4 DISCONTINUE
SUB: 37110-99E00-000		 ?SWITCH ASSY 1 - FOR 67200-97E42
5-1 DISCONTINUE
SUB: 37141-99E00-000		 ??KEY (931) 1 - FOR 67200-97E42
5-12 DISCONTINUE
SUB: 37141-99EB0-000		 ??KEY (942) 1 - FOR 67200-97E42
5-11 DISCONTINUE
SUB: 37141-99EA0-000		 ??KEY (941) 1 - FOR 67200-97E42
5-10 DISCONTINUE
SUB: 37141-99E90-000		 ??KEY (940) 1 - FOR 67200-97E42
5-9 DISCONTINUE
SUB: 37141-99E80-000		 ??KEY (939) 1 - FOR 67200-97E42
5-8 DISCONTINUE
SUB: 37141-99E70-000		 ??KEY (938) 1 - FOR 67200-97E42
5-7 DISCONTINUE
SUB: 37141-99E60-000		 ??KEY (937) 1 - FOR 67200-97E42
5-6 DISCONTINUE
SUB: 37141-99E50-000		 ??KEY (936) 1 - FOR 67200-97E42
5-5 DISCONTINUE
SUB: 37141-99E40-000		 ??KEY (935) 1 - FOR 67200-97E42
5-4 DISCONTINUE
SUB: 37141-99E30-000		 ??KEY (934) 1 - FOR 67200-97E42
5-3 DISCONTINUE
SUB: 37141-99E20-000		 ??KEY (933) 1 - FOR 67200-97E42
5-2 DISCONTINUE
SUB: 37141-99E10-000		 ??KEY (932) 1 - FOR 67200-97E42
6 37143-99E00-000 ??CAP 1 Rp26.000 FOR 67200-97E42
7 37149-93J00-000 ??CAP 1 Rp87.500 FOR 67200-97E42
8 DISCONTINUE
SUB: 37721-94600-000		 ?SWITCH 1 - FOR 67200-97E42
9-1 37820-92E05-000
SUB: 37820-92E03-000		 ?SWITCH ASSY 1 Rp369.500 FOR 67200-97E42
9-2 37830-95D04-000
SUB: 37830-95D02-000		 ?SWITCH ASSY 1 Rp491.500 FOR 67200-939B2
10 37823-92E02-000
SUB: 37823-92E01-000		 ??PLATE 1 Rp221.500
11 37826-92E00-000 ??NUT 1 Rp65.500
12 68165-16B01-13L
SUB: 68165-16B00-13L		 ?EMBLEM 1 Rp47.500
13 DISCONTINUE
SUB: 38500-92X50-000		 ?BUZZER 1 - FOR 67200-97E42
14 67212-95600-000 ?WASHER 1 Rp25.500
15 67213-92E00-000 ?BRACKET 1 Rp35.000 FOR 67200-97E42
16 DISCONTINUE
SUB: 09125-05042-000		 ?SCREW (5X10) 1 - FOR 67200-97E42
17 67296-92E10-000 ?SCREW 2 Rp17.000 FOR 67200-97E42
18 DISCONTINUE
SUB: 67220-95620-000		 ?PLATE ASSY 1 -
19 67223-99E10-000 ?KNOB 1 Rp59.000
20 67229-95600-000 ?ROLLER 1 Rp54.500
21 67232-95600-000 ?BUSH 1 Rp44.000
22 DISCONTINUE
SUB: 67238-87D00-000		 ?GEAR 1 -
23 67241-99E10-000 ?LEVER 1 Rp177.000
24 67243-95600-000 ?BUSH 1 Rp30.500
25 67244-95600-000 ?WAVE WASHER 1 Rp27.500
26 67245-95600-000 ?DRUM 1 Rp194.000
27 67251-99E10-000 ?LEVER 1 Rp617.000
28 67252-95600-000 ?BUSH 1 Rp37.500
29 67253-95600-000 ?WASHER 1 Rp37.500
30 67255-99E00-000 ?ARM 1 Rp143.000
31 67256-95600-000 ?HOLDER 1 Rp80.500
32 67257-99E00-000 ?CAP 1 Rp77.000
33 67258-99E00-000 ?BRACKET 1 Rp31.000
34 67259-87D00-000 ?SPRING 1 Rp45.500
35 67261-99E00-000 ?GRIP 1 Rp354.000
36 67296-94310-000 ?SCREW 1 Rp14.500
37 67264-95600-000 ?WASHER 1 Rp22.000
38 67267-95610-000 ?COVER 1 Rp44.500
39 67273-95601-000
SUB: 67273-95600-000		 ?SPACER 1 Rp35.000
40 67275-95600-000 ?END 2 Rp70.500
41 67288-92E00-000 ?WASHER 1 Rp24.500
42 67292-94300-000 ?E RING 3 Rp11.000
43 67294-95600-000 ?SPACER 3 Rp35.000
44 67296-90J00-000 ?SCREW 5 Rp17.000
45 67296-94300-000 ?SCREW 2 Rp10.500
46 67296-95600-000 ?SCREW 3 Rp47.000
47 67296-95610-000 ?SCREW 2 Rp23.500
48 67297-95600-000 ?WASHER 2 Rp23.500
49 09100-08232-000 ?BOLT (8X30) 1 Rp29.000
50 DISCONTINUE
SUB: 09126-05003-000		 ?SCREW (5X12) 2 -
51 09140-06020-000 ?NUT 3 Rp13.500
52 09160-06104-000 ?WASHER (6.5X24X2) 3 Rp18.000
53 37859-90J00-000 ?SPACER 1 Rp26.500
54-9 67320-93J80-000 CABLE 2 Rp922.000
54-8 DISCONTINUE
SUB: 67320-93J70-000		 CABLE 2 -
54-7 67320-93J60-000 CABLE 2 Rp820.000
54-6 67320-93J50-000 CABLE 2 Rp767.500
54-5 67320-93J40-000 CABLE 2 Rp715.000
54-4 67320-93J30-000 CABLE 2 Rp662.500
54-3 67320-93J20-000 CABLE 2 Rp613.500
54-2 67320-93J10-000 CABLE 2 Rp564.500
54-1 DISCONTINUE
SUB: 67320-93J00-000		 CABLE 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
