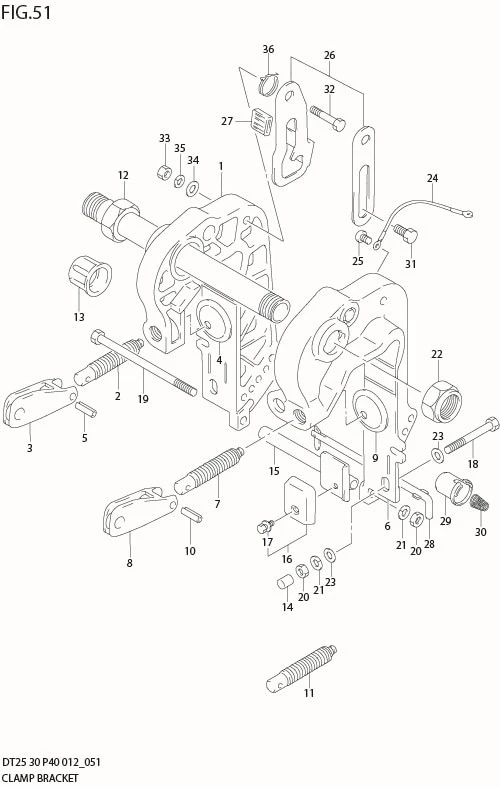

FIG 51 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-Nov	41211-93900-000	SCREW	2	Rp169.000	OPT
1	41111-91L00-0EP	BRACKET	1	Rp1.320.500
2-Nov	41211-93003-000	SCREW	2	Rp142.500	OPT
2	41211-93003-000	SCREW	1	Rp142.500
3	41212-91L00-0EP	HANDLE	1	Rp160.000
3-Nov	41211-93920-000	SCREW	2	Rp142.500	OPT
4	41213-94J01-000 SUB: 41213-98100-000	PLATE	1	Rp38.000
5	09205M06016-000 SUB: 09205-06007-000	PIN	1	Rp4.500
6	41121-91L00-0EP	BRACKET	1	Rp1.374.000
7	41211-93003-000	SCREW	1	Rp142.500
8	41212-91L00-0EP	HANDLE	1	Rp160.000
9	41213-94J01-000 SUB: 41213-98100-000	PLATE	1	Rp38.000
10	09205M06016-000 SUB: 09205-06007-000	PIN	1	Rp4.500
12	41130-91L01-000 SUB: 41130-96361-000	SHAFT	1	Rp1.440.500
13	41151-94500-000	CAP	2	Rp23.000
14	41153-96300-000	CAP	2	Rp17.500
15	DISCONTINUE SUB: 41310-96310-000	ROD	1	-
16	55320-95311-000	ZINC SET	1	Rp119.500
17	09116-06094-000	?BOLT (6X15)	1	Rp19.000
18	DISCONTINUE SUB: 09100-08239-000	BOLT (8X90)	2	-
19	DISCONTINUE SUB: 09100-08295-000	BOLT (8X165)	1	-
20	09140-08023-XC0	NUT	3	Rp22.500
21	29162-93J10-000	WASHER	3	Rp16.000
22	09159-22006-000	NUT	1	Rp186.500
23	09160-08081-000	WASHER (8.5X23X1.5)	4	Rp17.500
24	36894-95201-000	LEAD	1	Rp110.500
25	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	2	Rp14.000
26	41200-91L00-000 SUB: 41200-95D00-000	ARM	1	Rp382.500
27	41225-94400-000	RUBBER	1	Rp30.000
28	45420-91LL1-000 SUB: 45420-91L00-000	PIN	1	Rp510.000
29	45425-94J00-000	STOPPER	1	Rp29.500
30	09441-17001-000	SPRING	1	Rp14.500
31	09111-10067-000 SUB: 09111-10032-000	BOLT (10X20.4)	2	Rp52.500
32	09111-10068-000 SUB: 09111-10055-000	BOLT (10X48.5)	2	Rp156.500
33	09140-10031-000 SUB: 29141-93J20-000	NUT	2	Rp14.500
34	09160-10082-000	WASHER (10.5X19X2)	2	Rp12.000
35	09162-10005-000	LOCK WASHER	2	Rp13.000
36	09448-29015-000	SPRING	1	Rp37.500
