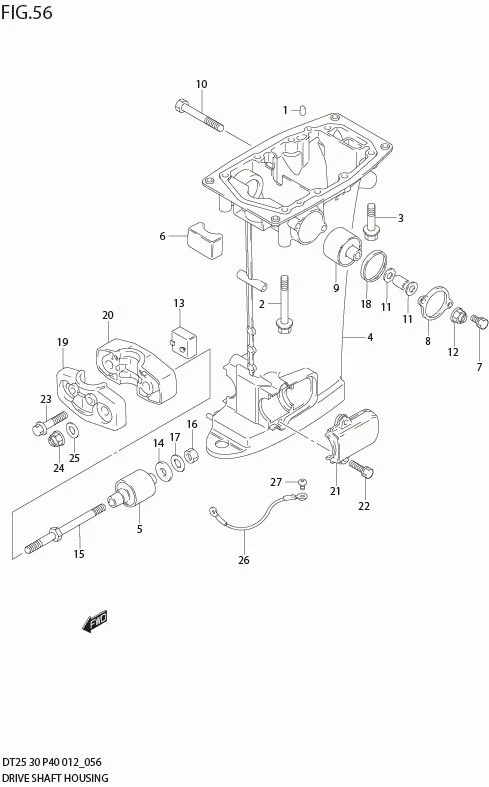

FIG 56 DRIVE SHAFT HOUSING (DT30 P40)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 09202-06023-000	PIN	2	-
2	09118-08172-000 SUB: 09118-08098-000	BOLT (8X85)	4	Rp53.000
3	09118-08090-000	BOLT (8X52)	4	Rp83.000
4-1	52110-91L00-0EP	HOUSING	1	Rp2.796.000	TRANSOM(S)
4-2	52110-91L10-0EP	HOUSING	1	Rp3.485.500	TRANSOM(L)
5	DISCONTINUE SUB: 54160-96310-000	MOUNTING	2	-
6	54121-96301-000	MOUNTING	1	Rp54.500
7	09117-06030-000	BOLT (6X16)	4	Rp18.000
8	54137-91L00-0EP	COVER	2	Rp128.000
9	DISCONTINUE SUB: 54130-96320-000	MOUNTING	2	-
10	DISCONTINUE SUB: 09100-10260-000	BOLT (10X75)	2	-
11	09160-10082-000	WASHER (10.5X19X2)	4	Rp12.000
12	09159-10050-000	NUT	2	Rp23.500
13	DISCONTINUE SUB: 54151-96300-000	MOUNTING	1	-
14	54165-96310-000	DAMPER	2	Rp21.500
15	54166-96311-000	BOLT	2	Rp350.500
16	09140-10032-000	NUT	2	Rp15.000
17	DISCONTINUE SUB: 09160-10083-000	WASHER (10.5X30X3.2)	2	-
18	DISCONTINUE SUB: 54138-96300-000	SLEEVE	2	-
19	54211-91L00-0EP	BRACKET	1	Rp333.500
20	54212-91L00-0EP	BRACKET	1	Rp242.500
21	54221-91L00-0EP	COVER	2	Rp360.000
22	DISCONTINUE SUB: 09117-06032-000	BOLT (6X30)	4	-
23	09116-08128-000	BOLT (8X40)	2	Rp124.500
24	09159-10050-000	NUT	2	Rp23.500
25	09160-10082-000	WASHER (10.5X19X2)	2	Rp12.000
26	36894-95201-000	LEAD (L:165)	1	Rp110.500
27	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	2	Rp14.000
