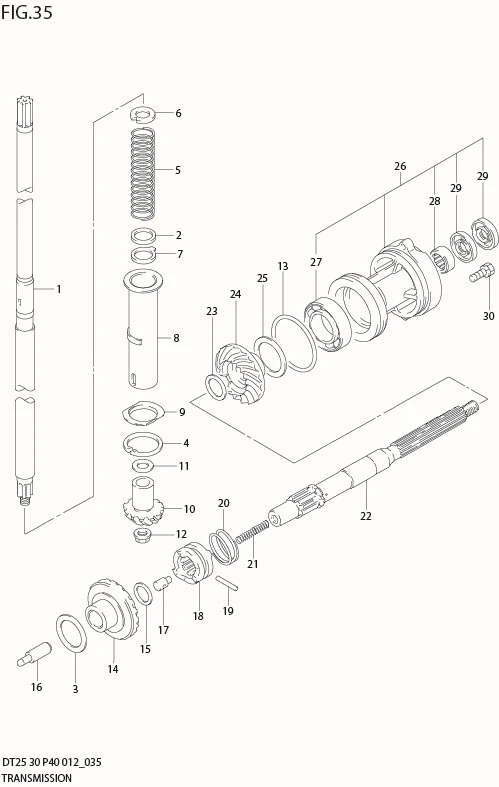

FIG 35 TRANSMISSION (DT30 P40)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	57110-91L00-000 SUB: 57110-96303-000	SHAFT	1	Rp2.085.500	TRANSOM(L)
1-1	DISCONTINUE SUB: 57110-96313-000	SHAFT	1	-	TRANSOM(S)
1-Nov	09160-15030-000	WASHER (15X20X1.7)	1	Rp19.000
2-Nov	DISCONTINUE SUB: 09160-15031-000	WASHER (15X20X1.8)	1	-
2	08211-20253-000	THRUST WASHER	1	Rp14.000
3-2	09181-25248-000	SHIM (25X40X0.9)	1	Rp19.500
3-3	DISCONTINUE SUB: 09181-25251-000	SHIM (25X40X1)	1	-
3-4	DISCONTINUE SUB: 09160-25032-000	WASHER (25X40X1.1)	1	-
3-5	DISCONTINUE SUB: 09160-25033-000	WASHER (25X40X1.2)	1	-
3-6	DISCONTINUE SUB: 09160-25034-000	WASHER (25X40X1.3)	1	-
3-7	DISCONTINUE SUB: 09160-25035-000	WASHER (25X40X1.4)	1	-
3-8	DISCONTINUE SUB: 09181-25268-000	SHIM (25X40X1.5)	1	-
3-1	DISCONTINUE SUB: 09181-25190-000	SHIM (25X36X0.8)	1	-
3-Nov	DISCONTINUE SUB: 09160-15032-000	WASHER (15X20X1.9)	1	-
4	08331-41406-000	CIRCLIP	1	Rp20.500
4-Nov	09160-15053-000	WASHER (15X20X2.3)	1	Rp9.000
5	DISCONTINUE SUB: 09440-25002-000	SPRING	1	-
5-Nov	09160-15054-000	WASHER (15X20X2.4)	1	Rp9.000
6-Nov	08211-15201-000 SUB: 08211-15203-000	WASHER (T:2.0)	1	Rp13.500
6	09166-17005-000	WASHER	1	Rp35.500
7-Nov	DISCONTINUE SUB: 09160-15033-000	WASHER (15X20X2.1)	1	-
7	09167-20021-000	LOCK WASHER	1	Rp18.000
8-Nov	DISCONTINUE SUB: 08211-15204-000	WASHER (T:2.2)	1	-
8	57133-96302-000	SPACER	1	Rp97.500
9	57134-96301-000	BARRIER	1	Rp37.500
10	57311-91L00-000 SUB: 57311-96320-000	PINION	1	Rp868.000
12	09159-08046-000	NUT	1	Rp49.000
13	09280-75002-000	O RING (D:3.5	1	Rp25.500
14	57510-94L00-000 SUB: 57510-89J00-000	GEAR	1	Rp885.000
15	09181-16008-000	SHIM (16X24X2)	1	Rp19.000
16	57631-96301-000	ROD	1	Rp90.500
17	09209-08016-000	PIN	1	Rp39.000
18	57621-91L10-000 SUB: 57621-96310-000	SHIFTER	1	Rp360.000
19	09202-05021-000	PIN	1	Rp19.000
20	09440-35004-000	SPRING	1	Rp13.500
21	09440-07041-000	SPRING	1	Rp13.000
22	57610-96311-000	SHAFT	1	Rp1.722.500
23-3	09160-20070-000	WASHER (20X25.6X2)	1	Rp25.500
23-6	09160-20073-000	WASHER (20X25.6X2.6)	1	Rp25.500
23-5	09160-20072-000	WASHER (20X25.6X2.4)	1	Rp25.500
23-4	09160-20071-000	WASHER (20X25.6X2.2)	1	Rp25.500
23-2	09160-20069-000	WASHER (20X25.6X1.8)	1	Rp21.000
23-1	09160-20068-000	WASHER (20X25.6X1.6)	1	Rp21.000
24	57521-94L00-000 SUB: 57521-89J00-000	GEAR	1	Rp842.000
25-1	08221-30404-000	THRUST WASHER (T:0.2)	2	Rp17.500
25-2	DISCONTINUE SUB: 09181-30158-000	SHIM (30X40X0.5)	1	-
25-3	DISCONTINUE SUB: 09181-30162-000	SHIM (30X40X0.8)	1	-
26	56120-91L11-0EP SUB: 56120-91L00-0EP	HOUSING	1	Rp1.255.500
27	08113-60060-000	?BEARING	1	Rp180.000
28	09263-20047-000	?BEARING (20X26X20)	1	Rp134.000
29	09289-20009-000	?OIL SEAL (20X34X6.5)	2	Rp52.500
30	09116-06121-000	BOLT (6X25)	2	Rp18.000
