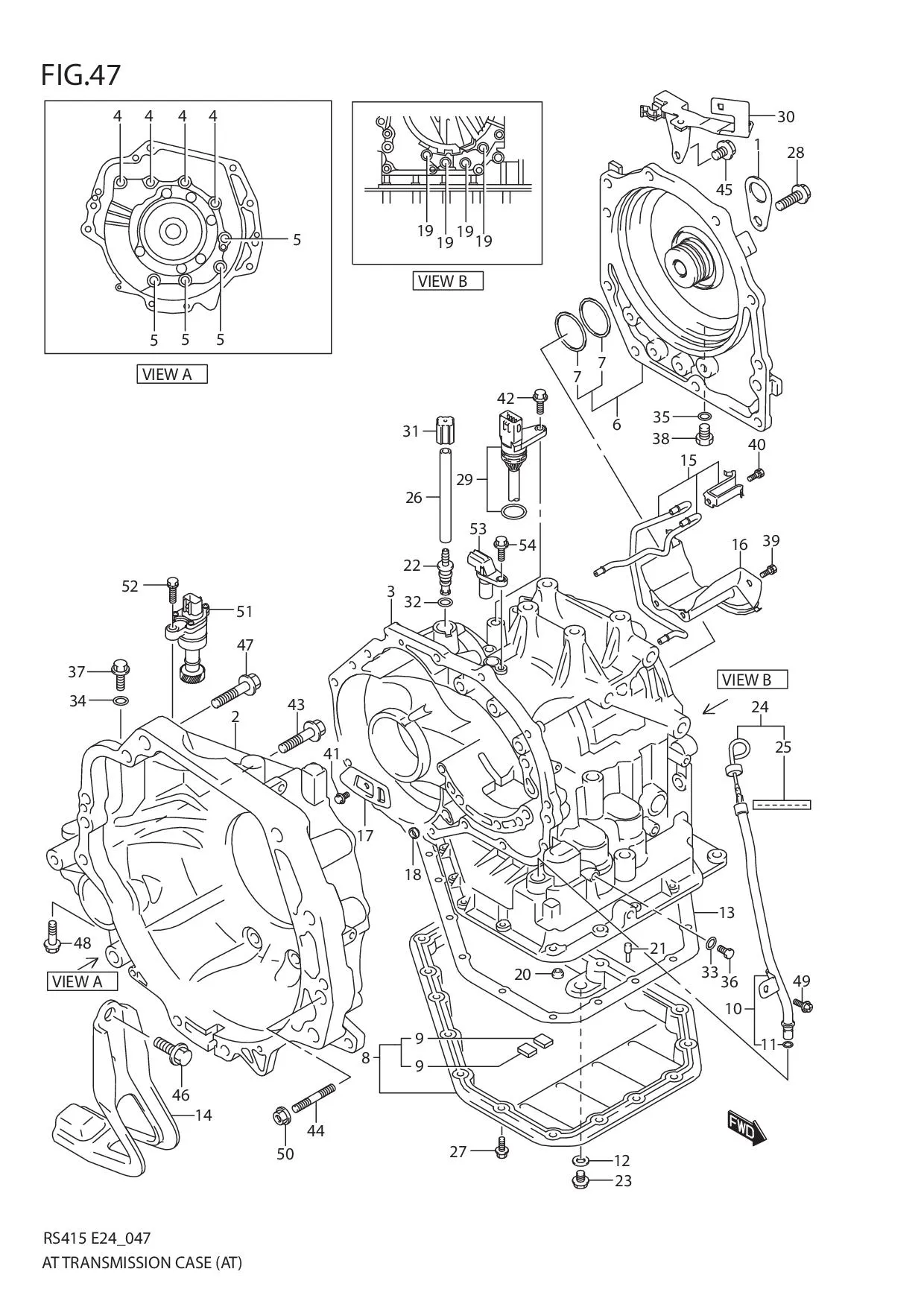

FIG.47 AT TRANSMISSION CASE (AT)

No	No. Part	Description	Qty	Price Per Pcs
1	11851M72B21-000	HOOK, ENGINE	1	Rp6.500
2	24710-79C12-000	HOUSING, TORQUE CONVERTOR	1	-
3	24720-79C10-000	CASE, TRANSMISSION	1	Rp17.925.500
4	DISCONTINUE SUB: 24725-60G10-000	BOLT, HOUSING NO.1	12	-
5	24729-79C10-000	BOLT, HOUSING NO.2	4	Rp32.000
6	24730-55G31-000 SUB: 24730-70H10-000	COVER, REAR	1	Rp3.528.000
7	24732-70H10-000	•RING, REAR COVER SEAL	2	Rp69.500
8	24761-55GT0-000	PAN SET, OIL	1	Rp976.500
9	DISCONTINUE SUB: 24745-59J00-000	•MAGNET, OIL PAN	2	-
10	DISCONTINUE SUB: 24770-63J10-000	TUBE ASSY, OIL FILLER	1	-
11	09280-09008-000	•O RING	1	Rp20.000
12	24781-57B00-000	GASKET, DRAIN PLUG	1	Rp33.500
13	24784-79C10-000	GASKET, OIL PAN	1	Rp130.000
14	DISCONTINUE SUB: 24788-62J10-000	GUARD, OIL PAN	1	-
15	24811-79JT0-000 SUB: 24811-79CT0-000	TUBE SET, DIFF SIDE BEARING	1	Rp257.000
16	DISCONTINUE SUB: 24813-79C10-000	PLATE, OIL RESERVOIR RH	1	-
17	DISCONTINUE SUB: 24814-79C10-000	PLATE, OIL RESERVOIR LH	1	-
18	24815-60G10-000	GASKET, CASE OIL LINE NO.1	1	Rp74.000
19	24816-60G10-000	GASKET, CASE OIL LINE NO.2	4	Rp72.000
20	24818-68J10-000	GASKET, CASE OIL LINE NO.4	1	Rp71.500
21	24819-79C10-000	GASKET, BRAKE DRUM	1	Rp95.000
22	24821-79C10-000	UNION, BREATHER	1	Rp45.000
23	24823-79C10-000	PLUG, DRAIN	1	Rp31.000
24	DISCONTINUE SUB: 24830-63J10-000	GAUGE, OIL LEVEL	1	-
25	DISCONTINUE SUB: 24839-63J10-000	•EMBLEM, ATF	1	-
26	24856-79C10-000	HOSE, BREATHER	1	Rp77.000
27	24882-79C10-000	BOLT, OIL PAN	18	Rp22.000
28	DISCONTINUE SUB: 24734-60G10-000	BOLT, REAR COVER	9	-
29	DISCONTINUE SUB: 24892-55G30-000	HARNESS, SOLENOID WIRE	1	-
30	DISCONTINUE SUB: 26598-79C10-000	BRACKET, HARNESS	1	-
31	27991-65D01-000	PLUG, BREATHER	1	Rp22.500
32	27992-79C10-000	O RING, BREATHER	1	Rp24.000
33	29738-57B00-000	O RING, CASE PLUG	1	Rp47.500
34	29738-57B00-000	O RING, CASE PLUG	2	Rp47.500
35	29738-57B00-000	O RING, CASE PLUG	4	Rp47.500
36	DISCONTINUE SUB: 29849-57B00-000	PLUG, CASE	1	-
37	DISCONTINUE SUB: 29849-57B00-000	PLUG, CASE	2	-
38	DISCONTINUE SUB: 29849-57B00-000	PLUG, CASE	4	-
39	29970-57B00-000	BOLT	3	Rp83.000
40	29970-57B00-000	BOLT	1	Rp83.000
41	26449-65G10-000	BOLT	1	Rp27.500
42	29989-57B00-000	BOLT, SPEED SENSOR	1	Rp69.500
43	09103-12060-000	BOLT (12X50)	1	Rp35.500
44	09108-12012-000	STUD BOLT	1	Rp35.000
45	01550-0812A-000 SUB: 01550B08123N000	BOLT	2	Rp3.500
46	01550-1025A-000 SUB: 01550-10253-000	BOLT	2	Rp3.500
47	01550-12553-000	BOLT	4	-
48	01550-1035B-000 SUB: 01550B10353N000	BOLT	2	Rp5.000
49	02162-0612B-000 SUB: 02162-06123-000	SCREW	1	Rp16.000
50	08316-1012A-000 SUB: 08316-10123-000	NUT	1	Rp6.500
51	26130-70H11-000 SUB: 26130-70H10-000	GEAR, SPEEDOMETER	1	Rp1.145.000
52	DISCONTINUE SUB: 26135-79C10-000	BOLT, SPEED SENSOR	1	-
53	26143-79C10-000	SENSOR, SPEED INPUT	1	Rp1.456.000
54	29989-57B00-000	BOLT, SPEED SENSOR	1	Rp69.500
