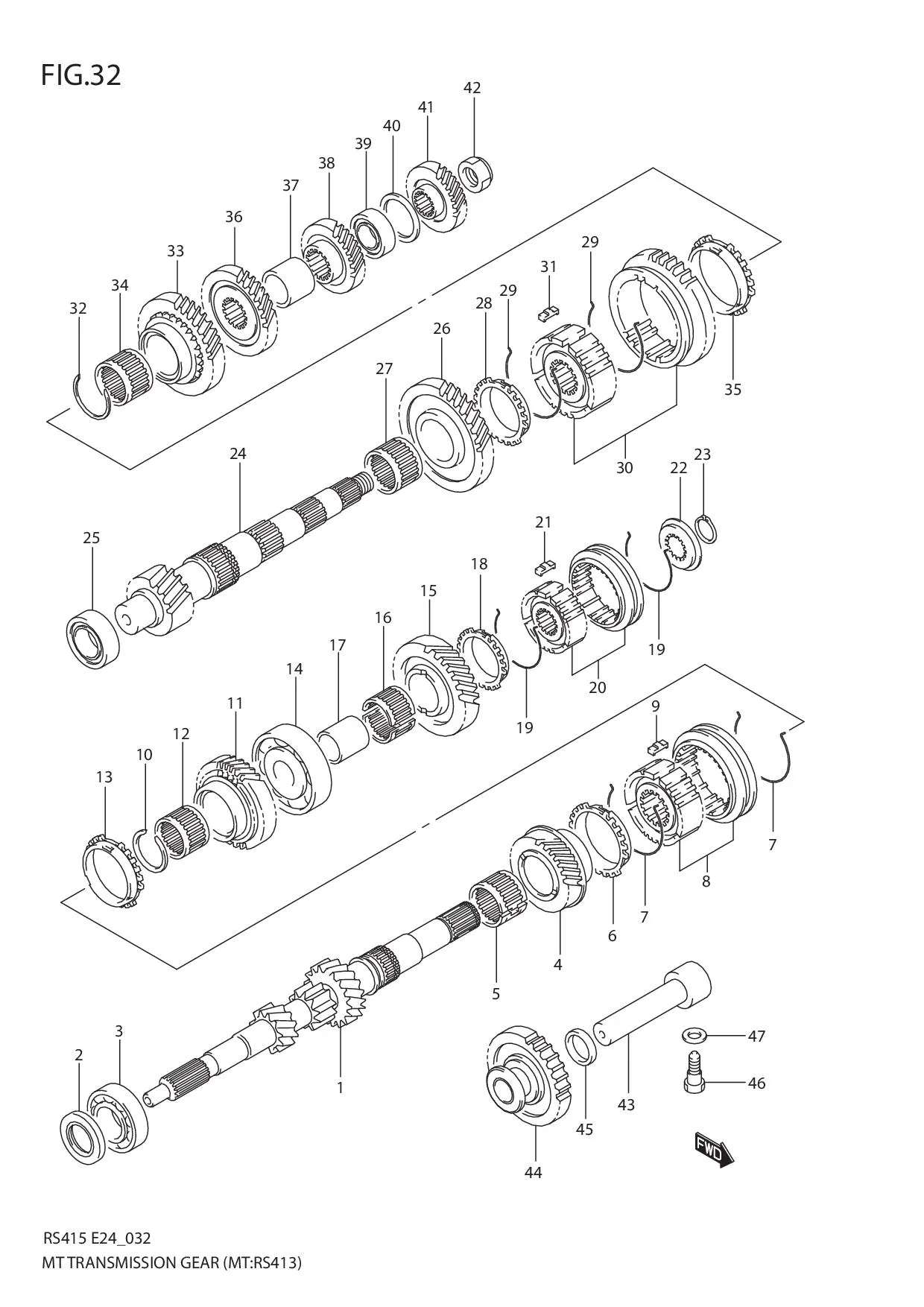

FIG.32 MT TRANSMISSION GEAR (MT:RS413)

No	No. Part	Description	Qty	Price Per Pcs
1	24111-86G00-000	SHAFT, INPUT	1	-
2	24151-60BD1-000 SUB: 24151M60BD1-000	SEAL, OIL	1	Rp47.500
3	24155-67LA0-000 SUB: 09262M22031-000	BEARING, RH (22X52X15)	1	Rp103.500
4	24230-60B13-000 SUB: 24230-60B10-000	GEAR, INPUT SHAFT 3RD	1	Rp1.273.000
5	24283M68K20-000 SUB: 09263M25053-000	BEARING (25X30X23.8)	1	Rp56.500
6	24432-60B20-000	RING, HIGH SPEED SYNC	1	Rp213.500
7	24442-60B00-000	SPRING, HIGH SPEED SYNC	2	Rp21.000
8	24410-72J41-000 SUB: 24410-72J40-000	HUB ASSY, HIGH SPEED SYNC	1	Rp1.241.500
9	24472-60B00-000	KEY, HIGH SPEED SYNC	3	Rp25.000
10	24452-60B00-000 SUB: 24452M60B00-000	CIRCLIP	1	Rp26.500
11	24240-75F20-000	GEAR, INPUT SHAFT 4TH	1	Rp1.295.000
12	DISCONTINUE SUB: 24284-60B20-000	BEARING, 4TH GEAR NEEDLE	1	-
13	24432-60B20-000	RING, SYNC	1	Rp213.500
14	24165-67LA0-000 SUB: 24126-83E00-000	BEARING	1	Rp349.000
15	24114-60B52-000 SUB: 24114-60B51-000	GEAR, INPUT SHAFT 5TH	1	Rp1.047.000
16	24801-60831-000 SUB: 24801-60830-000	BEARING, INPUT SHAFT 5TH GEAR	1	Rp103.500
17	24119M60B51-000	SPACER	1	Rp96.000
18	24432-84041-000	RING, 5TH SPEED SYNC	1	Rp268.000
19	24443-60B50-000	SPRING, 5TH SPEED SYNC	2	Rp19.500
20	24420-72J20-000	HUB ASSY, 5TH SPEED SYNC	1	Rp1.168.000
21	24473-72J00-000	KEY, 5TH SPEED SYNC	3	Rp28.500
22	24415-60B51-000 SUB: 24415-60B50-000	PLATE, 5TH SYNC HUB	1	Rp49.000
23	09380M19005-000 SUB: 09380M19004-000	CIRCLIP	1	Rp5.500
24	24131-70H00-000	SHAFT, COUNTER	1	-
25	24175M68K40-000 SUB: 09265-25036-000	BEARING, RH (25X47X17)	1	Rp283.500
26	24311-70H00-000	GEAR, COUNTER SHAFT 1ST	1	-
27	09263-30030-000	BEARING (30X35X24.8)	1	Rp135.500
28	24431-60B00-000	RING, 1ST GEAR SYNC	1	Rp216.500
29	24441-60B00-000	SPRING	2	Rp22.000
30	24400-83E00-000	HUB ASSY, LOW SPEED SYNC	1	-
31	24471-60B00-000	KEY	3	Rp29.000
32	24452-60B00-000 SUB: 24452M60B00-000	CIRCLIP	1	Rp26.500
33	24321-83E01-000	GEAR, COUNTER SHAFT 2ND	1	-
34	24380-83810-000	BEARING	1	-
35	24430-83E01-000	RING, 2ND GEAR SYNC	1	Rp1.210.000
36	24331-83E00-000	GEAR, COUNTER SHAFT 3RD	1	Rp1.263.500
37	24336-83E01-000	SPACER, 3RD & 4TH GEAR	1	-
38	24341-83E00-000	GEAR, COUNTER SHAFT 4TH	1	Rp1.253.500
39	24185M75J40-000 SUB: 09265M20005-000	BEARING, LH (20X42X15)	1	Rp157.000
40-7	09181M33006-000	SHIM (T:0.80)	0	Rp8.500
40-14	09160M33006-000	SHIM (T:1.15)	0	Rp11.000
40-13	09160M33005-000	SHIM (T:1.10)	0	Rp10.500
40-12	09160M33004-000	SHIM (T:1.05)	0	Rp11.000
40-11	09160M33003-000	SHIM (T:1.00)	0	Rp11.000
40-10	09181M33009-000	SHIM (T:0.95)	0	Rp8.500
40-9	09181M33008-000	SHIM (T:0.90)	0	Rp8.500
40-8	09181M33007-000	SHIM (T:0.85)	0	Rp8.500
40-6	09181M33005-000	SHIM (T:0.75)	0	Rp8.500
40-5	09181M33004-000	SHIM (T:0.70)	0	Rp8.500
40-4	09181M33003-000	SHIM (T:0.65)	0	Rp8.500
40-3	09181M33002-000	SHIM (T:0.60)	0	Rp8.500
40-2	09181M33001-000	SHIM (T:0.55)	0	Rp8.500
40-1	DISCONTINUE SUB: 09170M33421-050	SHIM (T:0.50)	0	-
