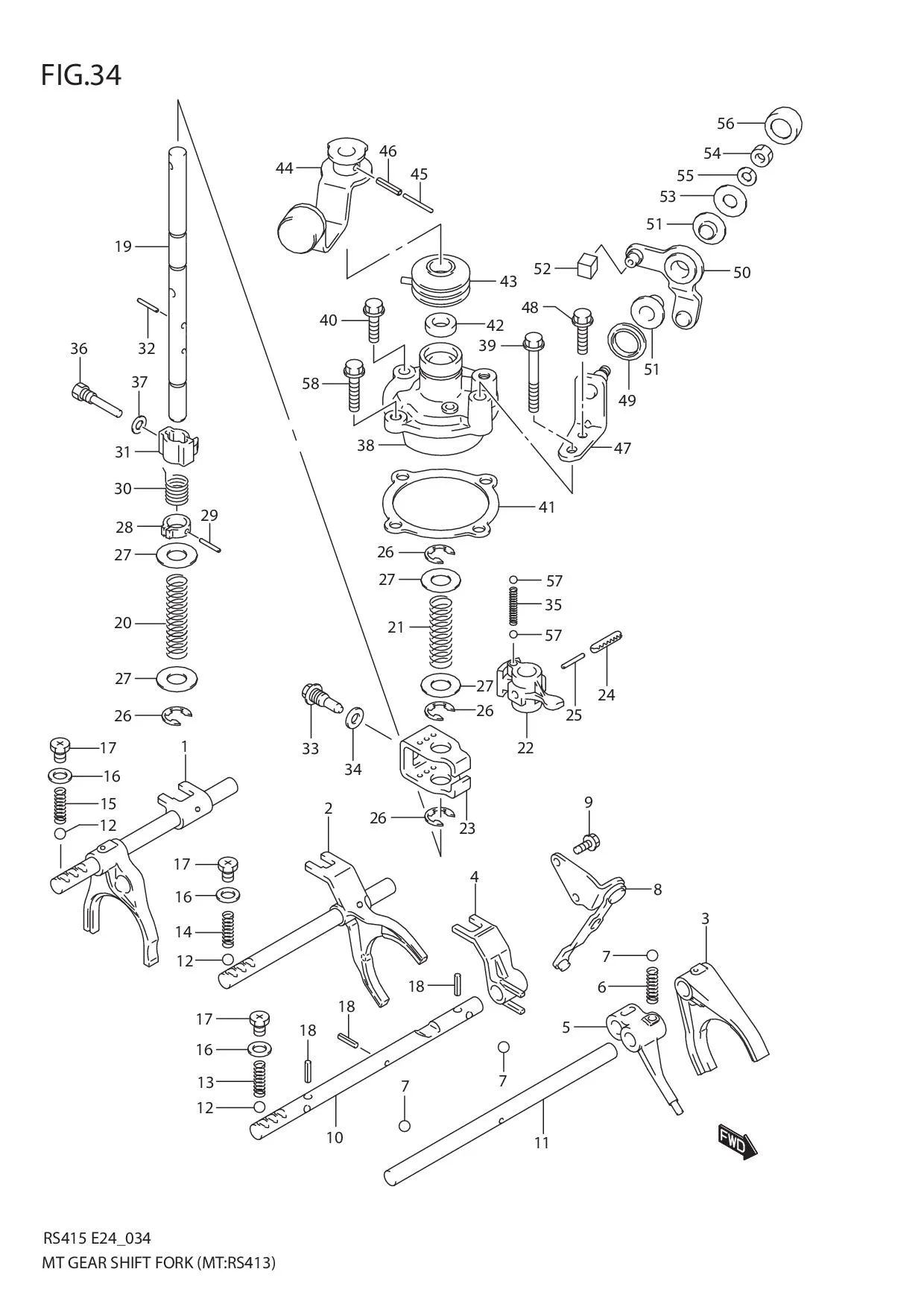

FIG.34 MT GEAR SHIFT FORK (MT:RS413)

No	No. Part	Description	Qty	Price Per Pcs
1	25401-65G01-000	SHAFT ASSY, LOW SPEED	1	-
2	25402-65G01-000	SHAFT ASSY, HIGH SPEED	1	-
3	25231-70H00-000	FORK, 5TH GEAR SHIFT	1	Rp558.000
4	25261-86G00-000	YOKE, 5TH & REVERSE GEAR SHIFT	1	-
5	25251-65G00-000	ARM, REVERSE GEAR SHIFT	1	Rp477.500
6	25255M60B11-000 SUB: 25255M60B01-000	SPRING, REVERSE GEAR SHIFT ARM	1	Rp6.500
7	06111-10003-000	BALL	2	Rp10.000
8	25460-65G00-000	LEVER, REVERSE GEAR SHIFT	1	Rp162.000
9	01570-0820B-000 SUB: 01570-08203-000	BOLT	2	Rp31.000
10	25451-70H01-000	SHAFT, 5TH & REV GEAR SHIFT	1	-
11	25431-70H00-000	SHAFT, 5TH & REV GEAR SHIFT GUIDE	1	Rp254.000
12	06111-10003-000	BALL	3	Rp10.000
13	25415-60B02-000	SPRING, LOW SPEED LOCATING	1	Rp27.000
14	25425-60B10-000	SPRING, HIGH SPEED LOCATING	1	Rp30.000
15	25415-60B02-000	SPRING, 5TH GEAR LOCATING	1	Rp27.000
16	08322-0110B-000 SUB: 08322B01103N000	WASHER	3	Rp4.500
17	09128-10004-000	BOLT (10X9)	3	-
18	DISCONTINUE SUB: 09205-04015-000	SPRING PIN (4.5X20)	3	-
19	25571-83E00-000	SHAFT, GEAR SHIFT & SELECT	1	-
20	25576-86G00-000	SPRING, LOW SPEED SELECT	1	-
21	DISCONTINUE SUB: 25576-83E00-000	SPRING, REVERSE SELECT	1	-
22	25541-86G00-000	LEVER, GEAR SHIFT & SELECT	1	-
23	DISCONTINUE SUB: 25311-59J00-000	PLATE, GEAR SHIFT INTERLOCK	1	-
24	09205M03016-000	SPRING PIN, INNER (3.5X28)	1	Rp4.500
25	09205M06022-000 SUB: 09205M06004-000	SPRING PIN, OUTER (6X28)	1	Rp6.500
26	08332-1110A-000 SUB: 08332-11126-000	E RING	3	Rp12.500
27	08212M14301-000	WASHER	4	Rp4.500
28	DISCONTINUE SUB: 25582-60B51-000	GUIDE, 5TH & REVERSE GEAR SHIFT CAM	1	-
29	DISCONTINUE SUB: 09205-03020-000	SPRING PIN (L:22)	1	-
30	25583M60B50-000	SPRING, CAM GUIDE RETURN	1	Rp6.500
31	25581-51K01-000 SUB: 25581M50F00-000	CAM, 5TH & REVERSE GEAR SHIFT	1	Rp199.500
32	DISCONTINUE SUB: 09205-04015-000	SPRING PIN (4.5X20)	1	-
33	DISCONTINUE SUB: 25321-86G00-000	BOLT, GEAR SHIFT INTERLOCK	1	-
34	08322-0110B-000 SUB: 08322B01103N000	WASHER	1	Rp4.500
35	DISCONTINUE SUB: 25312-59J00-000	SPRING, GEAR SHIFT INTERLOCK	1	-
36	25584-74B00-000	BOLT, INTERLOCK GUIDE	1	-
37	08322M0108A-000 SUB: 08322M01083-000	WASHER	1	Rp5.500
38	DISCONTINUE SUB: 25573-86G41-000	CASE, GEAR SHIFT GUIDE	1	-
39	09103-08419-000 SUB: 09103-08152-000	BOLT, GUIDE CASE (8X25)	1	Rp14.000
40	01550-0825A-000 SUB: 01550-08253-000	BOLT	2	Rp3.500
41	25574-74B00-000	GASKET, CASE	1	Rp42.500
42	09283M14005-000 SUB: 09283-14006-000	SEAL, OIL (14X22X6)	1	Rp9.000
43	25651M68K00-000 SUB: 25651M74B00-000	BOOT	1	Rp10.500
44	25610-63J00-000	LEVER, SHIFT CABLE	1	-
45	09205M03049-000 SUB: 09205M03037-000	SPRING PIN (3X25)	1	Rp6.500
46	09205M06016-000 SUB: 09205-06007-000	SPRING PIN (6X25)	1	Rp4.500
47	25630-63J00-000	BRACKET, SELECT LEVER	1	-
48	01550-0825A-000 SUB: 01550-08253-000	BOLT	1	Rp3.500
49	25624M74B00-000	BOOT	1	Rp6.500
50	25620-63J00-000	LEVER, SELECT CABLE	1	-
51	25558-74B01-000	BUSH, BOSS	2	Rp35.000
52	25559-50F00-000	BUSH, SHAFT	1	Rp53.500
53	09160-08151-000 SUB: 09160-08133-000	WASHER (8.2X26X1.6)	1	Rp16.500
54	DISCONTINUE SUB: 08310B00083N000	NUT	1	-
55	08321M01083-000	LOCK WASHER	1	Rp11.000
56	25625M68K00-000 SUB: 25625M74B00-000	BOOT	1	Rp6.000
57	06111M07004-000	BALL	2	Rp3.000
58	09103-08366-000	BOLT (8X45)	1	Rp25.500
