SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCH CONTROL (MT)FIG.24 MT TRANSMISSION GEAR (MT)FIG.25 MT GEAR SHIFT FORK (MT)FIG.26 MT TRANSMISSION CASE (MT)FIG.27 AUTOMATIC TRANSMISSION (AT)FIG.28 AT OIL PUMP (AT)FIG.29 AT INPUT SHAFT (AT)FIG.30 AT PLANETARY GEAR (AT)FIG.31 AT REDUCTION GEAR (AT)FIG.32 AT FWD/REVERSE CLUTCH (AT)FIG.33 AT 2ND BRAKE (AT)FIG.34 AT 1ST/REVERSE BRAKE (AT)FIG.35 AT OVER DRIVE BRAKE (AT)FIG.36 AT TRANSMISSION CASE (AT)FIG.37 AT VALVE (AT)FIG.38 AT PARKING BRAKE (AT)FIG.39 AT OIL COOLER HOSE (AT)FIG.40 GEAR SHIFT CONTROL (MT)FIG.41 GEAR SHIFT CONTROL (AT)FIG.42 AT SELECT LEVER (AT)FIG.43 DRIVE SHAFT (MT)FIG.44 DRIVE SHAFT (AT)FIG.45 FRONT DIFF GEAR (MT)FIG.46 FRONT DIFF GEAR (AT)

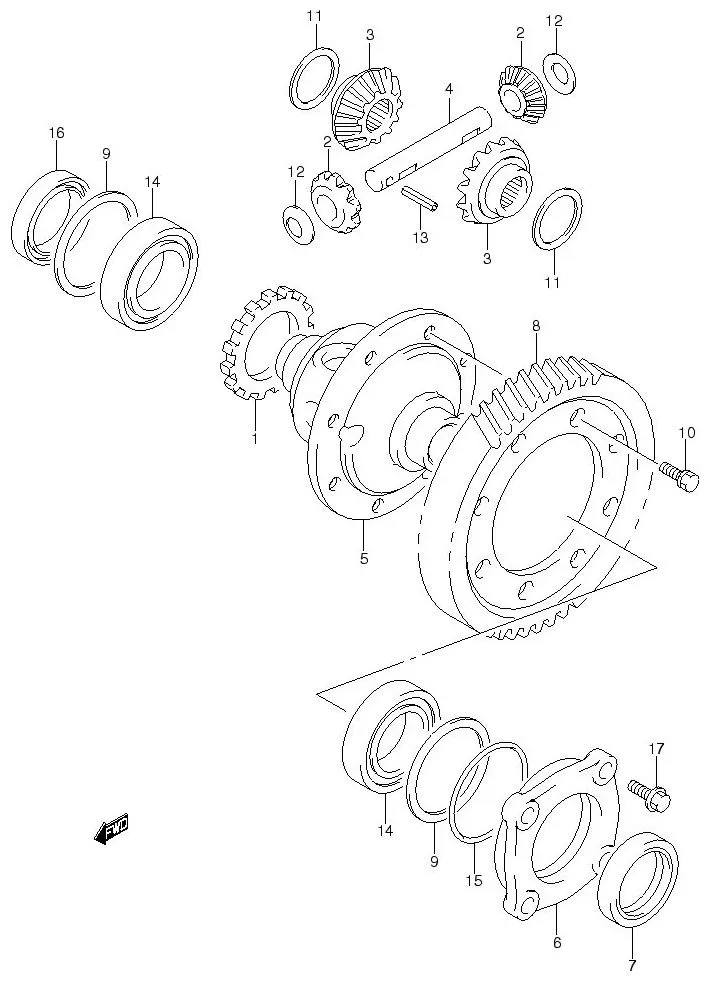

FIG.45 FRONT DIFF GEAR (MT)

FIG.45 FRONT DIFF GEAR (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 26121-54G40-000		 RING, EXCITER 1 -
2 27331-71L00-000
SUB: 27331-70C00-000		 PINION, DIFFERENTIAL 2 Rp511.500
3 27341-71L00-000
SUB: 27341-86G40-000		 GEAR, DIFFERENTIAL SIDE 2 Rp707.000
4 27351-70C01-000 SHAFT, DIFF SIDE PINION 1 Rp241.500
5 DISCONTINUE
SUB: 27411-86G40-000		 CASE, DIFFERENTIAL 1 -
6 27421-70C00-000 RETAINER, DIFF SIDE BEARING 1 Rp468.000
7 27432-70C00-000 SEAL, DIFF SIDE OIL 1 Rp105.500
8 27511-71C20-000 GEAR, FINAL 1 Rp2.695.500
9-9 DISCONTINUE
SUB: 29541-74C70-000		 SHIM, DIFF SIDE BEARING (T:0.81) 0 -
9-11 DISCONTINUE
SUB: 29541-74C90-000		 SHIM, DIFF SIDE BEARING (T:0.87) 0 -
9-10 DISCONTINUE
SUB: 29541-74C80-000		 SHIM, DIFF SIDE BEARING (T:0.84) 0 -
9-8 DISCONTINUE
SUB: 29541-74C60-000		 SHIM, DIFF SIDE BEARING (T:0.78) 0 -
9-7 DISCONTINUE
SUB: 29541-74C50-000		 SHIM, DIFF SIDE BEARING (T:0.75) 0 -
9-5 DISCONTINUE
SUB: 29541-74C30-000		 SHIM, DIFF SIDE BEARING (T:0.69) 0 -
9-4 DISCONTINUE
SUB: 29541-74C20-000		 SHIM, DIFF SIDE BEARING (T:0.66) 0 -
9-3 DISCONTINUE
SUB: 29541-74C10-000		 SHIM, DIFF SIDE BEARING (T:0.63) 0 -
9-2 DISCONTINUE
SUB: 29541-74C00-000		 SHIM, DIFF SIDE BEARING (T:0.60) 0 -
9-1 DISCONTINUE
SUB: 29541-75C00-000		 SHIM, DIFF SIDE BEARING (T:0.30) 0 -
9-6 DISCONTINUE
SUB: 29541-74C40-000		 SHIM, DIFF SIDE BEARING (T:0.72) 0 -
10 09103-10189-000
SUB: 09103M10189-000		 BOLT (10X23) 8 Rp29.000
11-3 09160M35002-000 SHIM (T:1.0) 0 Rp9.500
11-7 09160M35004-000 SHIM (T:1.2) 0 Rp14.500
11-5 09160M35003-000 SHIM (T:1.1) 0 Rp9.000
11-4 09160M35009-000 SHIM (T:1.05) 0 Rp14.000
11-2 09160M35008-000 SHIM (T:0.95) 0 Rp14.500
11-1 09160M35006-000 SHIM (T:0.9) 0 Rp8.500
12 09164M17006-000 WASHER, DIFFERENTIAL PINION 2 Rp8.000
13 09205M05007-000 SPRING PIN (5X36) 1 Rp5.000
14 09265-38001-000 BEARING (38X63X17) 2 Rp631.000
15 09280-58005-000 O RING 1 Rp37.500
16 09283-40028-000 SEAL, OIL RH (40X58X9.6) 1 Rp99.500
17 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
