SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCH CONTROL (MT)FIG.24 MT TRANSMISSION GEAR (MT)FIG.25 MT GEAR SHIFT FORK (MT)FIG.26 MT TRANSMISSION CASE (MT)FIG.27 AUTOMATIC TRANSMISSION (AT)FIG.28 AT OIL PUMP (AT)FIG.29 AT INPUT SHAFT (AT)FIG.30 AT PLANETARY GEAR (AT)FIG.31 AT REDUCTION GEAR (AT)FIG.32 AT FWD/REVERSE CLUTCH (AT)FIG.33 AT 2ND BRAKE (AT)FIG.34 AT 1ST/REVERSE BRAKE (AT)FIG.35 AT OVER DRIVE BRAKE (AT)FIG.36 AT TRANSMISSION CASE (AT)FIG.37 AT VALVE (AT)FIG.38 AT PARKING BRAKE (AT)FIG.39 AT OIL COOLER HOSE (AT)FIG.40 GEAR SHIFT CONTROL (MT)FIG.41 GEAR SHIFT CONTROL (AT)FIG.42 AT SELECT LEVER (AT)FIG.43 DRIVE SHAFT (MT)FIG.44 DRIVE SHAFT (AT)FIG.45 FRONT DIFF GEAR (MT)FIG.46 FRONT DIFF GEAR (AT)

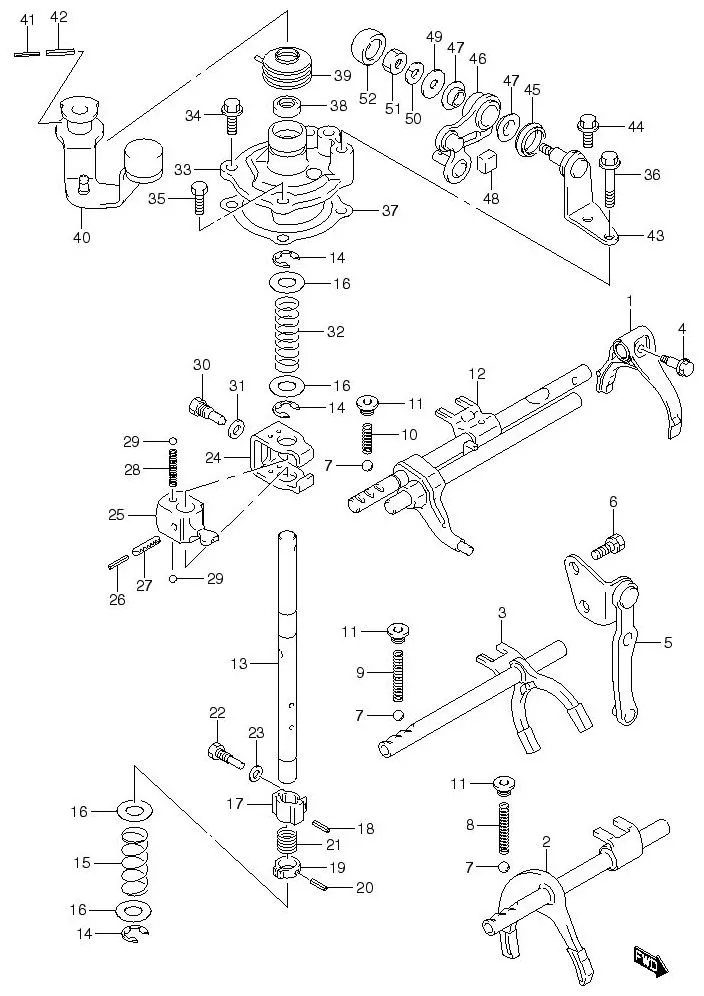

FIG.25 MT GEAR SHIFT FORK (MT)

FIG.25 MT GEAR SHIFT FORK (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 25231-54G01-000 FORK, 5TH GEAR SHIFT 1 Rp647.500
2 DISCONTINUE
SUB: 25401-55G00-000		 SHAFT, LOW SPEED GEAR SHF 1 -
3 DISCONTINUE
SUB: 25402-55G00-000		 SHAFT, HIGH SPEED GEAR SHF 1 -
4 25291-70C00-000 BOLT, LOW & HIGH SPEED FORK 1 Rp19.500
5 25460-70C00-000 LEVER, REVERSE GEAR SHIFT 1 Rp200.000
6 01570-0820B-000
SUB: 01570-0820A-000		 BOLT 2 Rp31.000
7 06111-12004-000 BALL 3 Rp14.000
8 25415-70C01-000 SPRING, LOW SPEED LOCATING 1 Rp39.000
9 25425-70C02-000 SPRING, HIGH SPEED LOCATING 1 Rp37.000
10 25435-70C02-000 SPRING, 5TH SPEED LOCATING 1 Rp39.000
11 DISCONTINUE
SUB: 25416-70C00-000		 PLUG 3 -
12 25403-51KA0-000
SUB: 25403-55G00-000		 SHAFT, 5TH & REV GR SHF 1 Rp1.592.500
13 DISCONTINUE
SUB: 25571-55G00-000		 SHAFT, GEAR SHIFT & SELECT 1 -
14 08332-1112A-000 E RING 3 Rp14.000
15 DISCONTINUE
SUB: 25576-59J00-000		 SPRING, LOW SPEED SELECT 1 -
16 08212M14301-000 WASHER 4 Rp4.500
17 25581-51K01-000
SUB: 25581M50F00-000		 CAM, 5TH & REV 1 Rp199.500
18 09205M04009-000 SPRING PIN (4.5X20) 1 Rp5.500
19 DISCONTINUE
SUB: 25582-60B51-000		 GUIDE, 5TH & REV GEAR SHF 1 -
20 09205M03035-000 SPRING PIN (3X22) 1 Rp6.500
21 25583M60B50-000 SPRING, CAM GUIDE RETURN 1 Rp6.500
22 DISCONTINUE
SUB: 25584-70C00-000		 BOLT, 5TH TO REV GUIDE 1 -
23 08322M0108A-000 WASHER 1 Rp5.500
24 DISCONTINUE
SUB: 25311-59J00-000		 PLATE, GEAR SHIFT INTERLOCK 1 -
25 DISCONTINUE
SUB: 25541-86G40-000		 LEVER, GEAR SHIFT & SELECT 1 -
26 09205M03016-000 SPRING PIN (3.5X28) 1 Rp4.500
27 09205M06022-000
SUB: 09205M06004-000		 SPRING PIN (6X28) 1 Rp6.500
28 DISCONTINUE
SUB: 25312-59J00-000		 SPRING, GEAR SHIFT INTERLOCK 1 -
29 06111M07004-000 BALL 2 Rp3.000
30 DISCONTINUE
SUB: 25321-86G00-000		 BOLT, GEAR SHF INTERLOCK 1 -
31 08322M0110A-000 WASHER 1 Rp4.500
32 DISCONTINUE
SUB: 25576-83E00-000		 SPRING, REV SELECT 1 -
33 DISCONTINUE
SUB: 25573-86G41-000		 CASE, GEAR SHF GUIDE 1 -
34 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500
35 09103-08419-000 BOLT (8X25) 1 Rp14.000
36 09103-08366-000 BOLT (8X45) 1 Rp25.500
37 25574-74B00-000 GASKET, GEAR SHF GUIDE CASE 1 Rp42.500
38 09283M14005-000
SUB: 09283-14006-000		 SEAL, OIL (14X22X6) 1 Rp9.000
39 25651M68K00-000
SUB: 25651M74B00-000		 BOOT, SHIFT & SELECT SFT OIL 1 Rp10.500
40 DISCONTINUE
SUB: 25610-63J20-000		 LEVER, SHIFT CABLE 1 -
41 09205M03049-000
SUB: 09205M03037-000		 SPRING PIN (3X25) 1 Rp6.500
42 09205M06016-000
SUB: 09205-06007-000		 SPRING PIN (6X25) 1 Rp4.500
43 DISCONTINUE
SUB: 25630-70C01-000		 BRACKET, SELECT LEVER 1 -
44 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
45 25624M74B00-000 BOOT, SELECT LEVER INSIDE 1 Rp6.500
46 DISCONTINUE
SUB: 25620-63J20-000		 LEVER, SELECT CABLE 1 -
47 25558-74B01-000 BUSH, SELECT LEVER BOSS 2 Rp35.000
48 25559-50F00-000 BUSH, SELECT LEVER SHAFT 1 Rp53.500
49 09160-08151-000
SUB: 09160M08151-000		 WASHER (8.5X26X1.6) 1 Rp16.500
50 08321M01083-000
SUB: 08321M0108A-000		 LOCK WASHER 1 Rp11.000
51 08310-0008A-000
SUB: 08310M0008A-000		 NUT 1 Rp12.500
52 25625M68K00-000
SUB: 25625M74B00-000		 BOOT, SELECT LEVER OUTSIDE 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
