SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCH CONTROL (MT)FIG.24 MT TRANSMISSION GEAR (MT)FIG.25 MT GEAR SHIFT FORK (MT)FIG.26 MT TRANSMISSION CASE (MT)FIG.27 AUTOMATIC TRANSMISSION (AT)FIG.28 AT OIL PUMP (AT)FIG.29 AT INPUT SHAFT (AT)FIG.30 AT PLANETARY GEAR (AT)FIG.31 AT REDUCTION GEAR (AT)FIG.32 AT FWD/REVERSE CLUTCH (AT)FIG.33 AT 2ND BRAKE (AT)FIG.34 AT 1ST/REVERSE BRAKE (AT)FIG.35 AT OVER DRIVE BRAKE (AT)FIG.36 AT TRANSMISSION CASE (AT)FIG.37 AT VALVE (AT)FIG.38 AT PARKING BRAKE (AT)FIG.39 AT OIL COOLER HOSE (AT)FIG.40 GEAR SHIFT CONTROL (MT)FIG.41 GEAR SHIFT CONTROL (AT)FIG.42 AT SELECT LEVER (AT)FIG.43 DRIVE SHAFT (MT)FIG.44 DRIVE SHAFT (AT)FIG.45 FRONT DIFF GEAR (MT)FIG.46 FRONT DIFF GEAR (AT)

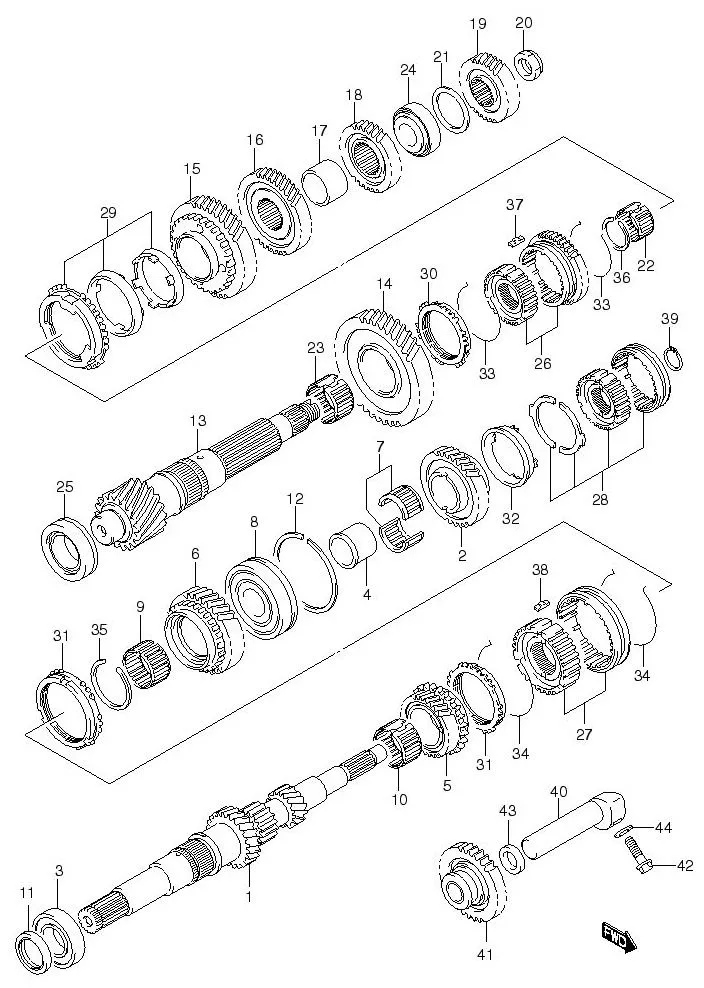

FIG.24 MT TRANSMISSION GEAR (MT)

FIG.24 MT TRANSMISSION GEAR (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24111-86G42-000
SUB: 24111-86G40-000		 SHAFT, TRANSAXLE INPUT 1 Rp2.869.000
2 DISCONTINUE
SUB: 24114-70C01-000		 GEAR, INPUT SHAFT 5TH 1 -
3 24117-54G00-000
SUB: 24117B54G00N000		 BEARING, INPUT SHAFT RIGHT 1 Rp216.500
4 24119-70C00-000 SPACER, INPUT SHAFT 5TH GEAR 1 Rp255.000
5 DISCONTINUE
SUB: 24230-68J00-000		 GEAR, INPUT SHAFT 3RD 1 -
6 24240-71C00-000 GEAR, INPUT SHAFT 4TH 1 Rp1.370.500
7 24200-70800-000 BEARING SET 1 Rp261.000
8 24165-77M00-000
SUB: 09262B25106N000		 BEARING (25X72X19) 1 Rp220.000
9 09263-30030-000 BEARING (30X35X24.8) 1 Rp135.500
10 09263-35027-000 BEARING (35X40X22.8) 1 Rp146.000
11 09283-25088-000 SEAL, OIL (25X38X6) 1 Rp60.000
12 09380-72002-000 RING, SNAP 1 Rp42.500
13 24131-71C20-000 SHAFT, TRANSMISSION COUNTER 1 Rp3.359.000
14 DISCONTINUE
SUB: 24311-71C00-000		 GEAR, COUNTERSHAFT 1ST 1 -
15 24321-55G01-000
SUB: 24321-55G00-000		 GEAR, COUNTERSHAFT 2ND 1 Rp1.279.500
16 DISCONTINUE
SUB: 24331-71C00-000		 GEAR, COUNTERSHAFT 3RD 1 -
17 DISCONTINUE
SUB: 24336-70C00-000		 SPACER, 3RD & 4TH GEAR 1 -
18 24341-71C00-000 GEAR, COUNTERSHAFT 4TH 1 Rp1.001.000
19 DISCONTINUE
SUB: 24351-70C00-000		 GEAR, COUNTERSHAFT 5TH 1 -
20 09159-20009-000 NUT, CONTERSHAFT 1 Rp74.000
21-13 09181-41014-000 SHIM, BEARING SET (T:1.15) 1 Rp44.000
21-12 09181-41013-000 SHIM, BEARING SET (T:1.10) 1 Rp44.000
21-11 09181-41012-000 SHIM, BEARING SET (T:1.05) 1 Rp44.000
21-10 09181-41011-000 SHIM, BEARING SET (T:1.00) 1 Rp47.500
21-9 09181-41010-000 SHIM, BEARING SET (T:0.95) 1 Rp44.000
21-8 09181-41009-000 SHIM, BEARING SET (T:0.90) 1 Rp44.000
21-6 09181-41007-000 SHIM, BEARING SET (T:0.80) 1 Rp47.500
21-5 09181-41006-000 SHIM, BEARING SET (T:0.75) 1 Rp44.000
21-4 09181-41005-000 SHIM, BEARING SET (T:0.70) 1 Rp44.000
21-3 09181-41004-000 SHIM, BEARING SET (T:0.65) 1 Rp44.000
21-2 DISCONTINUE
SUB: 09181-41003-000		 SHIM, BEARING SET (T:0.60) 1 -
21-1 DISCONTINUE
SUB: 09181-41002-000		 SHIM, BEARING SET (T:0.55) 1 -
21-7 09181-41008-000 SHIM, BEARING SET (T:0.85) 1 Rp44.000
22 09263-35027-000 BEARING (35X40X22.8) 1 Rp146.000
23 09263-37005-000 BEARING (37X42X23.8) 1 Rp189.500
24 09265-25029-000 TAPER ROLLER BEARING 1 Rp601.000
25 09265-28005-000 BEARING (28X52X16) 1 Rp667.000
26 24400-55G00-000 HUB ASSY, LOW SPEED SYNC 1 Rp1.870.500
27 24410-77MA0-000
SUB: 24410-59J00-000		 HUB ASSY, HIGH SPEED SYNC 1 Rp1.032.000
28 24420-55G01-000
SUB: 24420-55G00-000		 HUB ASSY, 5TH SPEED SYNC 1 Rp1.479.000
29 24430-55G01-000
SUB: 24430-55G00-000		 RING ASSY, 2ND GEAR SYNC 1 Rp1.048.500
30 24431-70C00-000 RING, 1ST GEAR SYNC 1 Rp315.500
31 24432-60A00-000 RING, HIGH SPEED SYNC 2 Rp562.000
32 24435-84A20-000
SUB: 24435-84A00-000		 RING, 5TH SPEED SYNC 1 Rp280.500
33 24441-70C00-000 SPRING, LOW SPEED SYNC 2 Rp23.000
34 24442-70C00-000 SPRING, HIGH SPEED SYNC 2 Rp23.000
35 24451-60B00-000 CIRCLIP, HIGH SPEED SYNC HUB 1 Rp30.500
36 24451-70C00-000 CIRCLIP, LOW SPEED SYNC HUB 1 Rp31.000
37 24471-70C00-000 KEY, LOW SPEED SYNCHRONIZER 3 Rp30.000
38 24472-60B00-000 KEY, HIGH SPEED SYNCHRONIZER 3 Rp25.000
39 08331-3124A-000
SUB: 08331-31246-000		 CIRCLIP 1 Rp15.000
40 DISCONTINUE
SUB: 24551-70C02-000		 SHAFT, TRANSAXLE REVERSE GEAR 1 -
41 24560-70C60-000
SUB: 24560-70C21-000		 GEAR, REVERSE IDLER 1 Rp924.000
42 24565-60B00-000 BOLT, REVERSE SHAFT 1 Rp21.500
43 09161-18004-000 WASHER (18X27X5.5) 1 Rp34.500
44 09168M08030-000 WASHER (8.2X14X1) 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
