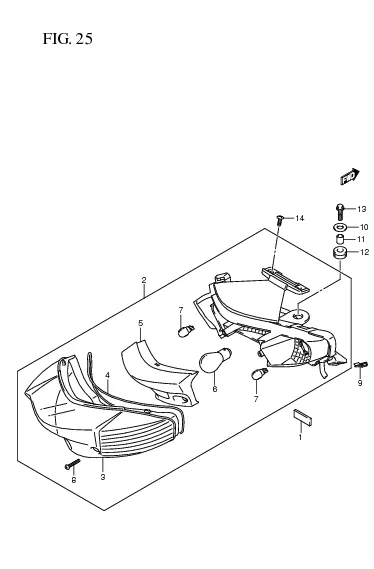

FIG. 25 REAR COMBINATION LAMP

FIG. 25 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 33652-32G20-000
SUB: 33652B32G20N000		 CUSHION, REAR COMBINATION LAMP 2 Rp3.000
2 35710-09J01-000
SUB: 35710B09J00N000		 LAMP ASSY, REAR COMBINATION 1 Rp149.500
3 35712-09J00-000
SUB: 35712B09J00N000		 .LENS 1 Rp25.000
4 35713-09J00-000
SUB: 35713B09J00N000		 .GASKET LENS 1 Rp6.500
5 35719-09J00-000
SUB: 35719B09J00N000		 .INNER LENS 1 Rp13.500
6 09471-12127-000
SUB: 09471B12119N000		 .BULB (12V18/5W) 1 Rp12.500
7 09471-12114AS01
SUB: 09471B12203N000		 .BULB (12V10W) 2 Rp14.000
8 03211-0420A-000
SUB: 03211B0420AN000		 .SCREW 2 Rp3.500
9 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
10 09160-06028-000
SUB: 09160B06028N000		 WASHER (6.5X18X1) 2 Rp3.500
11 09180-06350-000
SUB: 09180B06350N000		 SPACER (6.5X9X9.5) 2 Rp5.000
12 09320-09016-000
SUB: 09320-09016L000		 CUSHION 2 Rp4.000
13 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
14 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
