Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18 STARTING MOTORFIG. 19 MAGNETOFIG. 20 BATTERYFIG. 21 ELECTRICALFIG. 22 SPEEDOMETERFIG. 23 HEAD LAMPFIG. 24 FRONT TURN SIGNAL LAMPFIG. 25 REAR COMBINATION LAMPFIG. 26 WIRING HARNESS

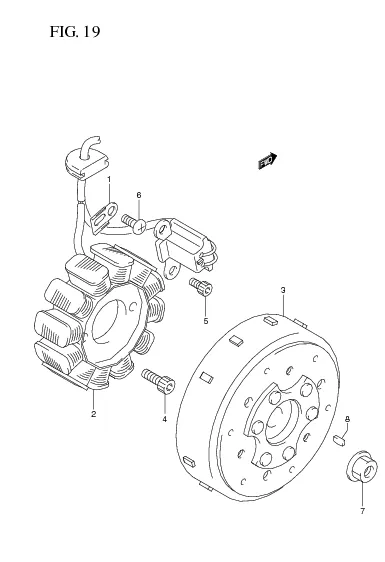

FIG. 19 MAGNETO

FIG. 19 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 31497B45000N000		 CLAMP, MAGNETO LEAD 1 -
2 32101-09J10-000
SUB: 32101B09J10N000		 STATOR ASSY 1 Rp191.000
3 32102-09J10-000
SUB: 32102B09J10N000		 ROTOR ASSY 1 Rp196.500
4 07130-0625A-000
SUB: 07130B0625AN000		 BOLT 2 Rp3.500
5 07130-0512A-000
SUB: 07130B0512AN000		 BOLT 2 Rp4.000
6 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 1 Rp2.500
7 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
8 08341-31039-000
SUB: 08341B31039N000		 KEY 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
