Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18 STARTING MOTORFIG. 19 MAGNETOFIG. 20 BATTERYFIG. 21 ELECTRICALFIG. 22 SPEEDOMETERFIG. 23 HEAD LAMPFIG. 24 FRONT TURN SIGNAL LAMPFIG. 25 REAR COMBINATION LAMPFIG. 26 WIRING HARNESS

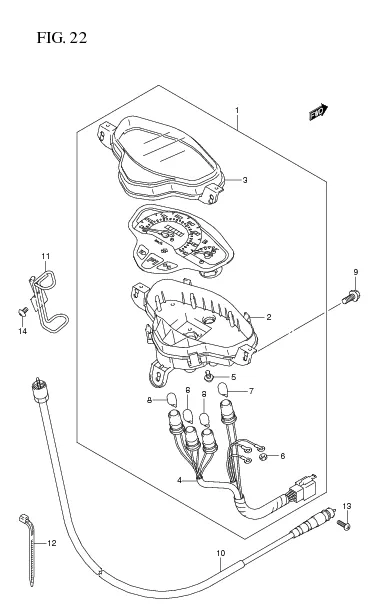

FIG. 22 SPEEDOMETER

FIG. 22 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-09J70-000
SUB: 34100B09J30N000		 SPEEDOMETER ASSY 1 Rp271.500
2 34111-09J10-000
SUB: 34111B09J10N000		 .CASE 1 Rp25.000
3 34150-09J00-000
SUB: 34150B09J00N000		 .LENS 1 Rp25.000
4 34173-09J10-000
SUB: 34173B09J10N000		 .CORD ASSY 1 Rp32.500
5 34186-09J00-000
SUB: 34186B09J00N000		 .SCREW 2 Rp3.000
6 34382-09J00-000
SUB: 34382B09J00N000		 .NUT 3 Rp3.000
7 09471-12028-000
SUB: 09471-12028L000		 .BULB (12V,3.4W) 1 Rp8.000
8 09471-12077-000
SUB: 09471B12077N000		 .BULB (12V,1.7W) 2 Rp6.000
9 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 3 Rp3.500
10 34910-45H20-000
SUB: 34910B45H20N000		 CABLE ASSY, SPEEDOMETER 1 Rp44.000
11 34930-09J00-000
SUB: 34930B09J00N000		 GUIDE, SPEEDOMETER CABLE 1 Rp7.500
12 36990-25G00-000
SUB: 36990B25G00N000		 CLAMP 1 Rp13.000
13 02112-0516A-000
SUB: 02112B0516AN000		 SCREW 1 Rp5.500
14 02142-0612A-000
SUB: 02142B0612AN000		 SCREW 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
