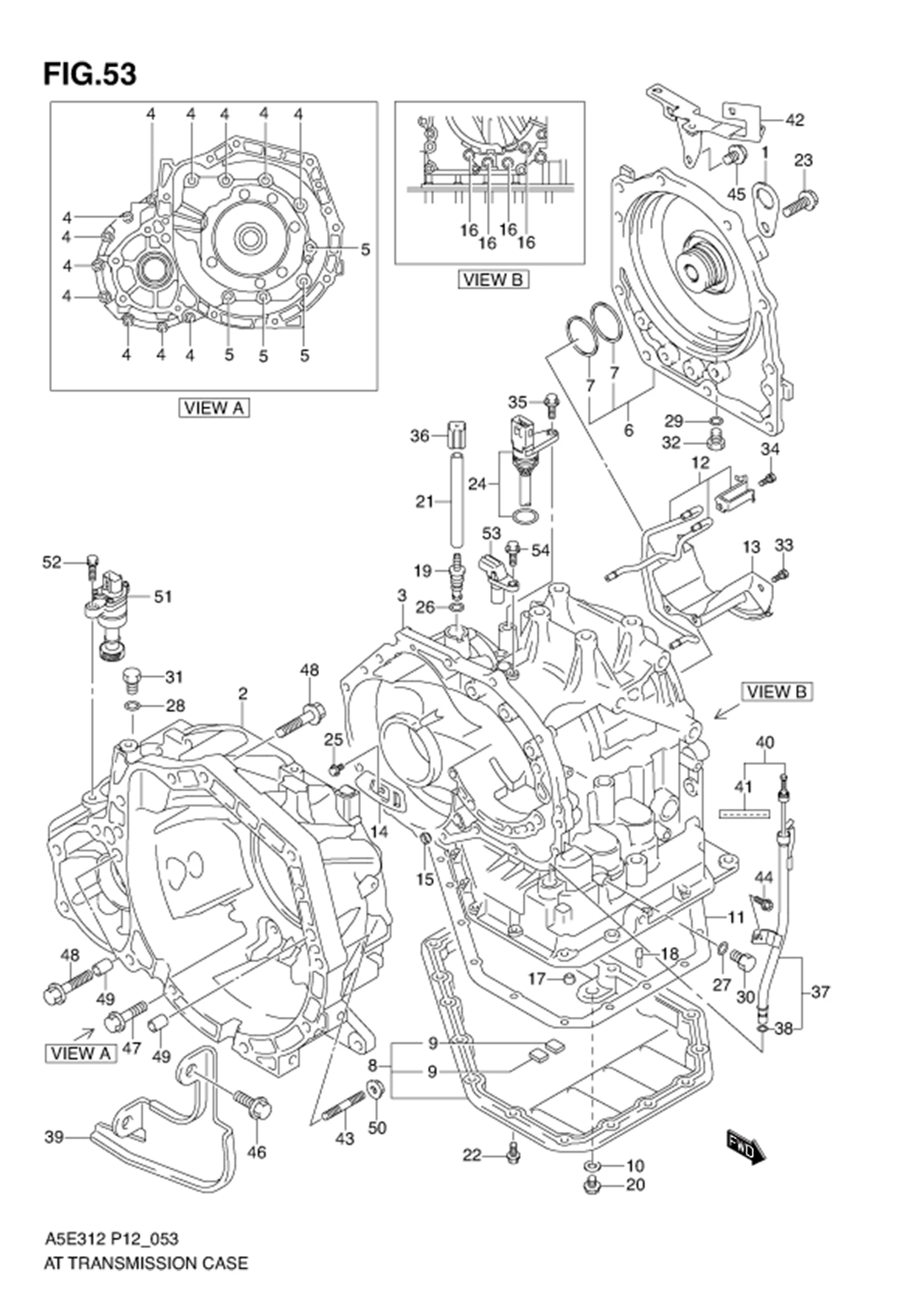

FIG.53 AT TRANSMISSION CASE (AT)

No	No. Part	Description	Qty	Price Per Pcs
1	11851M72B21-000 SUB: 11851-72B21-000	HOOK,TRANSMISSION	1	Rp6.500
2	24710-51K10-000	HOUSING,TORQUE CONVERTER	1	Rp9.817.500
3	24720-79C10-000	CASE,TRANSMISSION	1	Rp17.925.500
4	24725-79C10-000	BOLT,HOUSING NO.1	12	Rp26.500
5	24729-79C10-000	BOLT,HOUSING NO.2	4	Rp32.000
6	24730-55G31-000	COVER,REAR	1	Rp3.528.000
7	24732-70H10-000	•RING,REAR COVER SEAL	2	Rp69.500
8	24761-55GT0-000	PAN SET,OIL	1	Rp976.500
9	DISCONTINUE SUB: 24745-59J00-000	•MAGNET,OIL CLEANER	2	-
10	24781-57B00-000	GASKET,DRAIN PLUG	1	Rp33.500
11	24784-79C10-000	GASKET,OIL PAN	1	Rp130.000
12	24811-79JT0-000	TUBE SET,DIFF SIDE BEARING	1	Rp257.000
13	DISCONTINUE SUB: 24813-79C10-000	PLATE,OIL RESERVOIR RH	1	-
14	DISCONTINUE SUB: 24814-79C10-000	PLATE,OIL RESERVOIR LH	1	-
15	24815-60G10-000	GASKET,CASE OIL LINE NO.1	1	Rp74.000
16	24816-60G10-000	GASKET,CASE OIL LINE NO.2	4	Rp72.000
17	24818-68J10-000	GASKET,CASE OIL LINE NO.4	1	Rp71.500
18	24819-79C10-000	GASKET,BRAKE DRUM	1	Rp95.000
19	24821-79C10-000	UNION,BREATHER	1	Rp45.000
20	24823-79C10-000	PLUG,DRAIN	1	Rp31.000
21	24856-59J10-000	HOSE,BREATHER	1	Rp105.500
22	24882-79C10-000	BOLT,OIL PAN	18	Rp22.000
23	24884-79C10-000	BOLT,REAR COVER	9	Rp36.000
24	24892-79C10-000	HARNESS,SOLENOID WIRE	1	Rp1.127.000
25	26449-65G10-000	BOLT,OIL DAM PLATE	1	Rp27.500
26	27992-79C10-000	O RING,BREATHER PLUG	1	Rp24.000
27	29738-57B00-000	O RING,CASE PLUG	1	Rp47.500
28	29738-57B00-000	O RING,CASE PLUG	2	Rp47.500
29	29738-57B00-000	O RING,CASE PLUG	4	Rp47.500
30	DISCONTINUE SUB: 29849-57B00-000	PLUG,CASE	1	-
31	DISCONTINUE SUB: 29849-57B00-000	PLUG,CASE	2	-
32	DISCONTINUE SUB: 29849-57B00-000	PLUG,CASE	4	-
33	29970-57B00-000	BOLT	3	Rp83.000
34	29970-57B00-000	BOLT	1	Rp83.000
35	29989-57B00-000	BOLT,SOL WIRE HARNESS	1	Rp69.500
36	27991-65D01-000	PLUG,BREATHER HOSE	1	Rp22.500
37	24770-51K10-000	TUBE ASSY,T/M OIL FILLER	1	Rp393.500
38	09280-09008-000	•O RING (8.8X2.1)	1	Rp20.000
39	24788-68K10-000	GUARD,T/M OIL PAN	1	Rp192.000
40	24830-51K10-000	GAUGE ASSY,T/M OIL LEVEL	1	Rp271.000
41	DISCONTINUE SUB: 24839-63J10-000	•EMBLEM,ATF	1	-
42	DISCONTINUE SUB: 26598-73K10-000	BRACKET,HARNESS	1	-
43	01421-1045A-000	STUD BOLT	1	Rp29.500
44	DISCONTINUE SUB: 01550B0612AN000	BOLT	1	-
45	01550-0812A-000 SUB: 01550B0812AN000	BOLT	2	Rp3.500
46	01550-1025A-000 SUB: 01550B1025AN000	BOLT	2	Rp3.500
47	01550-1040A-000 SUB: 01550B1040AN000	BOLT	1	Rp7.000
48	01550-1050A-000	BOLT	5	Rp6.000
49	04211M13189-000 SUB: 04211-13149-000	PIN	2	Rp9.000
50	08316-1010A-000 SUB: 08316B1010AN000	NUT	1	Rp3.500
51	26130-70H11-000	GEAR,SPEEDOMETER DRIVEN	1	Rp1.145.000
52	DISCONTINUE SUB: 26135-79C10-000	BOLT,SPEED SENSOR	1	-
53	26143-79C10-000	SENSOR,SPEED INPUT	1	Rp1.456.000
54	29989-57B00-000	BOLT,INPUT SPEED SENSOR	1	Rp69.500
