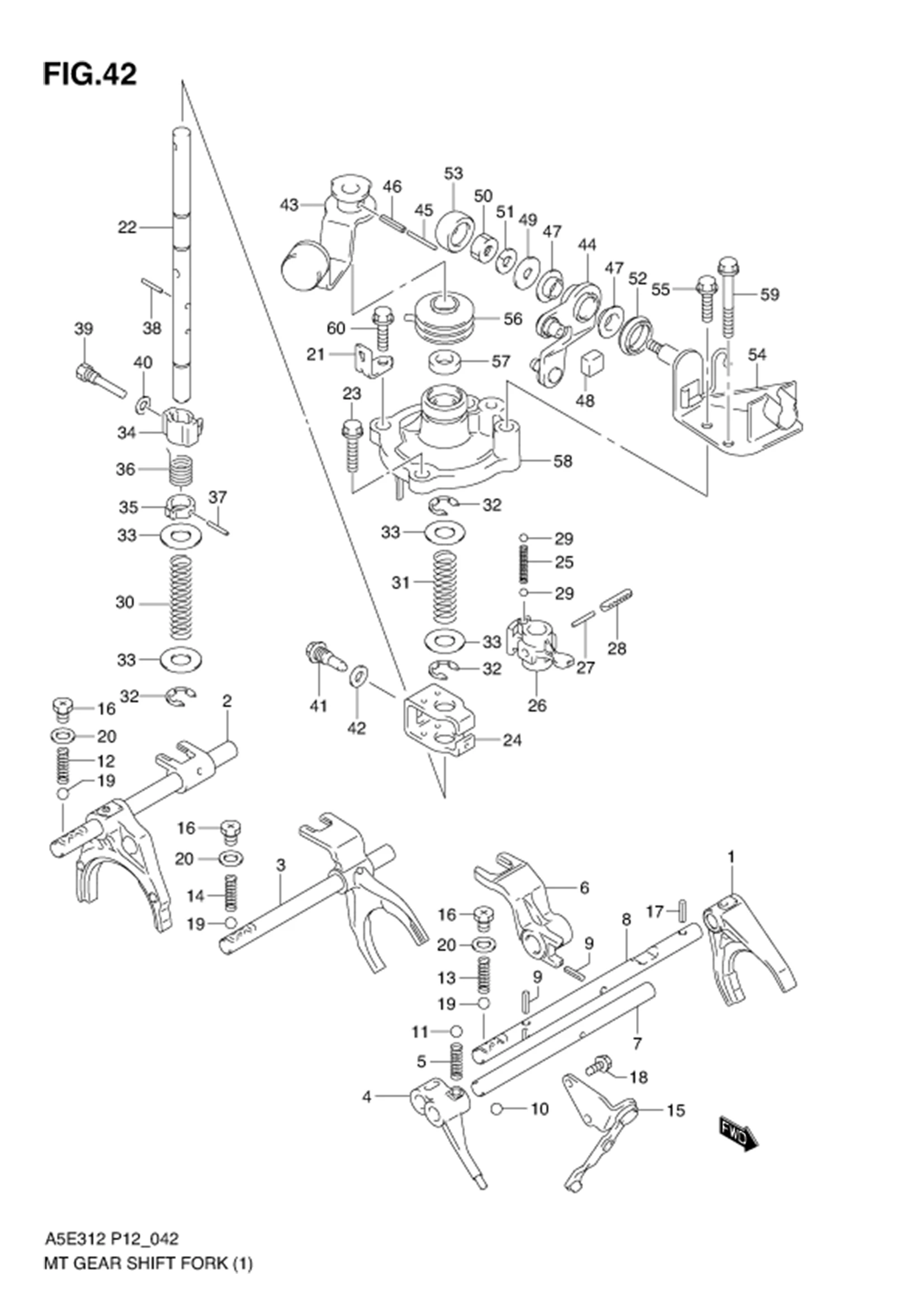

FIG.42 MT GEAR SHIFT FORK (TYPE 1 :MT)

FIG.42 MT GEAR SHIFT FORK (TYPE 1 :MT)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 25231M75J00-000		 FORK,5TH GEAR SHIFT 1 -
2 25401M68K00-000 SHAFT,LOW SPEED GEAR SHIFT 1 Rp320.500
3 25402M68K00-000
SUB: 25402M68K02-000		 SHAFT,HIGH SPEED GEAR SHIFT 1 Rp353.000
4 DISCONTINUE
SUB: 25251M75J00-000		 ARM,REVERSE GEAR SHIFT 1 -
5 25255M60B11-000
SUB: 25255M60B01-000		 SPRING,REV GEAR SHIFT ARM 1 Rp6.500
6 25261M68K03-000 YOKE,5TH & REV GEAR SHIFT 1 Rp156.500
7 25431M75J01-000 SHAFT,5TH & REV GR SHF GUIDE 1 Rp69.000
8 DISCONTINUE
SUB: 25451M68K00-000		 SHAFT,5TH & REV GEAR SHIFT 1 -
9 09205M04009-000 PIN (4.5X20) 2 Rp5.500
10 06111M10004-000 BALL 1 Rp5.500
11 06111M10004-000 BALL 1 Rp5.500
12 25415-60B02-000 SPRING,LOW SPEED LOCATING 1 Rp27.000
13 25415-60B02-000 SPRING,5TH & REV LOCATING 1 Rp27.000
14 25425-60B10-000 SPRING,HIGH SPEED LOCATING 1 Rp30.000
15 DISCONTINUE
SUB: 25460M75J00-000		 LEVER,REVERSE GEAR SHIFT 1 -
16 09128M10001-000
SUB: 09128-10002-000		 BOLT (10X9) 3 Rp5.500
17 09205M04009-000 PIN (4.5X20) 1 Rp5.500
18 01570-0820B-000
SUB: 01570-0820A-000		 BOLT 2 Rp31.000
19 06111M10004-000 BALL 3 Rp5.500
20 08322-0110B-000
SUB: 08322-0110A-000		 WASHER 3 Rp4.500
21 24726-67KC1-000
SUB: 24726M67KC1-000		 BRACKET,BREATHER HOSE 1 Rp11.000
22 25571M75J00-000 SHAFT,GEAR SHIFT & SELECT 1 Rp64.000
23 09103-08419-000 BOLT (8X25) 1 Rp14.000
24 25311M68K00-000 PLATE,GEAR SHIFT INTERLOCK 1 Rp81.000
25 25312M68K00-000 SPRING,GEAR SHIFT INTERLOCK 1 Rp7.500
26 25541M68K40-000 LEVER,GEAR SHIFT & SELECT 1 Rp144.000
27 09205M03016-000 PIN (3.5X28) 1 Rp4.500
28 09205-06004-000 PIN (6X28) 1 Rp14.500
29 06111M07004-000 BALL 2 Rp3.000
30 25576M75J01-000 SPRING,1ST & 2ND SELECT 1 Rp5.000
31 25577M75J00-000 SPRING,5TH & REVERSE SELECT 1 Rp6.500
32 08332-1112A-000 E RING 3 Rp14.000
33 08212M14301-000 WASHER 4 Rp4.500
34 25581M86JA1-000 CAM,5TH & REVERSE GEAR SHIFT 1 Rp40.000
35 25582M75J00-000 GUIDE,5TH & REV GEAR SHIFT CAM 1 Rp12.000
36 25583M60B50-000 SPRING,CAM GUIDE RETURN 1 Rp6.500
37 DISCONTINUE
SUB: 09205-03035-000		 PIN (3X22) 1 -
38 09205M04009-000 PIN (4.5X20) 1 Rp5.500
39 25584-51K00-000 BOLT,5TH TO REV INTLK GUIDE 1 Rp13.500
40 08322M0108A-000
SUB: 08322-0108A-000		 WASHER 1 Rp5.500
41 DISCONTINUE
SUB: 25321-86G00-000		 BOLT,GEAR SHIFT INTERLOCK 1 -
42 08322-0110B-000
SUB: 08322-0110A-000		 WASHER 1 Rp4.500
43 25610M75J00-000
SUB: 25610M75J20-000		 LEVER,SHIFT CABLE 1 Rp165.000
44 25620M68K00-000 LEVER,SELECT CABLE 1 Rp93.000
45 09205-03037-000 PIN (3X25) 1 Rp11.500
46 09205M06016-000 PIN (6X25) 1 Rp4.500
47 25558M75J00-000 BUSH,SELECT LEVER BOSS 2 Rp6.500
48 25559M75J01-000 BUSH,SELECT LEVER SHAFT 1 Rp12.500
49 09160-08151-000
SUB: 09160M08151-000		 WASHER (8.5X26X1.6) 1 Rp16.500
50 08310-0008A-000 NUT 1 Rp12.500
51 08321M01083-000
SUB: 08321-0108A-000		 WASHER 1 Rp11.000
52 25624-74B00-000 BOOT,SELECT LEVER INSIDE 1 Rp23.500
53 25625-74B00-000 BOOT,SELECT LEVER OUTSIDE 1 Rp23.000
54 25630M83K00-000 BRACKET,SELECT & CLUTCH 1 Rp110.500
55 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
56 25651-74B00-000 BOOT,SHIFT & SELECT SFT OIL 1 Rp50.500
57 09283M14005-000 OIL SEAL (14X22X6) 1 Rp9.000
58 25573M75J01-000 CASE,GEAR SHIFT GUIDE 1 Rp127.000
59 09103-08366-000 BOLT (8X45) 1 Rp25.500
60 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
