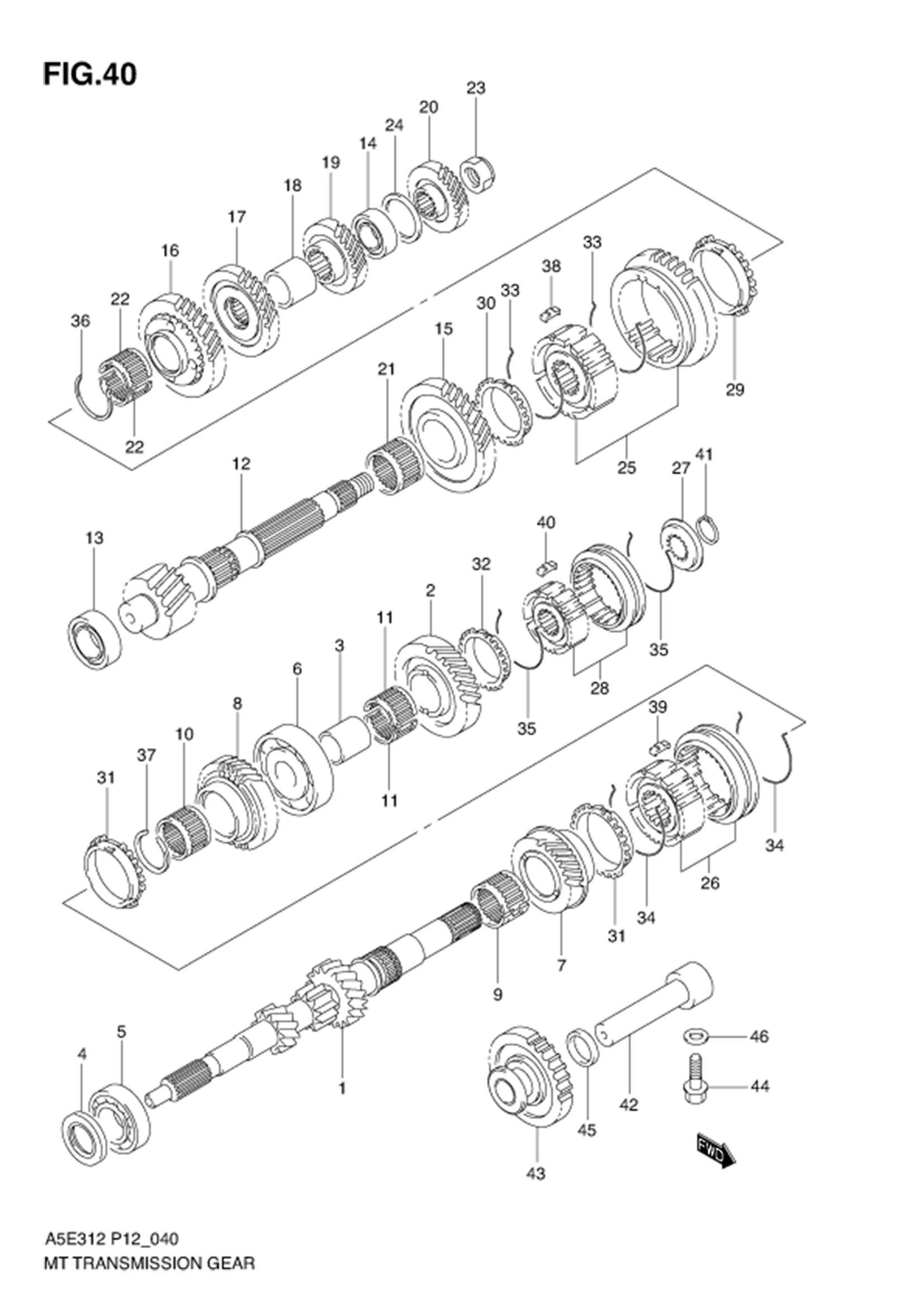

FIG.40 MT TRANSMISSION GEAR (MT)

No	No. Part	Description	Qty	Price Per Pcs
1	24111-67L02-000 SUB: 24111M59K01-000	SHAFT,TRANSMISSION INPUT	1	Rp2.878.500
2	24114M59K20-000	GEAR,INPUT SHAFT 5TH	1	Rp546.500
3	24119M60B51-000 SUB: 24119M68K00-000	SPACER,INPUT SHAFT 5TH GEAR	1	Rp96.000
4	24151M68K00-000	SEAL,INPUT SHAFT OIL	1	Rp18.000
5	24155-67LA0-000 SUB: 24155M68K20-000	BEARING,INPUT SHAFT RH	1	Rp103.500
6	24165-67LA0-000 SUB: 24165M68K20-000	BEARING,INPUT SHAFT LH	1	Rp349.000
7	24230M68K02-000	GEAR,INPUT SHAFT 3RD	1	Rp1.095.500
8	24240M79GA0-000	GEAR,INPUT SHAFT 4TH	1	Rp1.245.000
9	24283M68K20-000 SUB: 24283M68K00-000	BEARING,3RD GEAR NEEDLE	1	Rp56.500
10	24284M60B30-000 SUB: 24284M75J00-000	BEARING,4TH GEAR NEEDLE	1	Rp33.500
11	24285M68K00-000	BEARING,5TH GEAR NEEDLE	2	Rp35.500
12	24131-51K20-000	SHAFT,TRANSAXLE COUNTER	1	Rp2.547.000
13	24175M68K40-000 SUB: 24175M68K00-000	BEARING ASSY COUNTERSHAFT RH	1	Rp283.500
14	24185M68K00-000	BEARING ASSY COUNTERSHAFT LH	1	Rp283.500
15	24311M59K00-000	GEAR,COUNTERSHAFT 1ST	1	Rp595.000
16	24321-83E03-000 SUB: 24321M68K00-000	GEAR,COUNTERSHAFT 2ND	1	Rp1.185.500
17	24331M68K00-000	GEAR,COUNTERSHAFT 3RD	1	Rp812.000
18	DISCONTINUE SUB: 24336M75J00-000	SPACER,3RD & 4TH GEAR	1	-
19	24341M59K00-000	GEAR,COUNTERSHAFT 4TH	1	Rp595.000
20	24351M59K20-000	GEAR,COUNTERSHAFT 5TH	1	Rp595.000
21	24381M68K20-000 SUB: 24381M68K00-000	BEARING,1ST GEAR NEEDLE	1	Rp57.000
22	24382M68K20-000 SUB: 24382M68K00-000	BEARING,2ND GEAR NEEDLE	2	Rp44.500
23	09159-16014-000 SUB: 09159M16014-000	NUT	1	Rp42.000
24-14	09160M33006-000	SHIM (T:1.15)	0	Rp11.000
24-13	09160M33005-000	SHIM (T:1.10)	0	Rp10.500
24-12	09160M33004-000	SHIM (T:1.05)	0	Rp11.000
24-11	09160M33003-000	SHIM (T:1.00)	0	Rp11.000
24-10	09181M33009-000	SHIM (T:0.95)	0	Rp8.500
24-9	09181M33008-000	SHIM (T:0.90)	0	Rp8.500
24-7	09181M33006-000	SHIM (T:0.80)	0	Rp8.500
24-6	09181M33005-000	SHIM (T:0.75)	0	Rp8.500
24-5	09181M33004-000	SHIM (T:0.70)	0	Rp8.500
24-4	09181M33003-000	SHIM (T:0.65)	0	Rp8.500
24-3	09181M33002-000	SHIM (T:0.60)	0	Rp8.500
24-2	09181M33001-000	SHIM (T:0.55)	0	Rp8.500
24-1	DISCONTINUE SUB: 09170M33421-050	SHIM (T:0.50)	0	-
24-8	09181M33007-000	SHIM (T:0.85)	0	Rp8.500
25	24400M68KB0-000 SUB: 24400M68K20-000	HUB ASSY,LOW SPEED SYNC	1	Rp1.344.500
26	24410M68K20-000	HUB ASSY,HIGH SPEED SYNC	1	Rp1.180.500
27	24415M67K00-000	PLATE,5TH SYNC HUB	1	Rp15.000
28	24420M67K20-000 SUB: 24420M79GA0-000	HUB ASSY,5TH SPEED SYNC	1	Rp1.482.500
29	24430-83E01-000	RING ASSY,2ND GEAR SYNC	1	Rp1.210.000
30	24431M67K02-000	RING,1ST GEAR SYNC	1	Rp160.000
31	24432M67K02-000	RING,HIGH SPEED SYNC	2	Rp141.000
32	24434M67K02-000	RING,5TH SPEED SYNC	1	Rp121.500
33	24441-60B00-000	SPRING,LOW SPEED SYNC	2	Rp22.000
34	24442-60B00-000	SPRING,HIGH SPEED SYNC	2	Rp21.000
35	24443-60B50-000	SPRING,5TH SPEED SYNC	2	Rp19.500
36	24452M68K00-000	CIRCLIP,LOW SPEED SYNC HUB	1	Rp8.500
37	24452M68K00-000	CIRCLIP,HIGH SPEED SYNC HUB	1	Rp8.500
38	24471-60B00-000	KEY,LOW SPEED SYNC	3	Rp29.000
39	24472-60B00-000	KEY,HIGH SPEED SYNC	3	Rp25.000
40	24473-72J00-000	KEY,5TH SPEED SYNC	3	Rp28.500
41	09380M19005-000 SUB: 09380M19004-000	CIRCLIP	1	Rp5.500
42	24550M68K00-000	SHAFT,T/M REVERSE GEAR	1	Rp72.500
43	24560-63B41-000	GEAR,REVERSE IDLER	1	Rp1.099.500
44	24565-60B00-000	BOLT,REVERSE SHAFT	1	Rp21.500
45	09161M16010-000	WASHER (16X24X3)	1	Rp5.500
46	09168M08030-000	GASKET (8.2X17X1)	1	Rp6.500
