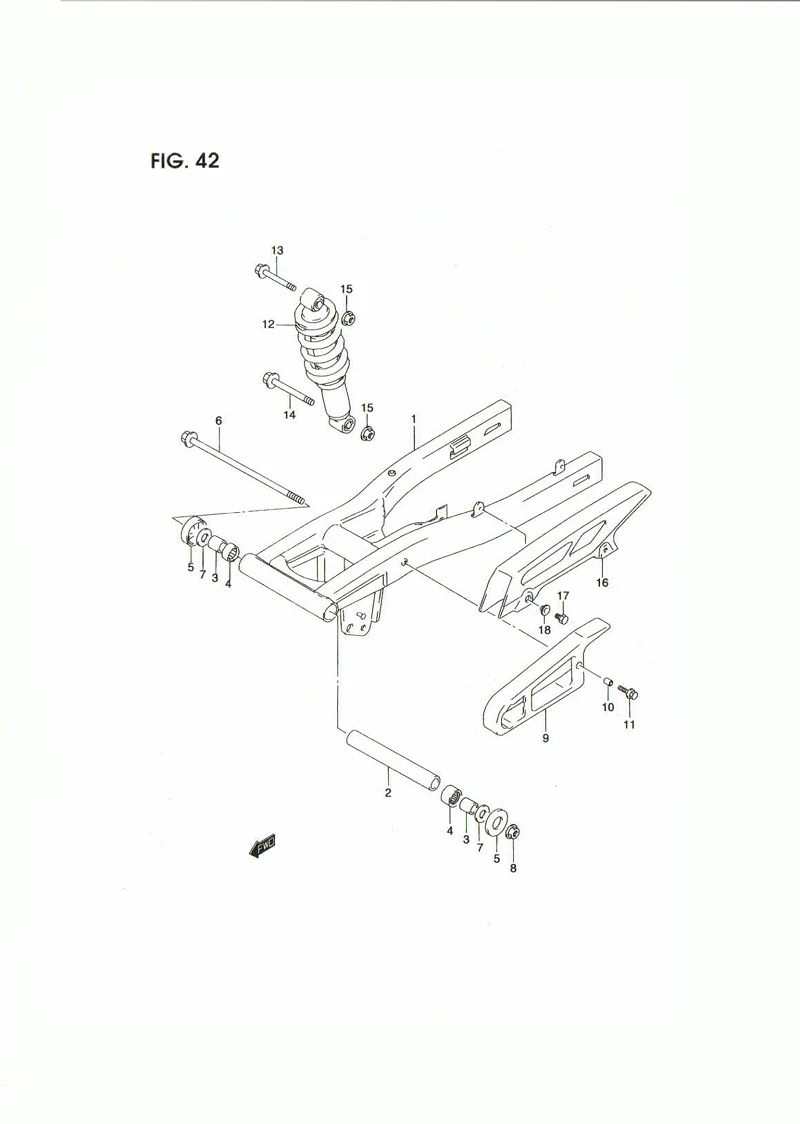

FIG. 42 REAR SWINGING ARM

FIG. 42 REAR SWINGING ARM
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 61100-21D40L000		 SWINGING ARM, REAR 1 -
2 61282-21D01-000 SPACER, CENTER 1 Rp163.000
3 61251-21D01-000 SPACER 2 Rp143.000
4 09263-17027-000 BEARING (17X24X20) 2 Rp125.000
5 61262-21D01-000
SUB: 61262-21D00-000		 DUST SEAL 2 Rp57.000
6 61211-21D00-000 SHAFT, REAR SWINGING ARM 1 Rp18.000
7 08211-12281-000 WASHER 2 Rp13.000
8 08319-31128-000 NUT 1 Rp7.500
9 61237-21D00L000 BUFFER, CHAIN TOUCH DEFENSE 1 -
10 09180-06255-000 SPACER (6.5X9X3.80) 1 Rp13.000
11 09116-06152-000 BOLT (6X20) 1 Rp12.500
12 62100-21D20-W6L
SUB: 62100-21D20L000		 ABSORBER ASSY, REAR SHOCK 1 Rp880.500
13 09103-10141-000 BOLT, UPPER (10X125) 1 Rp38.500
14 09103-10083-000 BOLT, LOWER (10X85) 1 Rp51.000
15 08319-3110A-000
SUB: 08319-31103-000		 NUT 2 Rp4.500
16 61311-21D00-000
SUB: 61311-21D00L000		 CASE, CHAIN 1 Rp33.500
17 09100-06157-000 BOLT (6X8) 2 Rp16.500
18 09169-06041-000 WASHER 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
