Satria 120

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 7 MUFFLERFIG. 23 STAND REAR BRAKEFIG. 24 FOOTRESTFIG. 42 REAR SWINGING ARM

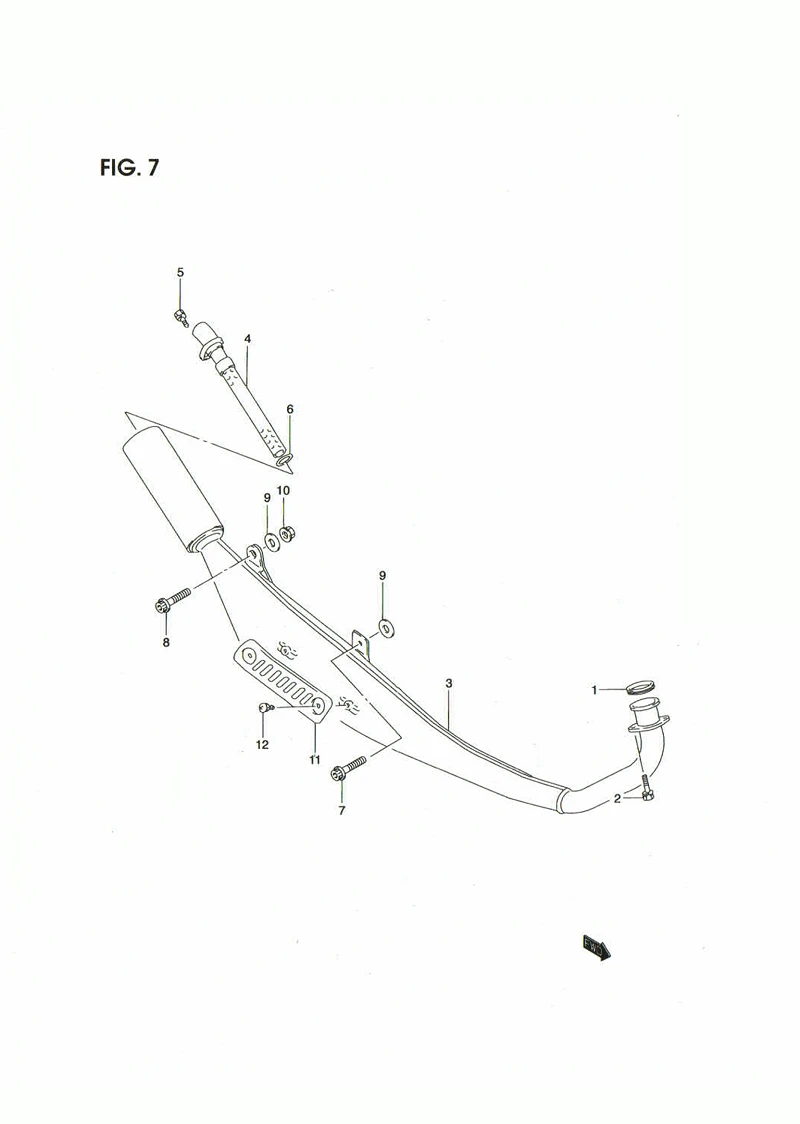

FIG. 7 MUFFLER

FIG. 7 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-35410-001
SUB: 14181-35410L000		 GASKET, EXHAUST PIPE 1 Rp8.500
2 09137-08007-000 BOLT 2 Rp17.500
3 DISCONTINUE
SUB: 14301-21DA0L000		 MUFFLER ASSY 1 -
4 DISCONTINUE
SUB: 14510-21D21L000		 .PIPE, BAFFLE 1 -
5 DISCONTINUE
SUB: 09137-05009-000		 .SCREW 1 -
6 09280-22016-000 .O RING 1 Rp30.500
7 07120-08357-000 BOLT 1 Rp17.500
8 07120-08357-000 BOLT 1 Rp17.500
9 08322-01087-000 WASHER 2 Rp13.500
10 08316-1008A-000
SUB: 08316-10083-000		 NUT 1 Rp3.500
11 DISCONTINUE
SUB: 14780-21D00L000		 COVER, MUFFLER 1 -
12 02112-3608A-000
SUB: 02112-36083-000		 SCREW 2 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
