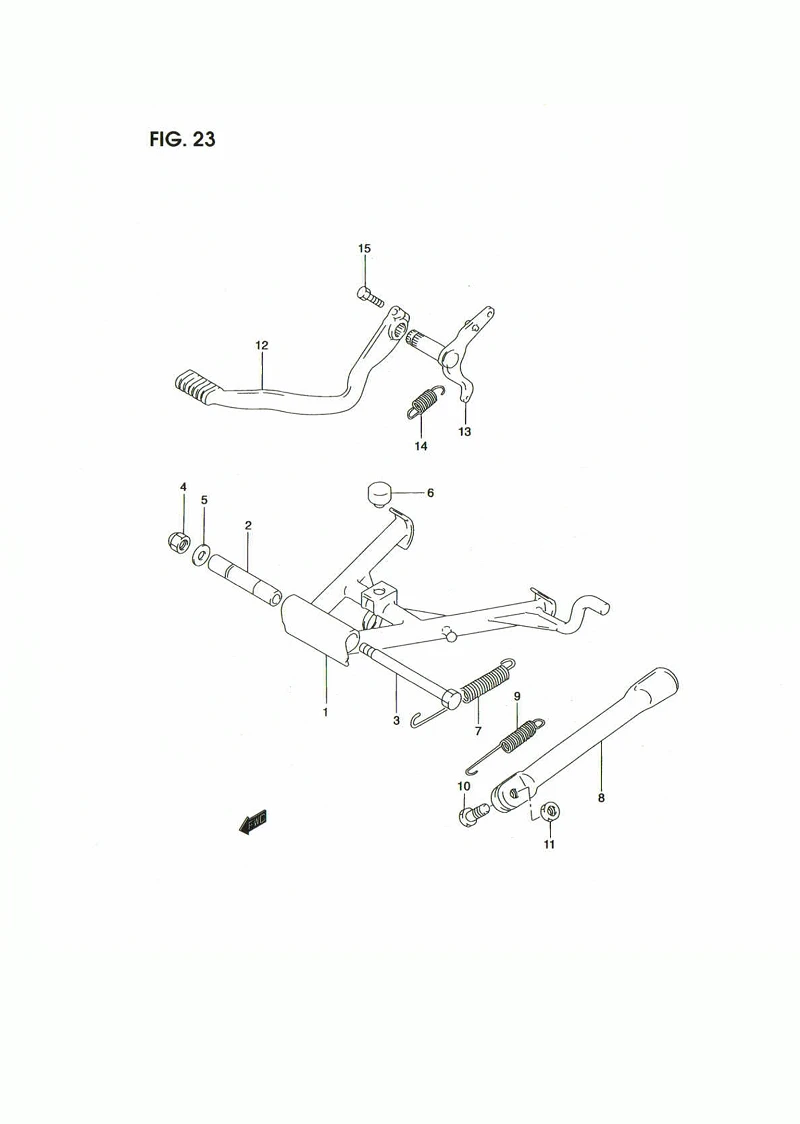

FIG. 23 STAND REAR BRAKE

FIG. 23 STAND REAR BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 42100-21D10L000		 STAND, CENTER 1 -
2 42211-03001L000 SPACER, CENTER STAND 1 -
3 42129-21D00-000 BOLT 1 Rp64.500
4 09159-10027-000 NUT 1 Rp19.500
5 09160-10005-000 WASHER 1 Rp11.000
6 09321-10001-000 CUSHION, CENTER STAND 1 Rp6.500
7 42191-21D00-000
SUB: 42191-21D00L000		 SPRING 1 Rp7.500
8 42310-21D10-000
SUB: 42310-21D10L000		 STAND, PROP 1 Rp43.000
9 09443-14022-000 SPRING 1 Rp5.000
10 09100-10287-000 BOLT 1 Rp21.000
11 09140-10043-000 NUT 1 Rp14.500
12 DISCONTINUE
SUB: 43110-21D80L000		 PEDAL, BRAKE 1 -
13 DISCONTINUE
SUB: 43120-21D20L000		 ARM, BRAKE PEDAL ROD 1 -
14 09443-14025-000 SPRING, BRAKE PEDAL 1 Rp3.500
15 01500-0625A-000
SUB: 01500-06253-000		 BOLT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
