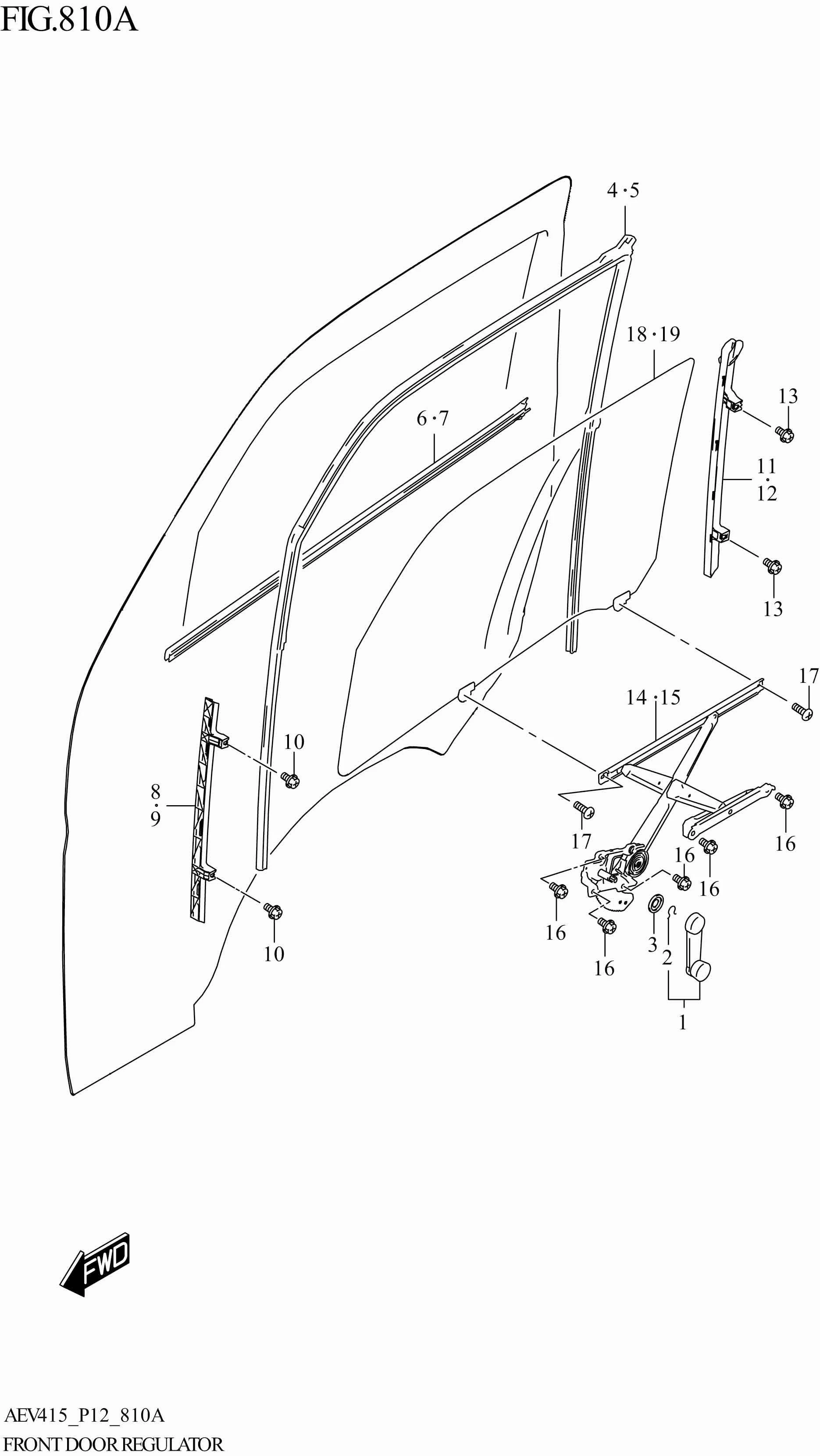

FIG. 810A - FRONT DOOR REGULATOR

FIG. 810A - FRONT DOOR REGULATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82960M60G00-5PK	HANDLE,DOOR WINDOW RGLTR (BLACK)	2	Rp18.500
2	78463-78000-000	SNAP	2	Rp15.000
3	82972-70B00-5PK SUB: 82972B70B00N5PK	ESCUTCHEON,WINDOW RGLTR HANDLE (BLACK)	2	Rp9.500
4	83661-52S00-000	RUN,FRONT DOOR GLASS,R	1	Rp178.500
5	83665-52S00-000	RUN,FRONT DOOR GLASS,L	1	Rp178.500
6	83811-52S00-000	WEATHERSTRIP,FRONT DOOR OUT,R	1	Rp65.500
7	83821-52S00-000	WEATHERSTRIP,FRONT DOOR OUT,L	1	Rp65.500
8	81710-52S00-000	SASH,FRONT DOOR FRONT,R	1	Rp38.000
9	81720-52S00-000	SASH,FRONT DOOR FRONT,L	1	Rp38.000
10	02162-0612A-000	SCREW (6X12)	4	Rp11.000
11	81730-52S00-000	SASH,FRONT DOOR REAR,R	1	Rp38.500
12	81740-52S00-000	SASH,FRONT DOOR REAR,L	1	Rp38.500
13	02162-0612A-000	SCREW (6X12)	4	Rp11.000
14	83410-52S00-000	REGULATOR ASSY,FRONT WINDOW,R	1	Rp199.000
15	83440-52S00-000	REGULATOR ASSY,FRONT WINDOW,L	1	Rp199.000
16	02162-0612A-000	SCREW (6X12)	10	Rp11.000
17	02112M7612A-000	SCREW (6X12)	4	Rp5.500
18	84501-52S00-000	GLASS,FRONT DOOR WINDOW,R	1	Rp254.000
19	84502-52S00-000	GLASS,FRONT DOOR WINDOW,L	1	Rp254.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
