NEW CARRY PICKUP TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 640A - SIDE BODY PANELFIG. 660A - ROOF PANELFIG. 717A - FRONT BUMPERFIG. 717B - FRONT BUMPERFIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWERFIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOXFIG. 741A - FLOOR CARPETFIG. 750A - COVER/CAPFIG. 760A - ROOF LININGFIG. 773A - OPENING TRIMFIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)FIG. 780A - EMBLEMFIG. 790A - WINDSHIELDFIG. 800A - FRONT DOOR PANELFIG. 810A - FRONT DOOR REGULATORFIG. 820A - FRONT DOOR LOCKFIG. 835A - MIRROR/SUNVISORFIG. 840A - SEAT BELTFIG. 848A - FRONT LH SEATFIG. 849A - FRONT RH SEATFIG. 865A - FUEL TANKFIG. 893A - TOOLFIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAPFIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANELFIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)

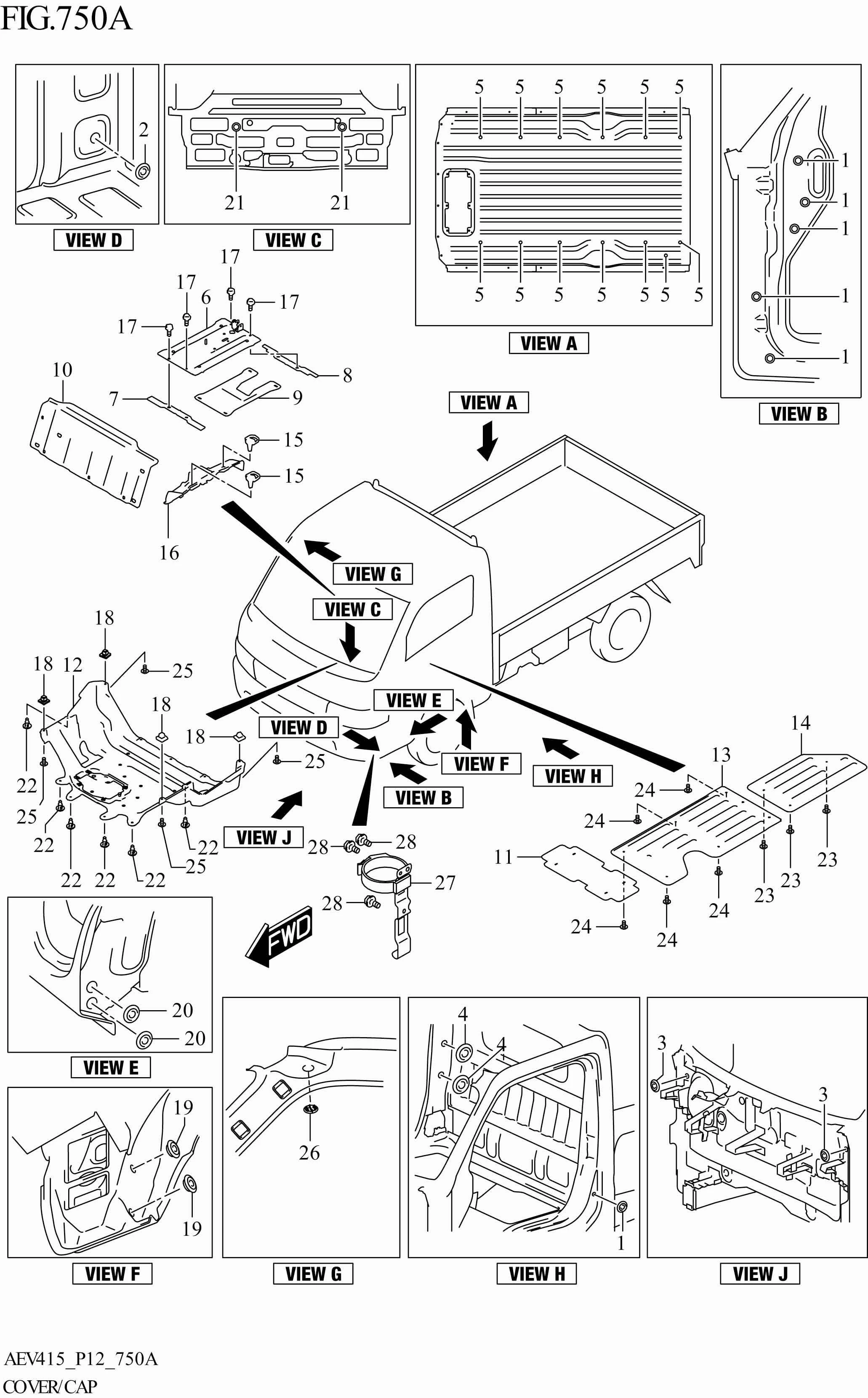

FIG. 750A - COVER/CAP

FIG. 750A - COVER/CAP
No No. Part Description Qty Price Per Pcs Remarks
1 09250-17001-000 CAP (OD:25.5) 12 Rp6.500
2 09250-17001-000 CAP (OD:25.5) 2 Rp6.500
3 09250M20031-000
SUB: 09250M20L02-000		 CAP (OD:28.5) 2 Rp4.500
4 09250-30002-000
SUB: 09250-30002L000		 CAP (OD:40) 4 Rp5.500
5 09250-30002-000
SUB: 09250-30002L000		 CAP (OD:40) 13 Rp5.500
6 75410-52S00-000 MEMBER,ENGINE ROOM CENTER 1 Rp380.500
7 75421-52S00-000 SEAL,ENGINE ROOM CTR MBR FRONT 1 Rp11.500
8 75422-52S00-000 SEAL,ENGINE ROOM CTR MBR REAR 1 Rp11.500
9 75423-52S00-000 INSULATOR,ENG ROOM CTR MEMBER 1 Rp354.500
10 75431-52S00-000 INSULATOR,ENG ROOM FRONT 1 Rp420.500
11 75432-52S00-000 INSULATOR,DECK FLOOR FRONT 1 Rp411.500
12 75441-52S00-000 COVER,ENG LOWER 1 Rp297.500
13 75444-52S00-000 PANEL,HEAT PROTECTOR FRONT 1 Rp237.500
14 75445-52S00-000 PANEL,HEAT PROTECTOR REAR 1 Rp154.000
15 75449-75H00-000 CLIP,SPARE TIRE COVER 2 Rp17.500
16 75451-52S00-000 COVER,JACK 1 Rp40.500
17 82131-50M00-000 BOLT 4 Rp18.000
18 09148-06006-000 NUT (M6) 4 Rp11.500
19 09250-17001-000 CAP (OD:25.5) 2 Rp6.500
20 09250-17001-000 CAP (OD:25.5) 4 Rp6.500
21 09250-30002-000
SUB: 09250-30002L000		 CAP (OD:40) 2 Rp5.500
22 09409-08327-000 CLIP (7.8X20) 6 Rp15.000
23 03141M0612A-000 SCREW 3 Rp4.500
24 03141M0612A-000 SCREW 5 Rp4.500
25 03541-0616A-000 SCREW 4 Rp13.500
26 09250-27001-000 CAP,FRONT PILLAR INR 2 Rp5.000
27 75630-73R00-000 BAND,FIRE EXTINGUISHER 1 Rp72.500
28 02162-0612A-000 SCREW (6X12) 3 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
