NEW CARRY PICKUP TYPE 2

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL FIG. 717A - FRONT BUMPER FIG. 717B - FRONT BUMPER FIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWER FIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOX FIG. 741A - FLOOR CARPET FIG. 750A - COVER/CAP FIG. 760A - ROOF LINING FIG. 773A - OPENING TRIM FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 800A - FRONT DOOR PANEL FIG. 810A - FRONT DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK FIG. 835A - MIRROR/SUNVISOR FIG. 840A - SEAT BELT FIG. 848A - FRONT LH SEAT FIG. 849A - FRONT RH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAP FIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANEL FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)

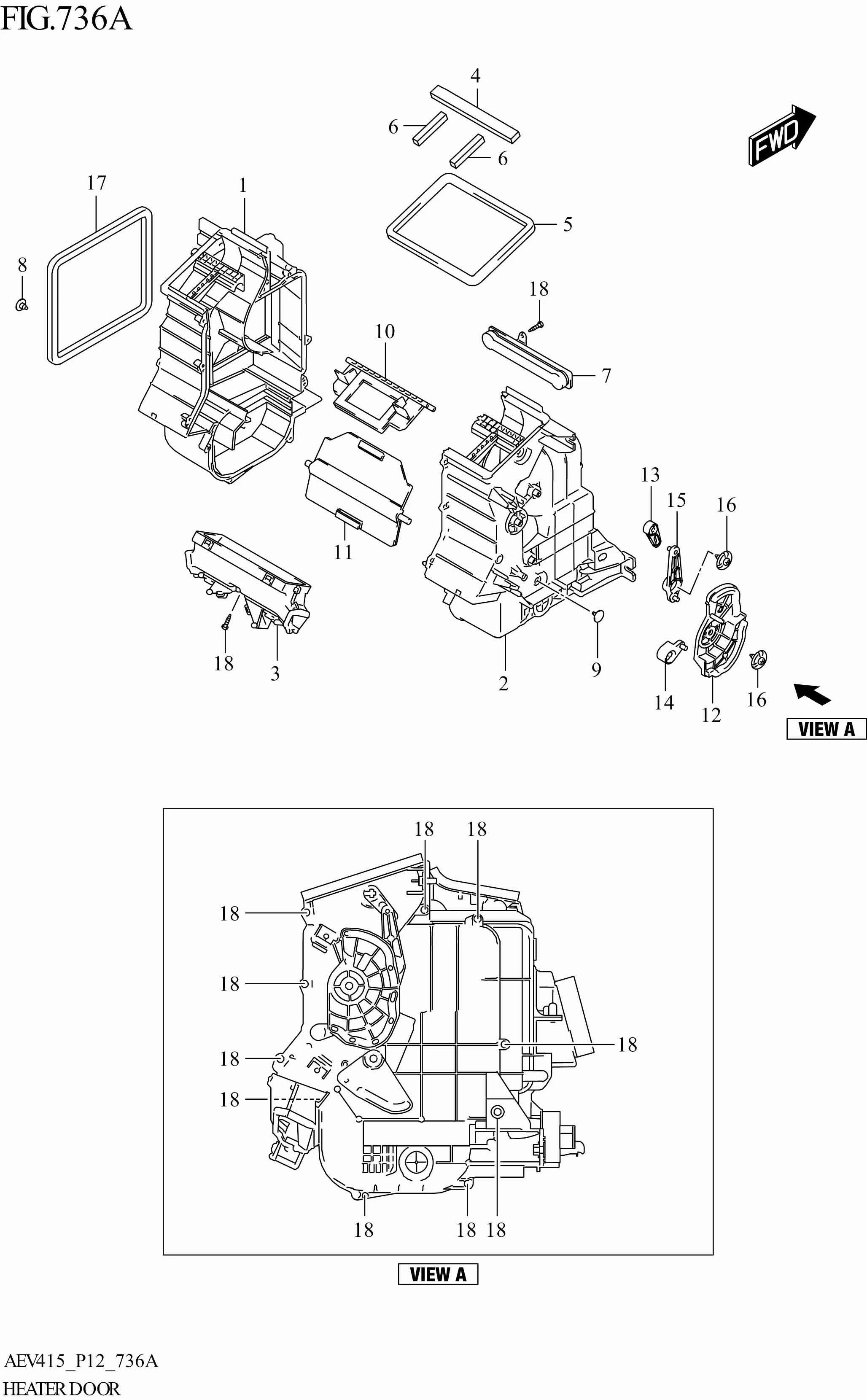

FIG. 736A - HEATER DOOR (W_MN_AC)

FIG. 736A - HEATER DOOR (W_MN_AC)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74111M53M00-000	CASE,HEATER ASST SIDE	1	Rp151.500
2	74112M53M00-000	CASE,HEATER,L	1	Rp158.000
3	74114M66L00-000	DUCT,AIR,FOOT DUCT	1	Rp88.000
4	74115M66L00-000	PACKING	1	Rp6.500
5	74116M66L00-000	PACKING	1	Rp12.500
6	74118M66L00-000	PACKING	2	Rp5.000
7	74123M52S00-000	COVER ASSY	1	Rp13.000
8	74165M52S00-000	PLUG	1	Rp6.000
9	74166M52S00-000	PLUG	1	Rp18.000
10	74171M66L00-000	DOOR,FACE DFR	1	Rp43.000
11	74172M66L00-000	DOOR,FOOT	1	Rp56.500
12	74180M52S00-000	LEVER S/ASSY	1	Rp21.000
13	74185M66L00-000	LEVER,FACE	1	Rp5.000
14	74186M66L00-000	LEVER,FOOT	1	Rp6.500
15	74192M66L00-000	LEVER,FACE-MID	1	Rp8.500
16	74183-82005-000	SCREW,LINK	2	Rp19.000
17	95464M53M00-000	PACKING,BLOWER HEATER JOINT	1	Rp24.500
18	03112-0416A-000	SCREW	12	Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
