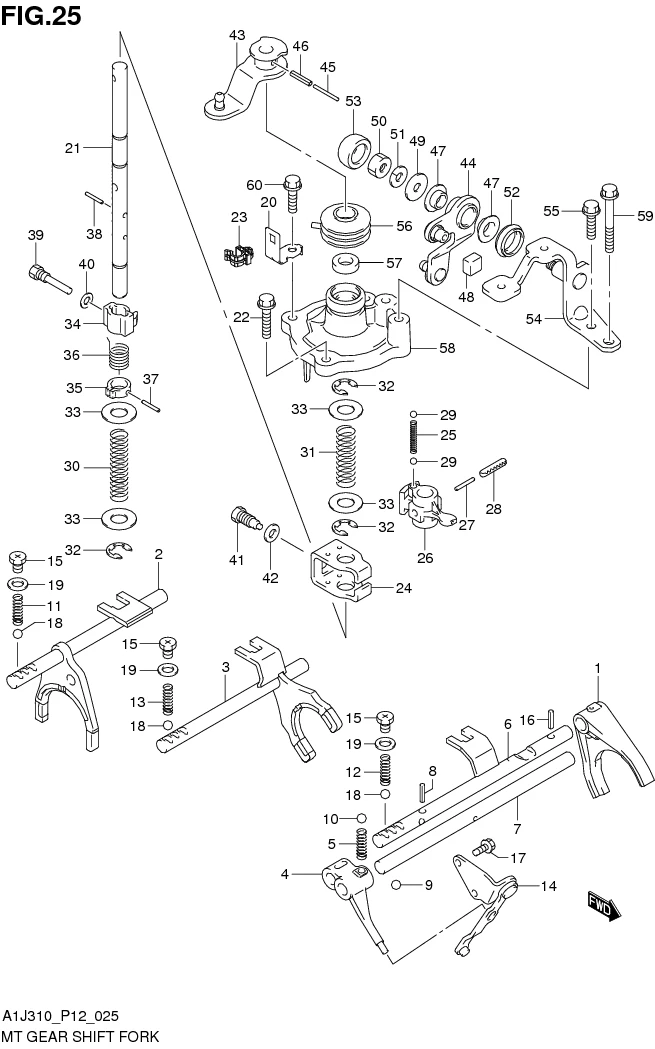

| 1 |
25231-70H00-000 |
FORK,5TH GEAR SHIFT |
1 |
Rp570.500 |
| |
| 2 |
25401-51K00-000 |
SHAFT, LOW SPEED GEAR SHIFT |
1 |
Rp1.084.500 |
| |
| 3 |
25402-51K00-000 |
SHAFT, HIGH SPEED GEAR SHIFT |
1 |
Rp1.119.000 |
| |
| 4 |
25251-65G00-000 |
ARM, REVERSE GEAR SHIFT |
1 |
Rp477.500 |
| |
| 5 |
25255M60B11-000
SUB: 25255M60B01-000 |
SPRING, REV GEAR SHIFT ARM |
1 |
Rp6.500 |
| |
| 6 |
25260-51K01-000 |
YOKE,5TH & REV GEAR SHIFT |
1 |
Rp790.000 |
| |
| 7 |
25431-70H00-000 |
SHAFT,5TH & REV GEAR SHIFT GUIDE |
1 |
Rp254.000 |
| |
| 8 |
DISCONTINUE
SUB: 09205-04015-000 |
SPRING PIN (4.5X20) |
1 |
- |
| |
| 9 |
06111-10003-000 |
BALL |
1 |
Rp10.500 |
| |
| 10 |
06111-10003-000 |
BALL |
1 |
Rp10.500 |
| |
| 11 |
25415-60B02-000 |
SPRING, LOW SPEED LOCATING |
1 |
Rp29.000 |
| |
| 12 |
25415-60B02-000 |
SPRING,5TH & REV LOCATING |
1 |
Rp29.000 |
| |
| 13 |
25425-60B10-000 |
SPRING, HIGH SPEED LOCATING |
1 |
Rp30.000 |
| |
| 14 |
25460-65G00-000 |
LEVER, REVERSE GEAR SHIFT |
1 |
Rp166.000 |
| |
| 15 |
09128M10001-000
SUB: 09128-10002-000 |
BOLT (10X9) |
3 |
Rp5.500 |
| |
| 16 |
DISCONTINUE
SUB: 09205-04015-000 |
SPRING PIN (4.5X20) |
1 |
- |
| |
| 17 |
01570-0820B-000
SUB: 01570-0820A-000 |
BOLT |
2 |
Rp31.000 |
| |
| 18 |
06111-10003-000 |
BALL |
3 |
Rp10.500 |
| |
| 19 |
08322-0110B-000
SUB: 08322-0110A-000 |
WASHER |
3 |
Rp4.500 |
| |
| 20 |
24726-67LA0-000
SUB: 24726B67LA0N000 |
BRACKET, BREATHER HOSE |
1 |
Rp17.000 |
| |
| 21 |
25571M75J00-000 |
SHAFT, GEAR SHIFT & SELECT |
1 |
Rp64.000 |
| |
| 22 |
09103-08419-000 |
BOLT (8X25) |
1 |
Rp16.000 |
| |
| 23 |
09403-11314-000 |
CLAMP |
1 |
Rp24.500 |
| |
| 24 |
25311M68K01-000 |
PLATE, GEAR SHIFT INTERLOCK |
1 |
Rp72.500 |
| |
| 25 |
25312M68K00-000 |
SPRING, GEAR SHIFT INTERLOCK |
1 |
Rp7.500 |
| |
| 26 |
25541M68K40-000 |
LEVER, GEAR SHIFT & SELECT |
1 |
Rp144.000 |
| |
| 27 |
09205M03016-000 |
SPRING PIN (3.5X28) |
1 |
Rp4.500 |
| |
| 28 |
09205M06022-000
SUB: 09205M06004-000 |
SPRING PIN (6X28) |
1 |
Rp6.500 |
| |
| 29 |
06111M07004-000 |
BALL |
2 |
Rp3.000 |
| |
| 30 |
25576M75J01-000 |
SPRING,1ST &2ND SELECT |
1 |
Rp5.000 |
| |
| 31 |
25577M75J00-000 |
SPRING,5TH & REVERSE SELECT |
1 |
Rp6.500 |
| |
| 32 |
09383M12002-000 |
E RING |
3 |
Rp12.500 |
| |
| 33 |
08212M14301-000 |
WASHER |
4 |
Rp4.500 |
| |
| 34 |
25581M86JA1-000 |
CAM,5TH & REVERSE GEAR SHIFT |
1 |
Rp40.000 |
| |
| 35 |
25582M75J00-000 |
GUIDE,5TH & REV GEAR SHIFT CAM |
1 |
Rp12.000 |
| |
| 36 |
25583M60B50-000 |
SPRING, CAM GUIDE RETURN |
1 |
Rp6.500 |
| |
| 37 |
09205M03035-000 |
SPRING PIN (3X22) |
1 |
Rp6.500 |
| |
| 38 |
DISCONTINUE
SUB: 09205-04015-000 |
SPRING PIN (4.5X20) |
1 |
- |
| |
| 39 |
25584-51K00-000
SUB: 25584B51K00N000 |
BOLT,5TH TO REV INTLK GUIDE |
1 |
Rp13.500 |
| |
| 40 |
08322M0108A-000
SUB: 08322-0108A-000 |
WASHER |
1 |
Rp5.500 |
| |
| 41 |
DISCONTINUE
SUB: 25321-86G00-000 |
BOLT, GEAR SHIFT INTERLOCK |
1 |
- |
| |
| 42 |
08322-0110B-000
SUB: 08322-0110A-000 |
WASHER |
1 |
Rp4.500 |
| |
| 43 |
25610M68K41-000 |
LEVER, SHIFT CABLE |
1 |
Rp119.500 |
| |
| 44 |
25620M68K01-000 |
LEVER, SELECT CABLE |
1 |
Rp77.000 |
| |
| 45 |
09205M03049-000
SUB: 09205M03037-000 |
SPRING PIN (3X25) |
1 |
Rp6.500 |
| |
| 46 |
09205M06016-000 |
SPRING PIN (6X25) |
1 |
Rp4.500 |
| |
| 47 |
25558M75J00-000 |
BUSH, SELECT LEVER BOSS |
2 |
Rp6.500 |
| |
| 48 |
25559M75J01-000 |
BUSH, SELECT LEVER SHAFT |
1 |
Rp12.500 |
| |
| 49 |
09160-08151-000
SUB: 09160M08151-000 |
WASHER (8.5X26X1.6) |
1 |
Rp16.500 |
| |
| 50 |
08310-0008A-000
SUB: 08310M0008A-000 |
NUT |
1 |
Rp13.000 |
| |
| 51 |
08321M01083-000
SUB: 08321M0108A-000 |
WASHER |
1 |
Rp11.000 |
| |
| 52 |
25624M74B00-000 |
BOOT, SELECT LEVER INSIDE |
1 |
Rp6.500 |
| |
| 53 |
25625M68K00-000
SUB: 25625M74B00-000 |
BOOT, SELECT LEVER OUTSIDE |
1 |
Rp6.000 |
| |
| 54 |
25630M68K02-000
SUB: 25630M68K03-000 |
BRACKET, SELECT & CLUTCH |
1 |
Rp92.000 |
| |
| 55 |
01550-0825A-000
SUB: 01550B0825AN000 |
BOLT |
1 |
Rp3.500 |
| |
| 56 |
25651M68K00-000
SUB: 25651M74B00-000 |
BOOT, SHIFT & SELECT SHAFT OIL |
1 |
Rp10.500 |
| |
| 57 |
09283M14005-000 |
OIL SEAL (14X22X6) |
1 |
Rp9.000 |
| |
| 58 |
25573M75J01-000 |
CASE, GEAR SHIFT GUIDE |
1 |
Rp127.000 |
| |
| 59 |
09103-08366-000 |
BOLT (8X45) |
1 |
Rp25.500 |
| |
| 60 |
01550-0825A-000
SUB: 01550B0825AN000 |
BOLT |
2 |
Rp3.500 |
| |
