Transmission - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

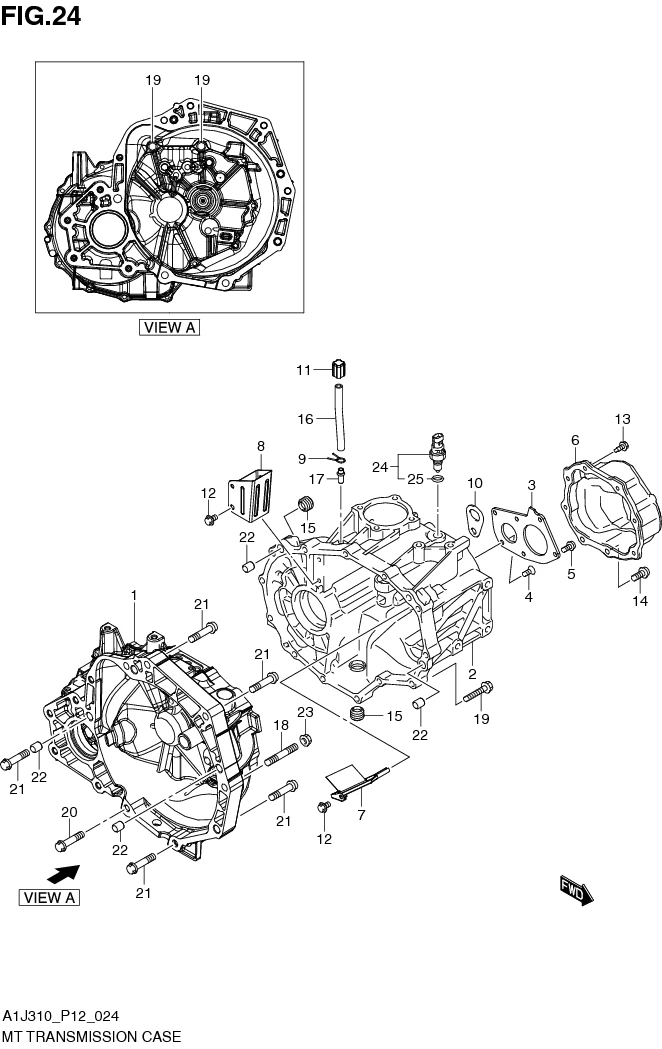

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24711-67LA0-000 SUB: 24711B67LA0N000	CASE, TRANSMISSION RH	1	Rp1.442.500
2	24721-67LA0-000 SUB: 24721B67LA0N000	CASE, TRANSMISSION LH	1	Rp2.759.500
3	24725-65G40-000	PLATE, T/M LH CASE	1	Rp186.500
4	24728-63J00-000	SCREW, T/M LH CASE PLATE	1	Rp29.500
5	24728-65G60-000	SCREW, T/M LH CASE PLATE	5	Rp31.000
6	24730-70H01-000 SUB: 24730B70H01N000	COVER, TRANSMISSION SIDE	1	Rp110.500
7	24810-67LA0-000 SUB: 24810B67LA0N000	GUTTER, INPUT OIL	1	Rp10.500
8	24815-67LA0-000 SUB: 24815B67LA0N000	PLATE, BREATHER CASE	1	Rp12.000
9	24826-67LA0-000 SUB: 24826B67LA0N000	CLIP, BREATHER HOSE	1	Rp11.000
10	24855-60K00-000	HOOK, TRANSMISSION	1	Rp8.500
11	27991-77M00-000 SUB: 27991B77M00N000	PLUG, BREATHER HOSE	1	Rp6.500
12	09103-06285-000	BOLT (6X12)	3	Rp9.000
13	09135-06027-000	BOLT (6X12)	6	Rp15.000
14	DISCONTINUE SUB: 09135-08007-000	BOLT (8X16)	2	-
15	09246-16021-000 SUB: 09246-16010-000	PLUG (L:15)	2	Rp48.000
16	09352-70119-600 SUB: 09352-70113-600	HOSE (7X11X600)	1	Rp86.500	L:600->110
17	09364-08004-000	UNION	1	Rp13.000
18	01421-1045A-000	STUD BOLT	1	Rp29.500
19	01550-0840A-000 SUB: 01550B0840AN000	BOLT	13	Rp3.500
20	01550-1040A-000 SUB: 01550B1040AN000	BOLT	1	Rp7.000
21	01550-1050A-000	BOLT	5	Rp6.000
22	04211M13189-000 SUB: 04211M13149-000	PIN	4	Rp9.000
23	08316-1010A-000 SUB: 08316B1010AN000	NUT	1	Rp3.500
24	37610-76G10-000	SWITCH ASSY, BACK UP LAMP	1	Rp166.500
25	09280-11002-000	•O RING (D:1.9,ID:11.4)	1	Rp10.500
