Preview Engine Transmission Electrical Suspension Body

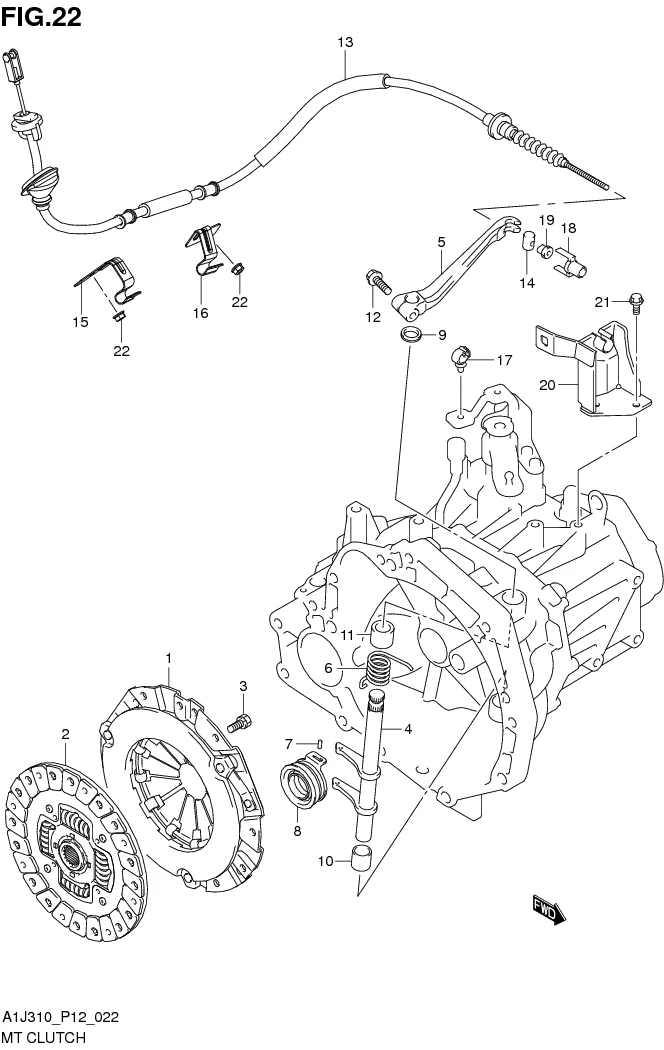

No	No. Part	Description	Qty	Price Per Pcs
1	22100-67K20-000 SUB: 22100B67K20N000	COVER ASSY, CLUTCH	1	Rp419.500
2	22400-67K20-000 SUB: 22400B67K20N000	DISC, CLUTCH	1	Rp446.000
3	01550-0816A-000 SUB: 09117M08096-000	BOLT (8X16)	6	Rp6.000
4	23260-63J01-000	SHAFT, CLUTCH RELEASE	1	Rp370.000
5	23266M68K02-000	ARM, CLUTCH RELEASE	1	Rp234.500
6	23269-51K00-000	SPRING, RELEASE SHAFT RETURN	1	Rp39.500
7	09205-03019-000	SPRING PIN (3X10)	1	Rp9.500
8	09269-28004-000 SUB: 09269B28004N000	BEARING (28X58X22)	1	Rp240.500
9	09284M16004-000	OIL SEAL (16X24X5)	1	Rp19.500
10	23264M60B00-000 SUB: 09300M16009-000	BUSH (16X20X20)	1	Rp23.500
11	23264M60B20-000 SUB: 09300M16010-000	BUSH (16X24X19)	1	Rp25.000
12	01550-0830A-000 SUB: 01550B0830AN000	BOLT	1	Rp4.000
13	23710-67L21-000 SUB: 23710B67L21N000	CABLE ASSY, CLUTCH RH	1	Rp157.000
14	23913M68K00-000	PIN, CLUTCH CABLE JOINT	1	Rp8.500
15	23915-67L20-000 SUB: 23915B67L20N000	CLAMP, CLUTCH CABLE NO.1	1	Rp11.000
16	23916-67L20-000 SUB: 23916B67L20N000	CLAMP, CLUTCH CABLE NO.2	1	Rp11.000
17	23917-67L00-000	CLAMP	1	Rp21.500
18	23922-76G00-000	CAP, CLUTCH CABLE JOINT LOCK	1	Rp19.500
19	09150-06010-000 SUB: 09150B06010N000	NUT	1	Rp4.500
20	23910M67L00-000	BRACKET, CLUTCH CABLE	1	Rp182.500
21	01550-0816A-000 SUB: 01550B0816AN000	BOLT	2	Rp6.000
22	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000
